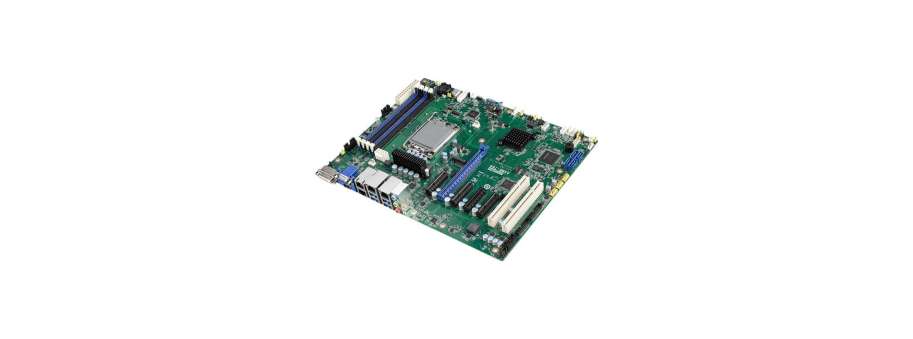

Серверная материнская плата LGA 1700 Intel® Core™ ATX 12-го поколения с 4 DDR5, 5 PCIe (1 разъем Gen5, 3 разъема Gen4, 1 разъем Gen3), 7 USB 3.2, 4 SATA3, 4/2 локальными сетями и IPMI Advantech ASMB-788
Цены и наличие
Код товара | Описание товара | Цена с НДС | Наличие на складе |
---|---|---|---|
ASMB-788G2-00A1 | Промислова серверна материнська плата Advantech LGA 1700 ATX Server Board W680 GbEx2 | 37 763,2 | |
ASMB-788G4-00A1 | Промислова серверна материнська плата Advantech ASMB-788G4 LGA 1700 ATX Server Board W680 GbEx4 | 41 968,2 |
- Процессоры Intel® Core™ i9/i7/i5/i3 12-го поколения LGA 1700 с набором микросхем W680
- DDR5 ECC/Non-ECC 4400/4000/3600 МГц UDIMM до 128 ГБ
- Один слот PCIe x16 (5-го поколения) и четыре слота PCIe x4 (3 x Gen4 и 1 x Gen3)
- Три дисплея — порты DVI-D, VGA и HDMI 2.0
- Четыре порта SATA 3 и семь портов USB 3.2
- Один M.2 2280 (PCIe x4)
- Диапазон рабочих температур 0 ~ 60 °C (32 ~ 140 °F)
Дополнительная информация
Form Factor |
ATX form factor |
Processor System |
|
Socket | Intel® LGA 1700 |
CPU type | Intel® 12th Gen. Core™ i9/i7/i5/i3 series processors (TDP up to 125W) |
Core Logic |
|
Chipset | Intel W680 chipset |
Memory |
|
Total slots | 4 x (Dual Channel) |
Max. capacity | 128 GB |
Memory type | DDR5 ECC/Non-ECC 4400/4000/3600 MHz UDIMM (288-pin) |
Memory size | 8 GB, 16 GB, 32GB |
Expansion Slots |
|
Total PCI/PCIe slots | 7 |
Slot location 1 | PCI slot |
Slot location 2 | PCI slot |
Slot location 3 | PCIe x4 slot (Gen4 x4 link) |
Slot location 4 | PCIe x4 slot (Gen3 x4 link) |
Slot location 5 | PCIe x4 slot (Gen4 x4 link) |
Slot location 6 | PCIe x16 slot (Gen5 x16 link) |
Slot location 7 | PCIe x4 slot (Gen4 x4 link) |
Graphics |
|
Controller | Intel® HD Graphics |
VRAM | 1 GB maximum shared memory with 2 GB and above system memory installed |
Storage |
|
SATA controller | Intel® W680: 4 SATA 3 6 Gb/s ports with Intel Rapid Storage Technology support (for Windows only) (Supports software RAID 0, 1, 10 & 5) |
SAS controller | - |
Networking |
|
Interface | 10/100/1000 Mbps |
Controller | GbE LAN1: Intel® I219; GbE LAN 2~4: Intel I210-AT |
Connector | RJ-45 x 2 for G2 version; RJ-45 x 4 for G4 version |
Onboard I/O Connector |
|
Printer Port connector | - |
PSU connector | 24-pin SSI power connector + 8-pin SSI 12V power connector |
USB connector | 1 x USB 3.2 Gen 1 (2 ports), 3 x USB 2.0 (6 ports), 1 x USB 3.2 Gen 1 Type-A |
M.2 connector | 1 x M.2 2280 (PCIe) |
Fan header | 5 x (4-pin) |
SMBus | 1 |
Chassis intruder | 1 |
Front LAN LED | 2 |
Serial port header | 2 x RS-232 dual-port (4 ports), 1 x RS-232 single-port |
Audio connector | 1 x (ALC 888S) |
PS/2 KB/Mouse | - |

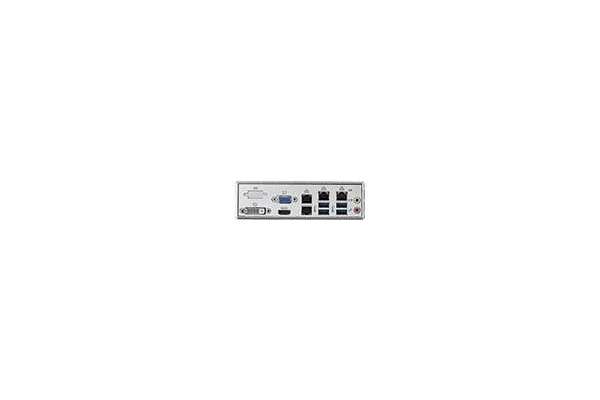

Rear I/O Connector |
|
External serial port | 1 (via COM cable in the package) |
External USB port | 4 x (USB 3.2 Gen 2) |
VGA port | 1 x (Resolution up to 1920 x 1200 @ 60 Hz) |
DVI port | 1 x (Resolution up to 1920 x 1200 @ 60 Hz) |
HDMI port | 1 x (Resolution up to 4096 x 2160 @ 60 Hz) |
RJ-45 | 2 x for G2 version; 4 for G4 version |
Audio connector | 2 x (Mic-in, Line-out) |
PS/2 KB/Mouse | - |
Watchdog Timer |
|
Output | System reset |
Interval | Programmable 1 ~ 255 sec |
Power Requirement |
|
Power On (Core i5-12500 3.0GHz DDR5 4800 16G*4) |
3.3 V 5 V 12 V 12V_8P 5 VSB 2.05A 1.69A 0.36A 13A 0.10A |
Environment |
|
Temperature |
|
Humidity |
|
Physical Characteristics/ Dimensions | 304.8 x 244 mm (12 x 9.6 in) |
