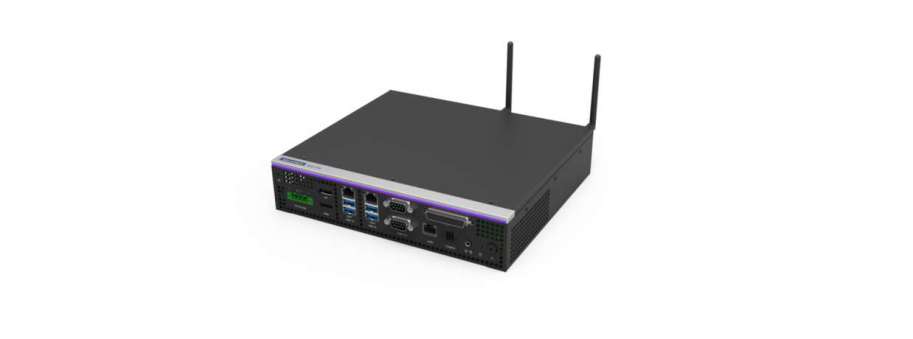

Система ИИ Advantech AIR-310

ПК для промышленных систем Искусственного интеллекта на процесорах Intel® Core™ 14-го поколения i3/i5/i7/i9 LGA1700 MXM GPU Advantech AIR-310

• Поддержка процессоров Intel® 14-го поколения Core™ i3/i5/i7/i9 мощностью до 65 Вт
• Поддержка памяти DDR5 SO-DIMM до 64 ГБ
• Двойной дисплей: HDMI + DP
• Поддержка карты GPU MXM 3.1 Type A мощностью до 60 Вт
• Поддержка 2 x 2.5GbE, 16-битного DIO, 2 x CANBus, TPM 2.0
• Квалифицирован для Edge AI SDK

CPU	i9-14900/i9-14900T	i7-14700/i7-14700T	i5-14500/i5-14500T	i3-14100/i3-14100T
Frequency	5.8 GHz/5.5 GHz	5.4 GHz/5.2 GHz	5.0 GHz/4.8 GHz	4.7 GHz/4.4 GHz
TDP	65W/35W	65W/35W	65W/35W	60W/35W

Дополнительная информация

Processor System
Chipset	H610E
BIOS	AMI EFI 256Mbit
Memory
Technology	DDR5 5600 MHz
Max. Capacity	64 GB
Socket	2 x 262-pin SO-DIMM (Non-ECC)
GPU
MXM3.1 Type A	Compatible with Intel Arc A370M/Quadro® A2000
Cores	8 Xe-cores/ 2560 CUDA® cores
FP32 Performance (TFLOPS)	4.198 / 8.25
Memory	GDDR6 4 GB / GDDR6 8GB
Display
Chipset	Intel® UHD Graphics 770
Graphic Engine	Direct x 12, OpenGL 4.5 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
DP	1 x DP 1.2, 4096x2160@60Hz
HDMI	1 HDMI port, HDMI 2.0 for HD video playback, 4096x2160@60Hz
Ethernet
LAN1	10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2, 3	10/100/1000/2500 Mbps Intel I226 GbE, support Wake On Lan
Audio
Interface	Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch)
Others
Watch dog Timer	255-level timer interval, setup by software
TPM	TPM 2.0
I/O Interface
Serial Port	2 x RS-232/422/485 port with auto flow control
USB	4 x USB 3.2 (Gen 1)
DIO	16bit DIO
CANBus	2
Expansions
M.2	1 x 2230 E key for WiFi #1
Storage
SSD	1 x 2.5" SATAIII hard drive Bay with Max Height 7mm
NVME	1 x M.2 M Key 2280(PCIe Gen3 x4, SATA)
Software Support
Microsoft Windows	Windows 10
Linux	By Project Support
Power Requirements
Power Type	AT/ATX
Power Input Voltage	12-24V
Power Supply	AC to DC, 230W (Optional)
Power Consumption (CPU/Memory Only)
Typical	TBC
Max	TBC
Mechanical
Mounting	Desk mounting
Dimensions (W x H x D)	215 x 220 x 55 mm
Weight	TBC
Environment
Operating Temperature	Without MXM and extended temp peripherals: 0 ~ 60 °C with 0.7m/s air flow With MXM and extended temp peripherals: 0 ~ 50 °C with 0.7m/s air flow
Storage Temperature	-40 ~ 85 °C
Relative Humidity	95% @ 40 °C (non-condensing)
EMC	CE/FCC Class B, CCC, BSMI
Safety	CB, UL, CCC, BSMI
