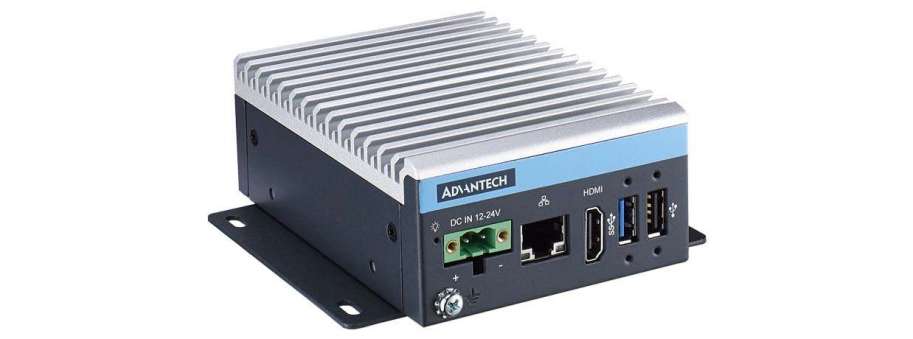

Система искусственного интеллекта (Lite) на базе NVIDIA® Jetson Nano™ Advantech MIC-710AIL
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| MIC-710AIL-00B1 | Компактний комп'ютер Advantech MIC-710AIL з Jetson Nano: Quad Core ARM Cortex A57, Maxwell GPU, 128 CUDA core, 4Гб LPDDR4, 16Гб eMMC, HDMI, 1xGbE LAN, 2xUSB 3.0, 1xUSB 2.0, MicroUSB, MicroSD, M.2 2280, NanoSIM, MiniPCIe, 12-24VDC-in | 38 035,4 | |
| MIC-710AIL-00B2 | Компактний комп'ютер Advantech MIC-710AIL з Jetson Nano: Quad Core ARM Cortex A57, Maxwell GPU, 128 CUDA core, 4Гб LPDDR4, 16Гб eMMC, HDMI, 1xGbE LAN, 2xUSB 3.0, 1xUSB 2.0, MicroUSB, M.2 2280, NanoSIM, MiniPCIe, 12-24VDC-in, NO SD | 38 035,4 |
- Безвентиляторный и сверхкомпактный дизайн
- Встроенный NVIDIA® Jetson Nano™
- 1 x M.2 2280 NVMe для хранения
- ОС Linux с BSP (пакет поддержки платы)
- Поддерживает обученные модели глубокого обучения
- Широкий диапазон рабочих температур
Дополнительная информация
Processor System |
|
| CPU | Quad Core ARM Cortex A57 (Max. Operating Frequency: 1.43GHz) |
| GPU | Maxwell GPU, 128 CUDA core, Performance up to 472 GFLOPS (FP16) (Max. Frequency: 921MHz) |
| Memory | 4GB LPDDR4 |
| Flash | 16G of eMMC |
Ethernet |
|
| Interface | RJ-45 |
| Controller | On-module embedded |
| Speed | 1 x Gigabit Ethernet (10/100/1000 Mbps) |
I/O |
|
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| USB |
|
| OTG USB (External) | 1 x Micro USB |
| DI/DO | - |
| SIM card | 1 x Nano SIM |
Expansion |
|
| MiniPCIe | 1 x Full size MiniPCIe* (PCIex1+USB2.0) |
Storage |
|
| M.2 | 1 x M.2 2280 NVMe* (PCIex1 M Key) |
| SD card | 1 x Micro SD |
Power |
|
| Power Supply | Power Adaptor: 12-24V, 4A-2A |
| Power Type | Terminal Block 2 Pin |
Environment |
|
| Operational Temperature | -10 ~ 60 °C with 0.7 m/s air flow |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
Mechanical |
|
| Dimensions (W x D x H) | 85 x 118 x 45 (mm) |
| Weight | 1.2 kg |
| Installation | Desktop/DIN RAIL |
Operating System |
|
| Linux | Ubuntu 18.04 with JetPack |
| Certifications | CB/UL/CE/FCC/BSMI/CCC (No RED certification) |
