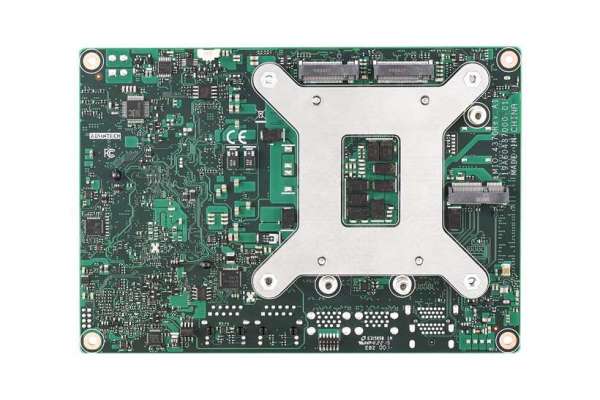

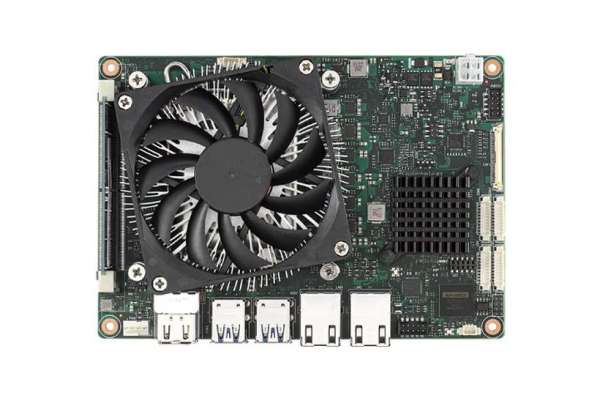

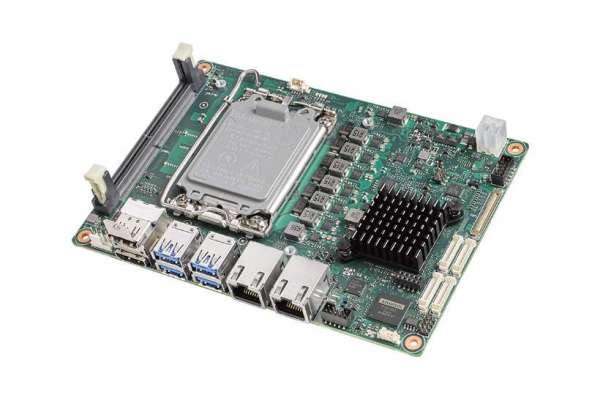

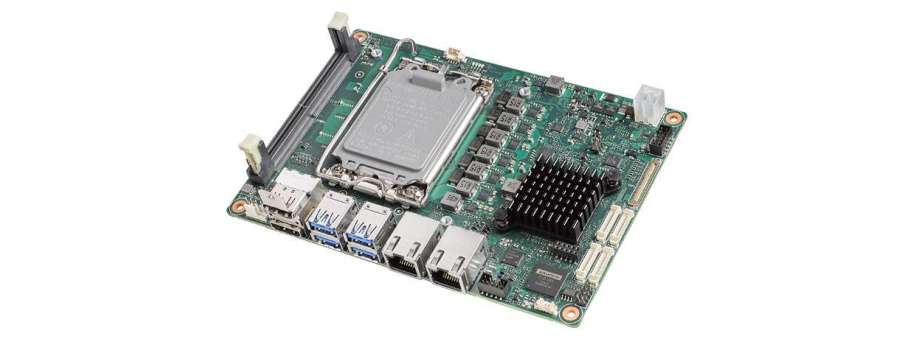

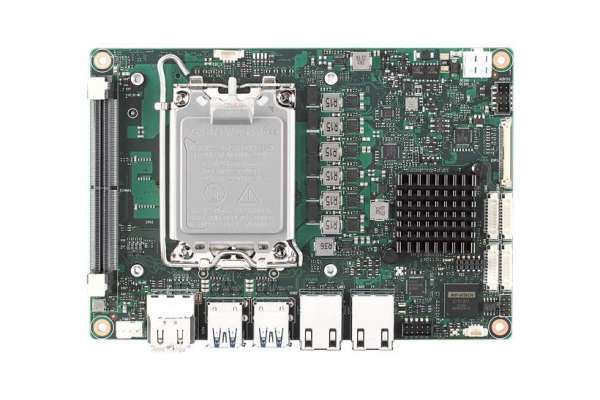

Однаплатный промышленный ПК на процессорах Intel® Core™ 12-го/13-го поколений (серии Alder Lake-S/Raptor Lake-S, сокет LGA1700) Advantech MIO-4370
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| MIO-4370R-00A1 | Intel ADL-S/RPL-S, LGA1700, R680E, M key+M Key | 31 125,7 | |
| MIO-4370H-00A1 | Intel ADL-S/RPL-S, LGA1700, H610E, M Key+B Key | 25 865,1 |
- Процессор Intel® Core™ 13-го/12-го поколения до 24 ядер, TDP 35 Вт

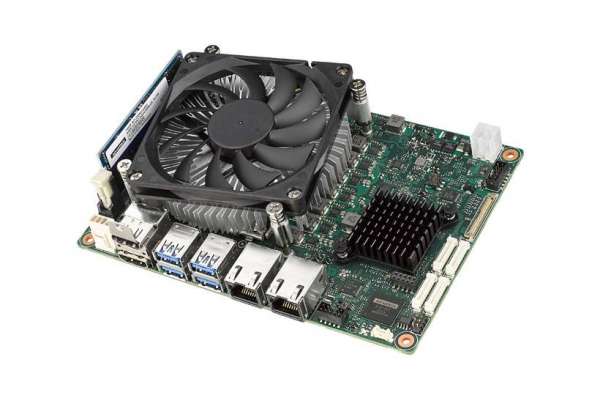

- Высокая масштабируемость благодаря типу сокета CPU (LGA1700) и поддержке стандартного процессорного кулера
- DDR5 4800 до 32 ГБ + 3 одновременных дисплея: Dual HDMI + eDP
- Двойной высокоскоростной 2.5G Ethernet с TSN, 2x COM, CANbus, TPM
- 3 расширения: Двойной M.2 M-Key (поддержка NVMe), M.2 E-Key
- Поддержка Windows 10 LTSC и Ubuntu 22.04 LTS, встроенных программных API, WISE-DeviceOn
| Processor | i9-13900TE | i9-12900TE | i7-13700TE | i7-12700TE | i5-13500TE | i5-12500TE | i3-13100TE | i3-12100TE |
| Max. Frequency (P-core) | 5.0 GHz | 4.8 GHz | 4.8 GHz | 4.6 GHz | 4.5 GHz | 4.3 GHz | 4.1 GHz | 4.0 GHz |
| Base Frequency (P-core) | 1.0 GHz | 1.1 GHz | 1.1 GHz | 1.4 GHz | 1.3 GHz | 1.9 GHz | 2.4 GHz | 2.1 GHz |
| Cores(P+E)/Threads | 24C (8+16) / 32T | 16C (8+8) / 24T | 16C (8+8) / 24T | 12C (8+4) / 20T | 14C (6+8) / 20T | 6C (6+0) / 12T | 4C (4+0) / 8T | 4C (4+0) / 8T |
| LLC | 36MB | 30MB | 30MB | 25MB | 24MB | 18MB | 12MB | 12MB |
| CPU TDP | 35W | 35W | 35W | 35W | 35W | 35W | 35W | 35W |
| Graphics | ||||||||
| Controller | Intel® UHD Graphics 770 | Intel® UHD Graphics 770 | Intel® UHD Graphics 770 | Intel® UHD Graphics 730 | ||||
| Max. Frequency | 1.65 GHz | 1.55 GHz | 1.6 GHz | 1.5 GHz | 1.55 GHz | 1.45 GHz | 1.5 GHz | 1.4 GHz |
| Execution Unit | 32 | 32 | 32 | 32 | 32 | 32 | 24 | 24 |
Дополнительная информация
Platform |
|
| Chipset | R680E / H610E |
| BIOS | AMI UEFI 256Mbit |
Memory |
|
| Technology | DDR5-4800 |
| Max. Capacity | Up to 32GB |
| Channel/Socket | Single Channel / 1 x SO-DIMM Socket |
Graphics |
|
| 3D/HW Acceleration | DX12, OGL4.5, OCL2.1, HW Encode: AVC/H264, JPEG, HEVC/H265, VP9 HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1 |
Display I/F |
|
| LCD | 1 x eDP 1.4b, up to 5120 x 3200 @60Hz, 24bpp |
| HDMI/DP | 2 x HDMI 1.2, up to 1920 x 1200 @60Hz, 24bpp |
| Multiple Display | 3 simultaneous displays via eDP + HDMI + HDMI |
Ethernet |
|
| Controller | LAN1/LAN2: Intel I225 |
| Speed | LAN1/LAN2: 2.5GbE |
| TSN support | LAN1/LAN2: Yes |

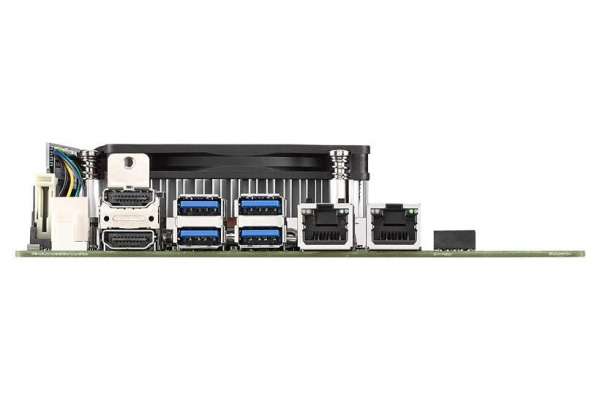

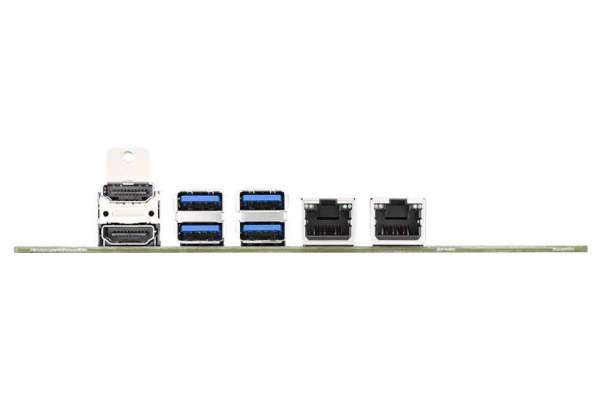

External I/O |
|
| Ethernet | 2 x RJ-45 |
| HDMI | 2 |
| USB | 4 x USB 3.2 ; R680E: 4 x USB 3.2 Gen 2x1 (10Gbps) / H610E: 2 x USB 3.2 Gen 2x1 (10Gbps)+ 2 x USB 3.2 Gen 1x1 (5Gbps) |
Internal I/O |
|
| USB | 2 x USB 2.0 |
| COM Port | 2 x RS-232/422/485, max. 1Mbps |
| CANBus | 1 x CAN2.0, max. 1Mbps |
| Serial Bus | 1 x I2 C (BOM Default, optional to 1 x SMBus*) |
| Audio | Realtek ALC888s, Line-in/Line-out/MIC |
| GPIO | 8-bit general purpose input output I/O |
| Fan | 12V, 2A (4-wire) |
| Front Panel Control | Power-on, Reset, Buzzer, CaseOpen |
Board Feature |
|
| Watchdog Timer | 65536 level, 0~65535 sec |
| TPM | Support ; R680E: Discrete TPM 2.0 IC / H610E: fTPM support by Intel® Platform Trust Technology |
| iManager 3.0 | SW API for Hardware Monitor, Smart Fan Control, Brightness Control, I2 C, GPIO, WDT |
Expansion |
|

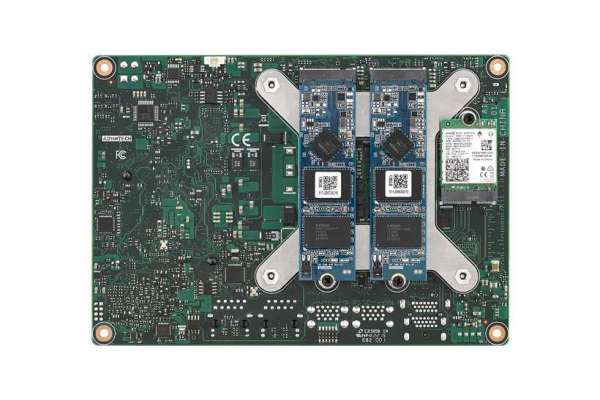

| M.2 M-Key | Up to 2 x M-Key 2280 (PCIe Gen. 4 x4), depends on Chipset SKU. (R680E: 2 x M-Key / H610E: 1 x M-Key) |
| M.2 B-Key | Up to 1 x M.2 B-Key 3042 (Only USB 2.0 interface ; with SIM slot and support bracket for LTE module), depends on Chipset SKU. (R680E: 0 / H610E: 1 x M.2 B-Key) |
| M.2 E-Key | 1 x E-Key 2230 (PCIex1, USB2.0) |
Power |
|
| Supply Voltage | Vin: DC 12V ± 10%; RTC Battery: Lithium 3V/220mAH |
| Connector | ATX 2x2 pin 180D (Option to ATX 2x2 pin 90D) |
| Power Management | AT, ATX |
Environment |
|
| Temperature |
|
| Humidity |
|
| Vibration Resistance | 3.5 Grms |
Certification |
|
| EMC | CE, FCC Class B |
Mechanical |
|
| Dimensions | 115 x 165 mm (4.5 x 6.5 inches) |
| Net Weight | 320g (w/o CPU & Cooler) |
