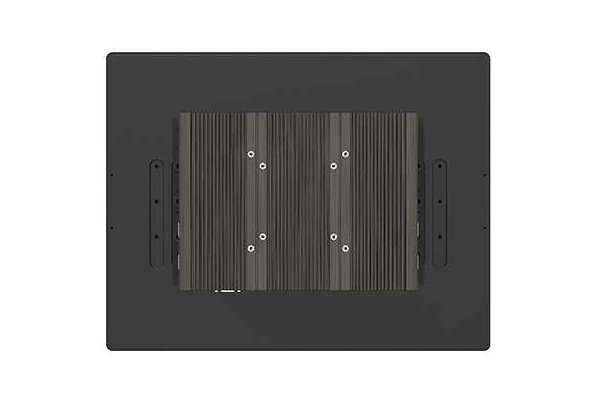

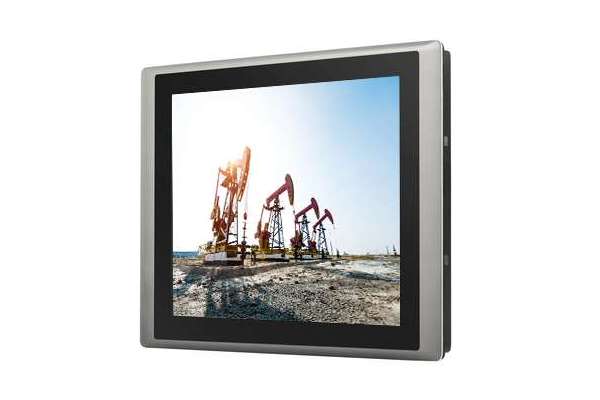

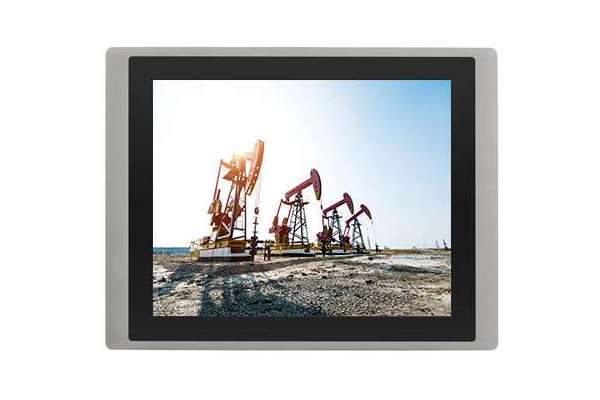

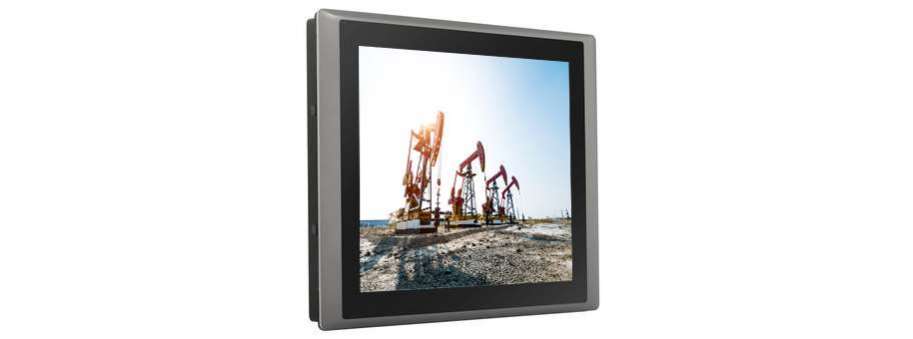

17" TFT-LCD SXGA 5:4 модульный панельный ПК на Intel® Core™ i5 / i3 12-го поколения с проецируемым емкостным сенсорным экраном Cincoze CS-117/P2202

Производитель: Cincoze
Facebook Twitter Linkedin Mail

Серия CS-100/P2202 - это высокопроизводительные панельные ПК с возможностью чтения при солнечном свете, обеспечивающие сверхвысокую яркость до 1 800 нит. Он оснащен процессором Intel® Core™ U-серии (Alder Lake-P), который обеспечивает полный выбор размеров, соотношения сторон и яркости экрана. Богатый набор входов/выходов, гибкие возможности расширения, прочность, простота обслуживания на месте и другие характеристики делают серию CS-100/P2202 лучшим выбором для наружных киосков или HMI-приложений.

  • 17" TFT-LCD с проецируемым емкостным сенсорным экраном
  • Встроенный процессор Intel® Alder Lake-P U-Series Core™
  • Гнездо 2x DDR5 SO-DIMM, поддерживает до 4800 МГц 64 ГБ памяти
  • Ультравысокая яркость до 1 500 нит
  • Четыре независимых дисплея (CDS / HDMI / DP / VGA)
  • 1x гнездо M.2 Key E Type 2230 для Intel CNVi / беспроводного модуля
  • Передняя панель выполнена из литого алюминия
  • Передняя панель соответствует стандарту IP65

Дополнительная информация

System

 P2202 P2202
Processor

Onboard 12th Generation Intel® Alder Lake-P U-Series CPU:

- Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W

- Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W

Onboard 12th Generation Intel® Alder Lake-P U-Series CPU:

- Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W

- Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
Memory 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB
BIOS AMI BIOS AMI BIOS

Graphics
Graphics Engine
  • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE
  • Integrated Intel® UHD Graphics: Core™ i3-1215UE
  • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE
  • Integrated Intel® UHD Graphics: Core™ i3-1215UE
Maximum Display Output Supports Quad Independent Display
  • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE
  • Integrated Intel® UHD Graphics: Core™ i3-1215UE
CDS 1x CDS Connector (1920 x 1080 @60Hz) 1x CDS Connector (1920 x 1080 @60Hz)
DP

1x DisplayPort Connector (4096 x 2304 @60Hz)

* Verified maximum resolution: 3840 x 2160 @ 60Hz

1x DisplayPort Connector (4096 x 2304 @60Hz)

* Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI 1x HDMI Connector (3840 x 2160 @30Hz) 1x HDMI Connector (3840 x 2160 @30Hz)
VGA 1x VGA Connector (1920 x 1200 @60Hz) 1x VGA Connector (1920 x 1200 @60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm 1x Mic-in, Phone Jack 3.5mm

I/O
LAN

2x 1GbE LAN, RJ45

  • GbE1: Intel® I219
  • GbE2: Intel® I210

2x 1GbE LAN, RJ45

  • GbE1: Intel® I219
  • GbE2: Intel® I210
COM 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 3 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 1 x USB 2.0 (480Mbps), Type A
  • 3 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 1 x USB 2.0 (480Mbps), Type A
DIO 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block

Storage
SSD/HDD 2x 2.5” SATA HDD/SSD Bay (SATA3.0) 2x 2.5” SATA HDD/SSD Bay (SATA3.0)
RAID Support RAID 0/1 Support RAID 0/1

Expansion
Mini PCI Express 2x Full-size Mini-PCIe Socket 2x Full-size Mini-PCIe Socket
PCI Express -

1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card)

* Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
SIM Socket 1x SIM Socket 1x SIM Socket
M.2 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CFM (Control Function Module) Interface
  • 1x CFM Interface for optional IGN Module Expansion
  • 1x CFM Interface for optional PoE Module Expansion
  • 1x CFM Interface for optional IGN Module Expansion
  • 1x CFM Interface for optional PoE Module Expansion
CDS (Convertible Display System) Interface 1x CDS Interface for Convertible Display Module 1x CDS Interface for Convertible Display Module

Power
Power Button 1x ATX Power On/Off Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block 1x Remote Power On/Off, 2-pin Terminal Block

Operating System
Windows Windows®11, Windows®10 Windows®11, Windows®10
Linux Ubuntu 22.04 Ubuntu 22.04

Physical
Dimension( W x D x H ) 254.5 x 190 x 41.5 mm 254.5 x 190 x 61 mm
Weight Information 2.22 kg 2.74 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS / DIN Rail Wall / VESA / CDS / DIN Rail
Physical Design
  • Fanless Design
  • Jumper-less Design
  • Fanless Design
  • Jumper-less Design

Environment
Operating Temperature

-40°C to 70°C * With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

-40°C to 70°C * With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 70°C -40°C to 70°C
Relative Humidity 95%RH @ 70°C (non-Condensing) 95%RH @ 70°C (non-Condensing)
Shock Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
  • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
  • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN IEC 61000-6-4, EN IEC 61000-6-2(24VDC Input Only)
  • CE, UKCA, FCC, ICES-003 Class A
  • EN IEC 61000-6-4, EN IEC 61000-6-2(24VDC Input Only)
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Safety UL, cUL, CB, IEC/EN 62368-1 UL, cUL, CB, IEC/EN 62368-1
