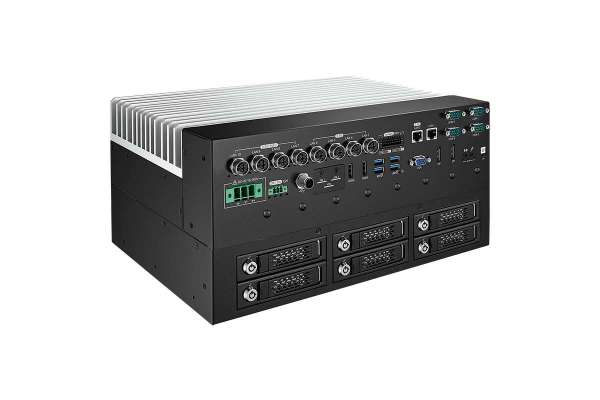

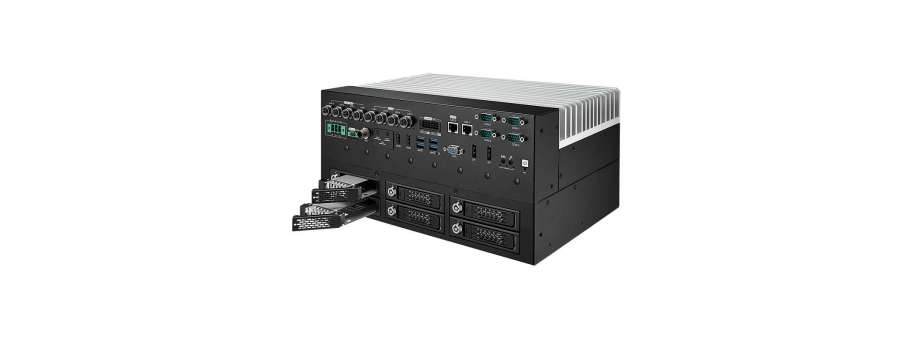

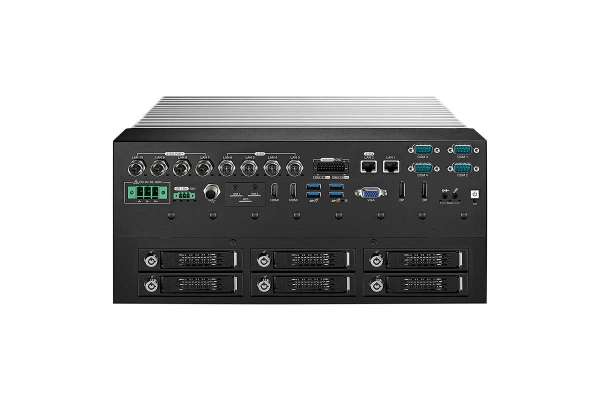

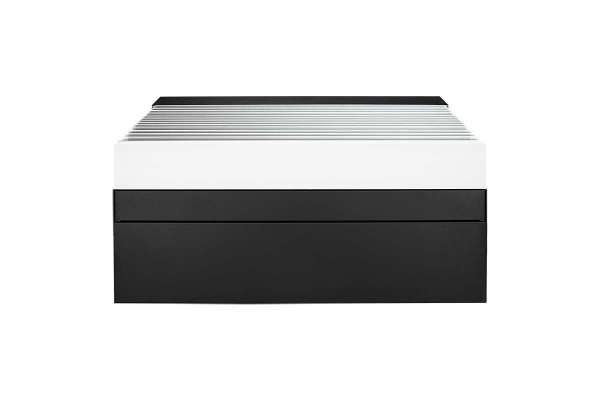

Workstation-grade Platform 13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processor ( Raptor Lake-S/Alder Lake-S) running with Intel® R680E PCH supports max 65W TDP CPU Vecow IVX-1000 ICY

Vecow IVX-1000 In-Vehicle Computing Workstation is powered 13th/12th Gen Intel® Core™ i9/i7/i5/i3 processor featuring performance hybrid architecture and advanced AI capabilities for smarter and faster applications. The IVX-1000 optional supports MXM Graphics powered by NVIDIA Quadro® platforms ideal for harsh environments with needed for excellent computing power, which helps accelerate the traffic vision deployment in rail applications. With a wide range of 16V to 160V power input, 500 surge protection and EN50155 certification, the IVX-1000 offers flexibility, optimal power integration and trusted reliability for In-vehicle computing in ADAS, Mobile Communication, Public Security and any Edge AI applications.

  • Workstation-grade Platform : 13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Codename : Raptor Lake-S/Alder Lake-S) running with Intel® R680E Chipset supports max 65W TDP CPU
  • Optional supports outstanding AI computing productivity by advanced and compact NVIDIA® Quadro® MXM graphics
  • 16V to 160V DC Power Input with 4kV DC Isolation, up to 500V Surge Protection, Software Ignition Power Control, UPS supported
  • Fanless design for railway in-vehicle applications, fully compliant with EN50155 : 2017
  • 8 Independent 2.5GigE LAN M12 X-coded with 4 IEEE 802.3at PoE+, 1 2.5GigE LAN, 1 GigE LAN, 4 Isolated COM
  • Up to 6 front-access 15mm height SSD/HDD Tray, multiple 5G/WiFi/4G/3G/LTE/GPRS/UMTS
  • Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
  • Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

Additional information

System

Processor
  • 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
  • 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel® R680E Chipset
BIOS AMI
SIO IT8786E
Memory 2 DDR5 4800MHz SO-DIMM, up to 64GB
OS Windows 10, Linux

I/O Interface

Serial 4 Isolated COM RS-232/422/485
USB
  • 4 USB 3.2 Gen2
  • 1 A-coded M12 USB 2.0 with 2-port signal
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
LED Power, HDD, PoE, Wireless
SIM Card 2 External SIM Card Sockets
RTC Battery Front-access RTC Battery

Expansion

Mini PCIe 1 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA
M.2
  • 1 M.2 Key B Socket (3052/2280, PCIe/USB 3, default/USB 2)
  • 1 M.2 Key E Socket (2230, PCIe/USB)
SUMIT 2 SUMIT Slot (Optional)

Graphics

Graphics Processor
  • Intel® UHD Graphics 770 driven by Intel® Xe Architecture
  • Independent MXM Graphics : By request
Interface
  • 1 VGA : Up to 1920 x 1200 @60Hz
  • 2 HDMI : Up to 1920 x 1080 @60Hz
  • 2 DisplayPort : Up to 4096 x 2304 @60Hz (By requested MXM)

Storage

SATA
  • IVX-1000 : 2 SATA III (6Gbps) support software RAID 0, 1
  • IVX-1000 ICY : 6 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
M.2 1 M.2 Key M Socket (2280, PCIe x4)
Storage Device
  • IVX-1000 : 2 Front-access 2.5"SSD/HDD Tray
  • IVX-1000 ICY : 6 Front-access 2.5"SSD/HDD Tray (15mm in height)

Audio

Audio Codec Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT
LAN 2 Intel® I226 2.5GigE LAN supports TSN
LAN 3 to LAN 6 Intel® I226 2.5GigE LAN, X-Coded M12 Connector
LAN 7 to LAN 10 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, X-Coded M12 Connector

Power

Power Input DC 16V to 160V, Max. support 200W
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block
Isolation 4kV DC
Surge Protection 0.5kV DC 8/20us Surge
UPS (IVX-1000 ICY)
  • Optional supports 3 stackable 18650 Li Batteries (2.5A/h)
  • Optional supports Super Cap

Others

TPM Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.

Environment

Operating Temperature
  • 35W TDP CPU without GPU : -25°C to 75°C (-13°F to 167°F)
  • 35W TDP CPU with <50W GPU : -25°C to 55°C (-13°F to 131°F)
  • 65W TDP CPU without GPU : -25°C to 65°C (-13°F to 149°F)
  • 65W TDP CPU with <50W GPU : -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @55°C
Shock/Vibration
  • IEC 61373 : 2010
  • Railway Applications : Rolling Stock Equipment, Shock and Vibration Test
EMC CE, FCC, EN50155, EN50121-3-2

Mechanical

Dimensions
  • IVX-1000 : 360mm x 228mm x 88mm (14.2" x 8.9" x 3.5")
  • IVX-1000 ICY : 360mm x 228mm x 171mm (14.2" x 8.9" x 6.7")
Weight
  • IVX-1000 : 7.1 kg (15.65 lb)
  • IVX-1000 ICY : 10.6 kg (23.43 lb)
Mounting
  • Wallmount by mounting bracket
  • Rackmount (Optional)
