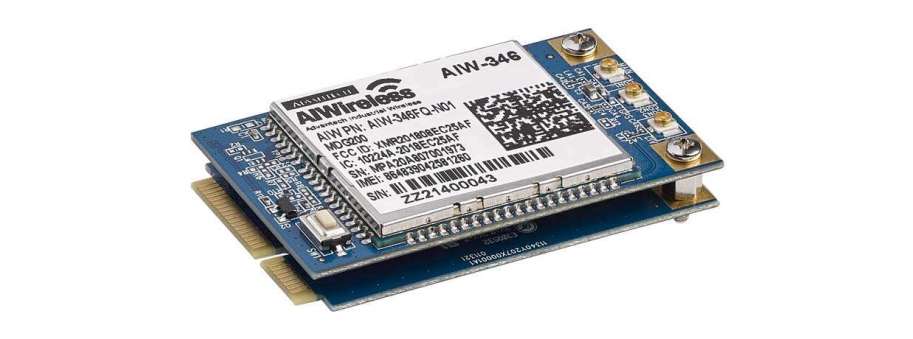

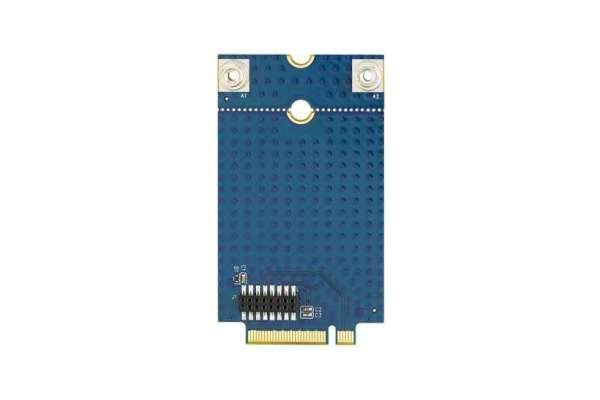

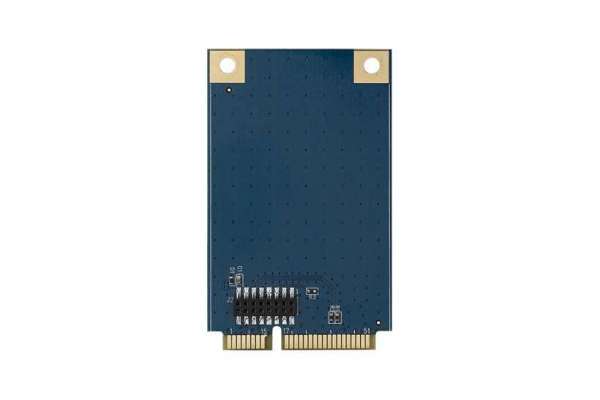

Wireless module Advantech AIW-346

LTE Cat.4+GNSS, Multiple form factor Modem card, pre-carrier certified Advantech AIW-346

• 4G/LTE Cat 4 and FDD-LTE/WCDMA
• LTE FDD:150Mbps DL/50Mbps UL (Cat 4)
• LTE TDD:130Mbps DL/30.5Mbps UL (Cat 4)
• Operating temperature: Normal: : -30°C ~ +80°C / -22°F ~ 176°F Extended: -40°C ~ +85°C / -40°F ~ 185°F
• Pre-carrier certified modem: AT&T and Verizon
• With GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS(optional)
• Deriver ready on Windows 10 and Linux (RNDIS supported)

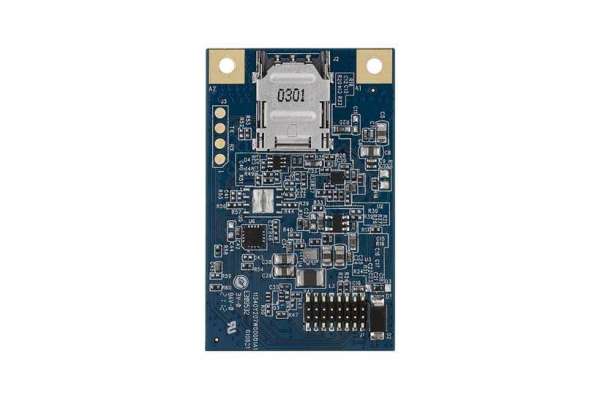

• With SIM slot

Additional information

Main Chipset	QUALCOMM MDM9607

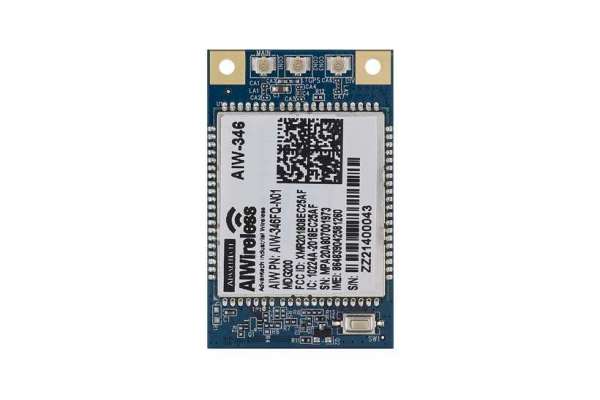

Antenna	2 x I-PEX connector for external LTE antenna 1 x I-PEX connector for external GPS antenna
Band	LTE Band: 2, 4, 5, 12, 13, 14, 66, 71 WCDMA Band: 2, 4, 5
Data Throughput	4G/ LTE Cat.4 (LTE: 150Mbps DL, 50Mbps UL)
Interface	USB 2.0 / UART board-to-board connector
Operation Voltage	DC 3.3/5V through board-to-board connector
O/S supported	Supports drivers for Windows 10 and Linux
Temperature Ranges	Operating temperature: Normal: -30°C ~ +80°C / -22°F ~ 176°F Extended: -40°C ~ +85°C / -40°F ~ 185°F
Dimensions (L x W x H) (Top Layer)	50 x 31 x 7.5 mm / 1.96 x 1.23 x 0.3 in
