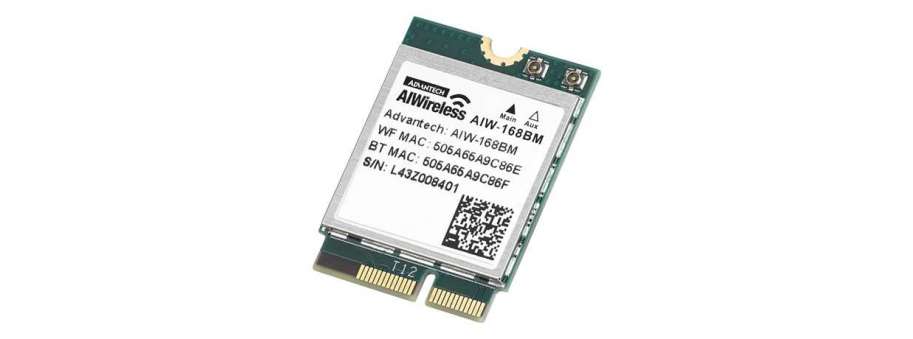

Wireless module Advantech AIW-168

IEEE 802.11 ax (2.4GHz/5GHz/6GHz) + BT5.3 M.2 2230 (E key) Advantech AIW-168

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
AIW-168BM	Wi-Fi 6E+BT5.3,M.2 2230,PCIe-USB	1 663,2

• Wi-Fi 6E + BT 5.3
• Support MU-MIMO (uplink/downlink)
• Security support for WFA, WPA/WPA2/WPA3 personal, WPS2.0, WAPI
• Operating temperature: -10~ +70°C
• 2Tx/2Rx

Additional information

Main Chipset	MTK 7922
Tx/Rx	2Tx/ 2Rx (2 IPEX MHF4 connector Receptacle)
Standard Conformance	IEEE 802.11 ax (2.4GHz/5GHz/6GHz) + BT 5.3
Form Factor	M.2 2230, E Key
Interface	Wi-Fi: PCIe, Bluetooth: USB
Operation Voltage	DC 3.3 V
Security	64-bit WEP (WEP-40) and 128-bit WEP (WEP-104) encryption with hardware TKIP and CKIP processing AES-CCMP hardware processing GCMP hardware processing SMS4-WPI (WAPI) hardware processing
O.S Supported	Windows 11
Temperature Ranges	Operating Temperature: -10 ~ +70°C
Dimensions (L x W x H)	22 x 30 x 2.3 mm
