6th Generation Intel® Core™ S series Video Wall Signage Player Advantech DS-980
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| DS-980GB-00A1E | Компьютер для визуализации и видеовывода SKL-S, PCIe x16, barebone | 56 973,4 | |
| DS-980GF-U3A1E | Компьютер для визуализации и видеовывода i5-6500TE, PCIe x16, 4G+4G RAM, 500G HDD | 74 024,6 | |
| DS-980GF-U4A1E | Компьютер для визуализации и видеовывода i7-6700TE, PCIe x16, 4G+4G RAM, 500G HDD | 84 795,2 | |
| DS-980GL-00A1E | Компьютер для визуализации и видеовывода SKL-S, barebone | 51 391,7 | |
| DS-980GL-U3A1E | Компьютер для визуализации и видеовывода i5-6500TE, 4G+4G RAM, 500G HDD | 70 407,6 | |
| DS-980GL-U4A1E | Компьютер для визуализации и видеовывода i7-6700TE, 4G+4G RAM, 500G HDD | 79 193,4 |
Current replacement for DS-862

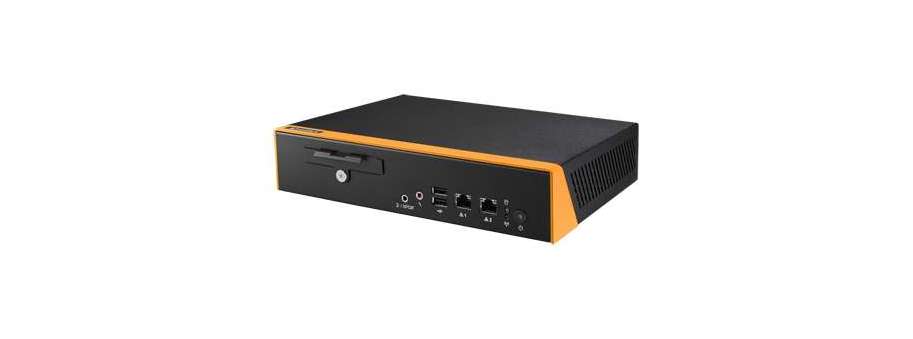

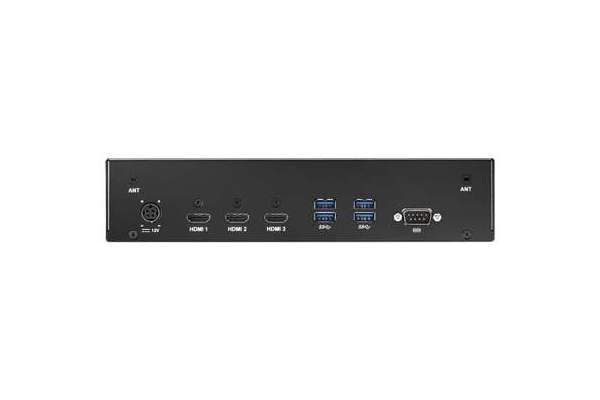

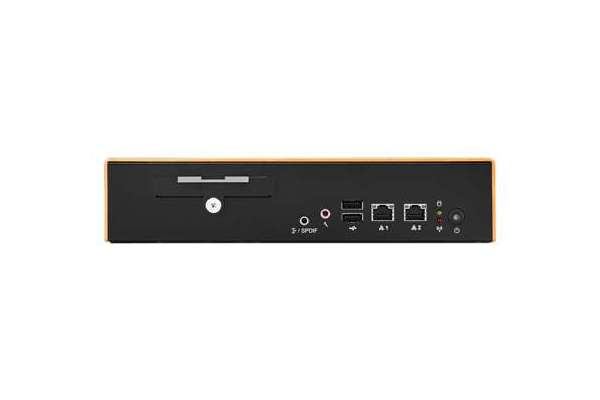

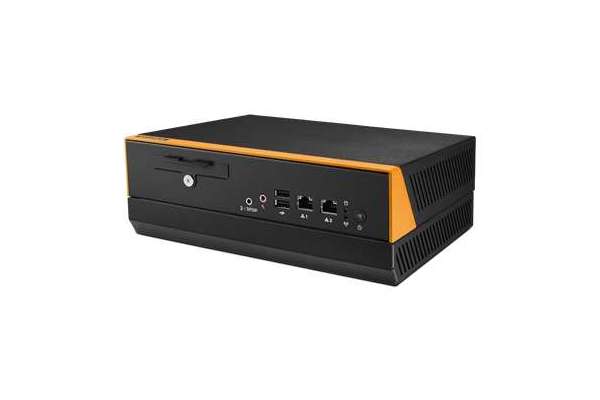

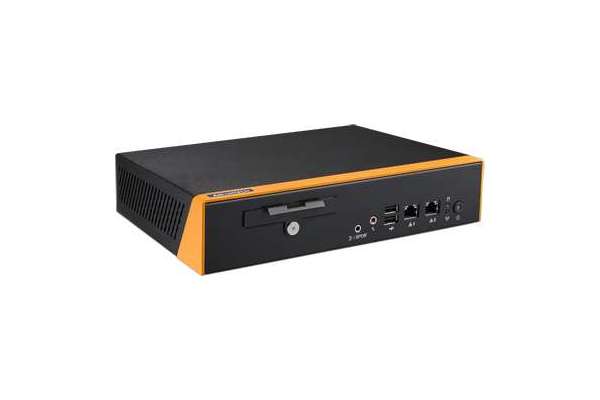

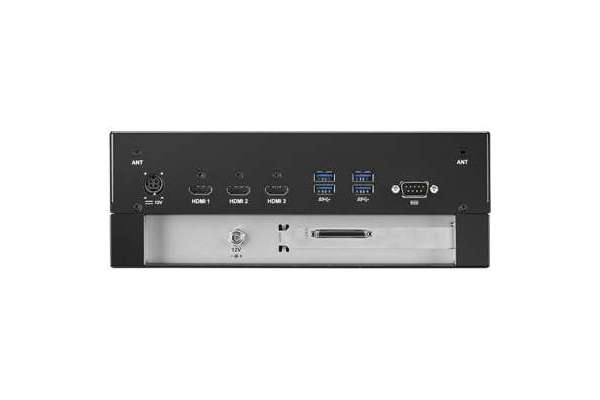

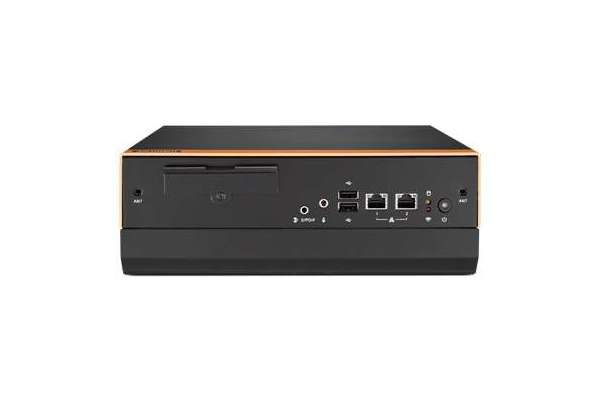

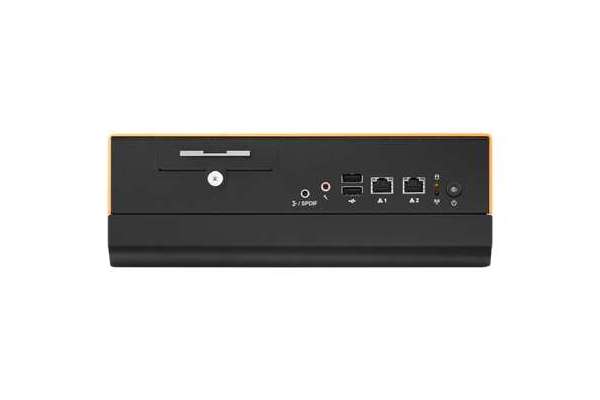

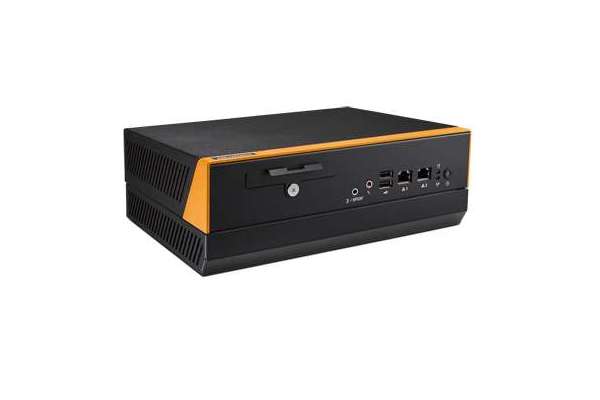

Advantech DS-980 is the first video wall solution of digital signage players, which is powered by the 6th generation Intel® Core i7/ i5/ i3/ Celeron rPGA processor (LGA 1151), and stackable design for PCI Express 3.0 x16 expansion which is used for optional graphic cards. DS-980 delivers the exceptional graphic performance by Intel HD Graphics 530 which supports HEVC/265, AVC/264, MPEG2, VC1/WMV9, VP8, JPEG/MJPEG, VP9 video format. Additionally, DS-980 adopts the latest interfaces to fulfill the customer’s advanced requirements, such as HDMI2.0 supports 4096 x 2160 @60Hz maximum resolution, DDR4 2133MHz SO-DIMM with dual channel (maximum capacity for 32GB, 16GB per SO-DIMM), and M.2 (2230 E key) for wireless function. Total display outputs on the DS-980 motherboard are 3 x HDMI which are designed for 1 x HDMI2.0 (printed HDMI1); 2 x 1.4 (printed HDMI2 & HDMI 3; HDMI2 supports CEC function). The maximum resolution is true 4K (4096 x 2160 @ 60Hz). Not only 3 x HDMI outputs but also the extra outputs from PCI Express 3.0 x16 slot for optional graphic card further support up to 6 outputs and realize the video wall application in retails, public services, institute and etc..
- Empowered by 6th Intel Core i7-6700TE/ i5-6500TE/ i3-6100TE/ Celeron G3900TE
- Supports True 4K (4096 x 2130 @60Hz) resolution by HDMI2.0
- Innovative stackable & expandable design for PCI Express x16 slot
- Efficiently deploy multi-display configurations by WebAccess/IMM, any 1x6, 2x3, 3x2, 6x1
- Supports Microsoft Windows 10 with proven compatibility
Additional information
| Part Number | DS-980GB-00A1E | DS-980GF-U3A1E | DS-980GF-U4A1E | DS-980GL-00A1E | DS-980GL-U3A1E | DS-980GL-U4A1E |
| Processor | ||||||
| CPU | Intel Core i7-6700TE/ i5-6500TE/ i3-6100TE/ CLN G3900TE, rPGA (LGA 1151) | Intel® Core™ i5-6500TE Processor | Intel® Core™ i7-6700TE | Intel Core i7-6700TE/ i5-6500TE/ i3-6100TE/ CLN G3900TE, rPGA (LGA 1151) | Intel® Core™ i5-6500TE Processor | Intel® Core™ i7-6700TE |
| System Chipset | Intel Q170 | Intel Q170 | Intel Q170 | Intel Q170 | Intel Q170 | Intel Q170 |
| BIOS | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit |
| Memory | ||||||
| Technology | 2 x DDR4 260-pin SO-DIMM | 2 x DDR4 260-pin SO-DIMM | 2 x DDR4 260-pin SO-DIMM | 2 x DDR4 260-pin SO-DIMM | 2 x DDR4 260-pin SO-DIMM | 2 x DDR4 260-pin SO-DIMM |
| Max. Capacity | SODIMM up to 32GB | 8GB (up to 4GB per SO-DIMM) | 8GB (up to 4GB per SO-DIMM) | SODIMM up to 32GB | 8GB (up to 4GB per SO-DIMM) | 8GB (up to 4GB per SO-DIMM) |
| Display | ||||||
| Controller | CPU Integrated | CPU Integrated | CPU Integrated | CPU Integrated | CPU Integrated | CPU Integrated |
| Graphic Engine | Intel HD graphics 530 | Intel HD graphics 530 | Intel HD graphics 530 | Intel HD graphics 530 | Intel HD graphics 530 | Intel HD graphics 530 |
| Video format | H.265/HEVC, H.264/AVC, MPEG2, VC1/WMV9, VP8, JPEG/MPEG, VP9 | H.265/HEVC, H.264/AVC, MPEG2, VC1/WMV9, VP8, JPEG/MPEG, VP9 | H.265/HEVC, H.264/AVC, MPEG2, VC1/WMV9, VP8, JPEG/MPEG, VP9 | H.265/HEVC, H.264/AVC, MPEG2, VC1/WMV9, VP8, JPEG/MPEG, VP9 | H.265/HEVC, H.264/AVC, MPEG2, VC1/WMV9, VP8, JPEG/MPEG, VP9 | H.265/HEVC, H.264/AVC, MPEG2, VC1/WMV9, VP8, JPEG/MPEG, VP9 |
| Output | 3 x HDMI | 3 x HDMI | 3 x HDMI | 3 x HDMI | 3 x HDMI | 3 x HDMI |
| Max. Resolution | 4096 x 2160 @ 60Hz | 4096 x 2160 @ 60Hz | 4096 x 2160 @ 60Hz | 4096 x 2160 @ 60Hz | 4096 x 2160 @ 60Hz | 4096 x 2160 @ 60Hz |
| Storage | ||||||
| SATA | *2 x 2.5" SATAIII (support RAID 0/1) | *2 x 2.5" SATAIII (support RAID 0/1) | 1 x 2.5" SATAIII (support RAID 0/1) | 1 x 2.5" SATAIII (support RAID 0/1) | 1 x 2.5" SATAIII (support RAID 0/1) | 1 x 2.5" SATAIII (support RAID 0/1) |
| mSATA | 1 x full-size Mini PCIe slot | 1 x full-size Mini PCIe slot | 1 x full-size Mini PCIe slot | 1 x full-size Mini PCIe slot | 1 x full-size Mini PCIe slot | 1 x full-size Mini PCIe slot |
| Audio | ||||||
| Chipset | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) |
| I/O Interface | ||||||
| HDMI2.0 | 1 (HDMI 1) | 1 (HDMI 1) | 1 (HDMI 1) | 1 (HDMI 1) | 1 (HDMI 1) | 1 (HDMI 1) |
| HDMI1.4 | 2 (HDMI 2 & 3, supports CEC by HDMI 2) | 2 (HDMI 2 & 3, supports CEC by HDMI 2) | 2 (HDMI 2 & 3, supports CEC by HDMI 2) | 2 (HDMI 2 & 3, supports CEC by HDMI 2) | 2 (HDMI 2 & 3, supports CEC by HDMI 2) | 2 (HDMI 2 & 3, supports CEC by HDMI 2) |
| LAN (RJ-45) | 2 (LAN1: Intel I2190; LAN2: Intel I211) | 2 (LAN1: Intel I2190; LAN2: Intel I211) | 2 (LAN1: Intel I2190; LAN2: Intel I211) | 2 (LAN1: Intel I2190; LAN2: Intel I211) | 2 (LAN1: Intel I2190; LAN2: Intel I211) | 2 (LAN1: Intel I2190; LAN2: Intel I211) |
| USB3.0 | 4 | 4 | 4 | 4 | 4 | 4 |
| USB2.0 | 2 | 2 | 2 | 2 | 2 | 2 |
| Audio | 1x SPDIF/ Line-out (support Jack sense via OS setting); 1 x Mic-in | 1x SPDIF/ Line-out (support Jack sense via OS setting); 1 x Mic-in | 1x SPDIF/ Line-out (support Jack sense via OS setting); 1 x Mic-in | 1x SPDIF/ Line-out (support Jack sense via OS setting); 1 x Mic-in | 1x SPDIF/ Line-out (support Jack sense via OS setting); 1 x Mic-in | 1x SPDIF/ Line-out (support Jack sense via OS setting); 1 x Mic-in |
| Serial | 1 x RS-232 or 2 x RS-485 + RS-422 with extension cable | 1 x RS-232 or 2 x RS-485 + RS-422 with extension cable | 1 x RS-232 or 2 x RS-485 + RS-422 with extension cable | 1 x RS-232 or 2 x RS-485 + RS-422 with extension cable | 1 x RS-232 or 2 x RS-485 + RS-422 with extension cable | 1 x RS-232 or 2 x RS-485 + RS-422 with extension cable |
| PCIe x16 (Internal) | 1 | 1 | 1 | N/A | N/A | N/A |
| Full-size mini-PCIe (Internal) | 1 (for optional WIFI, 3G, LTE module / mSATA) | 1 (for optional WIFI, 3G, LTE module / mSATA) | 1 (for optional WIFI, 3G, LTE module / mSATA) | 1 (for optional WIFI, 3G, LTE module / mSATA) | 1 (for optional WIFI, 3G, LTE module / mSATA) | 1 (for optional WIFI, 3G, LTE module / mSATA) |
| M.2 (Internal) | 1 (2230 E key for WIFI) | 1 (2230 E key for WIFI) | 1 (2230 E key for WIFI) | 1 (2230 E key for WIFI) | 1 (2230 E key for WIFI) | 1 (2230 E key for WIFI) |
| SIM slot (Internal) | 1 | 1 | 1 | 1 | 1 | 1 |
| Power Requirement | ||||||
| Management | ACPI 3.0 | ACPI 3.0 | ACPI 3.0 | ACPI 3.0 | ACPI 3.0 | ACPI 3.0 |
| Power Consumption | Max: 53.61W; Idle: 9.56W (i7-6700TE w/o RISER card), Max: 51.68W; Idle: 9.19W (i5-6500TE w/o RISER card) | Max.: 51.68W; Idle: 9.19W w/o RISER card) | Max.: 53.61W; Idle: 9.56W (w/o RISER card) | Max.: 53.61W; Idle: 9.56W (i7-6700TE), Max.: 51.68W; Idle: 9.19W (i5-6500TE) | Max.: 51.68W; Idle: 9.19W w/o RISER card) | Max.: 53.61W; Idle: 9.56W (w/o RISER card) |
| Power Type | AT/ATX | AT/ATX | AT/ATX | AT/ATX | AT/ATX | AT/ATX |
| Power Adapter | 12V DC-in 12.5A for top; optional 12V DC-in 7A for bottom | 12V DC-in 12.5A for top; optional 12V DC-in 7A for bottom | 12V DC-in 12.5A for top; optional 12V DC-in 7A for bottom | 12V DC-in 12.5A | 12V DC-in 12.5A | 12V DC-in 12.5A |
| Watchdog Timer | ||||||
| Output | Interrupt, system reset | Interrupt, system reset | Interrupt, system reset | Interrupt, system reset | Interrupt, system reset | Interrupt, system reset |
| Interval | Programmable 1 ~ 255sec. | Programmable 1 ~ 255sec. | Programmable 1 ~ 255sec. | Programmable 1 ~ 255sec. | Programmable 1 ~ 255sec. | Programmable 1 ~ 255sec. |
| Physical Characteristics | ||||||
| Mounting | VESA/ Desk mounting | VESA/ Desk mounting | VESA/ Desk mounting | VESA/ Desk mountingv | VESA/ Desk mounting | VESA/ Desk mounting |
| Dimensions(W x D x H) | 267.6 x 205 x 88mm | 267.6 x 205 x 88mm | 267.6 x 205 x 88mm | 267.6 x 205 x 88mm | 267.6 x 205 x 88mm | 267.6 x 205 x 88mm |
| Weight | 3.6kg | 3.6kg | 3.6kg | 3.6kg | 3.6kg | 3.6kg |
| Environment | ||||||
| Temperature (Operating) | 0 ~ 45° C (32 ~ 113° F) | 0 ~ 45° C (32 ~ 113° F) | 0 ~ 45° C (32 ~ 113° F) | 0 ~ 45° C (32 ~ 113° F) | 0 ~ 45° C (32 ~ 113° F) | 0 ~ 45° C (32 ~ 113° F) |
| Relative Humidity | 95% @ 40° C (non-condensing), Operating | 95% @ 40° C (non-condensing), Operating | 95% @ 40° C (non-condensing), Operating | 95% @ 40° C (non-condensing), Operating | 95% @ 40° C (non-condensing), Operating | 95% @ 40° C (non-condensing), Operating |
| Vibration Resistance | 0.8 Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis | 0.8 Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis | 0.8 Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis | 0.8 Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis | 0.8 Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis | 0.8 Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis |
| Software Development Kit | ||||||
| Operating System | Supports Microsoft Windows 10, Windows 8, Windows 7 | Supports Microsoft Windows 10, Windows 8, Windows 7 | Supports Microsoft Windows 10, Windows 8, Windows 7 | Supports Microsoft Windows 10, Windows 8, Windows 7 | Supports Microsoft Windows 10, Windows 8, Windows 7 | Supports Microsoft Windows 10, Windows 8, Windows 7 |
| Signage Software | WISE-PaaS/RMM & WebAccess/IMM | WISE-PaaS/RMM & WebAccess/IMM | WISE-PaaS/RMM & WebAccess/IMM | WISE-PaaS/RMM & WebAccess/IMM | WISE-PaaS/RMM & WebAccess/IMM | WISE-PaaS/RMM & WebAccess/IMM |
| Certifications | ||||||
| EMC | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI |
| Safety | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI |
