12th Gen. Intel® Core™ i5-1245UE / i3-1215UE Embedded Computer with CDS Technology Cincoze P2202

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
P2202-i5-R10 Компактний комп'ютер Cincoze P2202-i5-R10, 12th Gen. Intel® Core™ i5-1245UE Slim Embedded Computer with CDS Technology  87 456,8

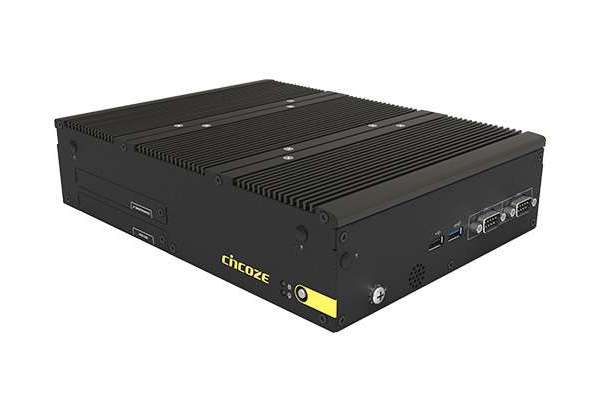

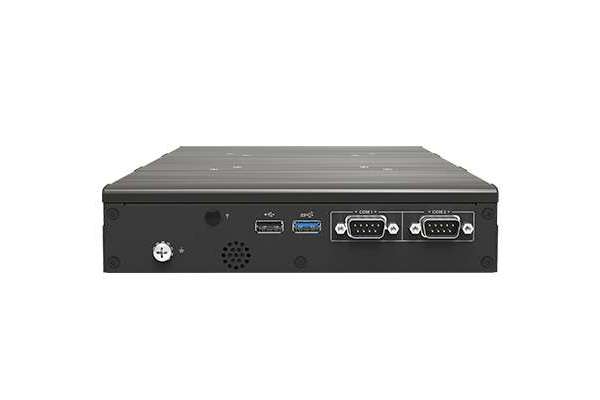

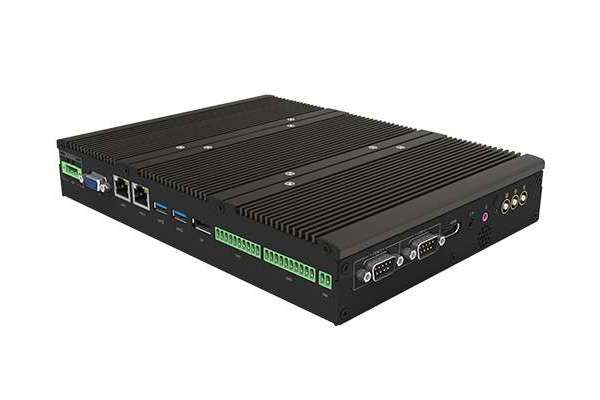

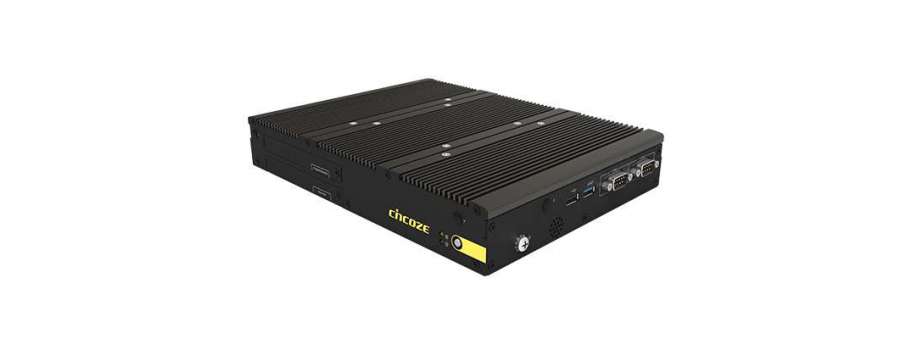

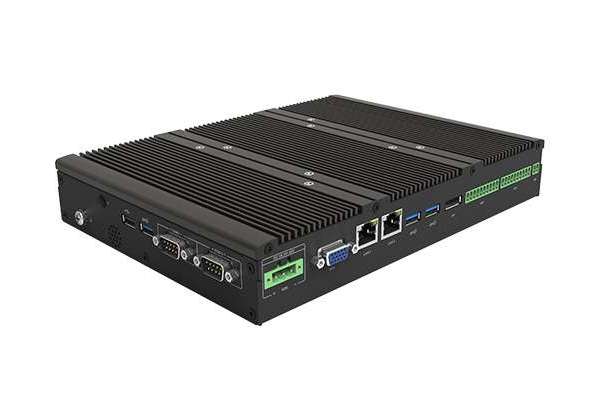

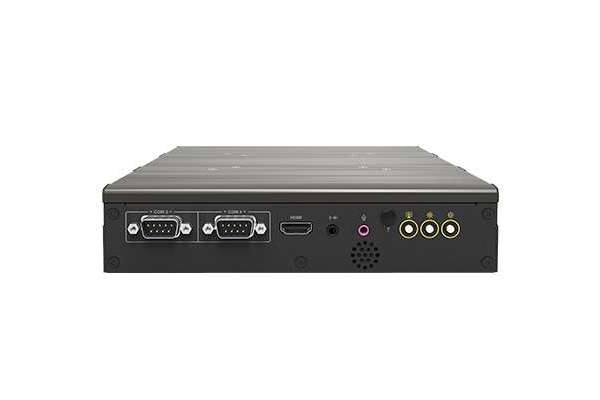

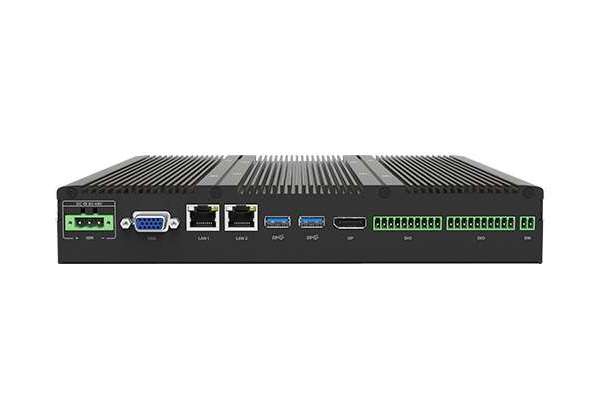

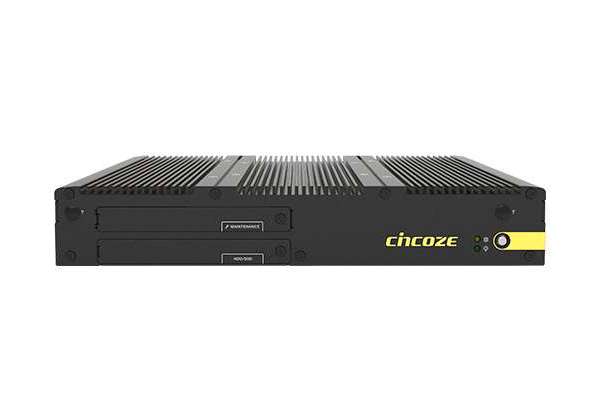

The P2202 series are ultra-slim high-performance embedded computers designed for industrial IoT edge computing. High-performance and flexible expansion are the standout features, with rich native I/O interfaces, Mini PCIe and M.2 Key E Type 2230 expansion slots, and PCIe expansion (Model: P2202E). The thinnest model is only 41.5 mm, a perfect fit for installation in small spaces. The main highlight of the P2202 series is the 12th Gen Intel® (Alder Lake-P) processors. The P2202 series can be used as a standalone embedded computer or, by using the exclusive CDS patented technology to connect a display module, used as an industrial panel PC, sunlight readable panel PC, or open frame panel PC to meet any display computing needs.

  • Onboard Intel® Alder Lake-P U-Series Core™ Processor
  • 2 x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
  • Quad Independent Display (CDS / HDMI / DP / VGA)
  • 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
  • Supports Cincoze Patent CDS Technology (Patent No. M482908)
  • CFM Technology for Power Ignition Sensing & PoE Function
  • Wide Operating Temperature -40°C to 70°C

Additional information

System
Processor

Onboard 12th Generation Intel® Alder Lake-P U-Series CPU:

- Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W

- Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
Memory 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB
BIOS AMI BIOS

Graphics
Graphics Engine
  • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE
  • Integrated Intel® UHD Graphics: Core™ i3-1215UE
Maximum Display Output Supports Quad Independent Display
CDS 1x CDS Connector (1920 x 1080 @60Hz)
DP 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI 1x HDMI Connector (3840 x 2160 @30Hz)
VGA 1x VGA Connector (1920 x 1200 @60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN

2x 1GbE LAN, RJ45

- GbE1: Intel® I219

- GbE2: Intel® I210
COM 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 3 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 1 x USB 2.0 (480Mbps), Type A
DIO 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block

Storage
SSD/HDD 2x 2.5” SATA HDD/SSD Bay (SATA3.0)
RAID Support RAID 0/1

Expansion
Mini PCI Express 2x Full-size Mini-PCIe Socket
PCI Express

P2202: -

P2202E: • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card)

* Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
SIM Socket 1x SIM Socket
M.2 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CFM (Control Function Module) Interface
  • 1x CFM Interface for optional IGN Module Expansion
  • 1x CFM Interface for optional PoE Module Expansion
CDS (Convertible Display System) Interface 1x CDS Interface for Convertible Display Module

Other Function
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
OSD Button LCD On/Off, Brightness Up, Brightness Down
Internal Speaker AMP 2W + 2W
Status LED Indicator Power LED, HDD LED

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off 2-pin Terminal Block

Operating System
Windows Windows®11, Windows®10
Linux Ubuntu 22.04

Physical
Dimension( W x D x H )

P2202: 254.5 x 190 x 41.5 mm

P2202E: 254.5 x 190 x 61 mm
Weight Information

P2202: 2.22 kg

P2202E: 2.74 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS / DIN Rail
Physical Design
  • Fanless Design
  • Jumper-less Design

Reliability & Protection
Reliability & Protection Yes
Reverse Power Input Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3

Environment
Operating Temperature

-40°C to 70°C

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 70°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
  • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN IEC 61000-6-4, EN IEC 61000-6-2(24VDC Input Only)
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Safety UL, cUL, CB, IEC/EN 62368-1
