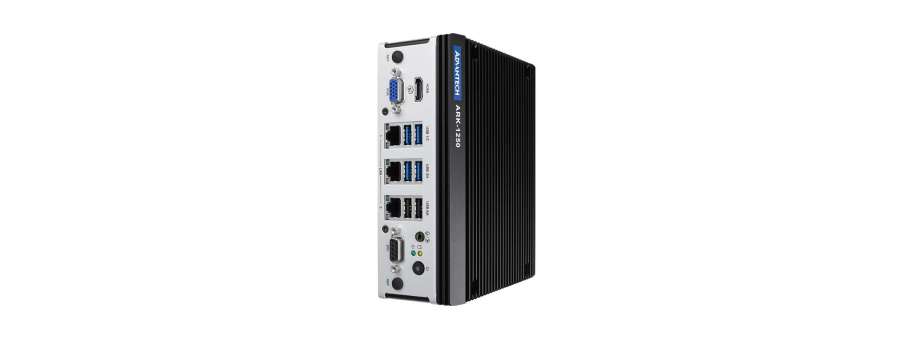

Intel® 11th Gen Core™ i processor with Triple LAN/ Quadruple COM Din-Rail Fanless Box PC Advantech ARK-1250L
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ARK-1250L-U2A1 | Компактний промисловий комп'ютер Advantech ARK-1250L Intel Core i3-1115G4E HDMI+VGA+3*GbE+4*COM | 63 056,7 | |
| ARK-1250L-S5A1 | Компактний промисловий комп'ютер Advantech ARK-1250L Intel Core i5-1145G7E HDMI+VGA+3*GbE+4*COM | 82 449,1 |
- Intel 11th Gen. Core i5/i3

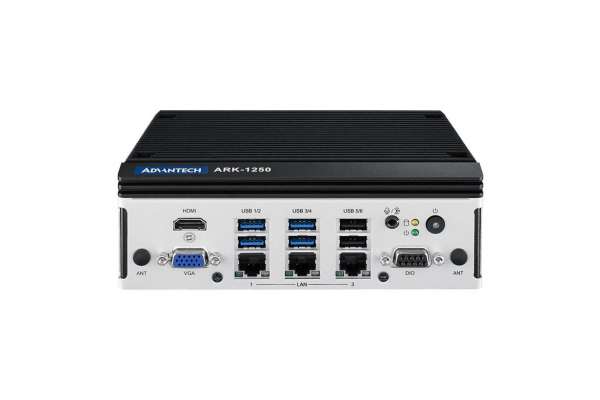

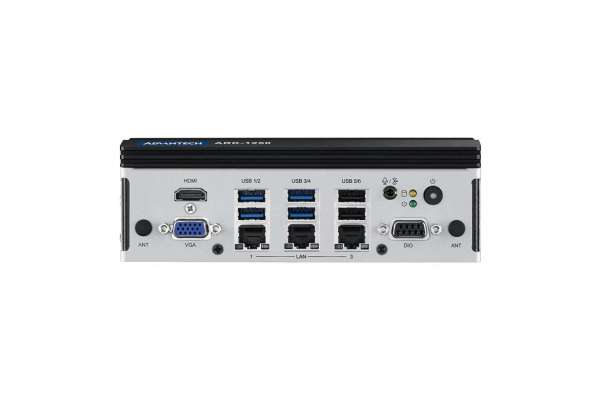

- DIN-Rail system with essential I/O ports on front-side bezel

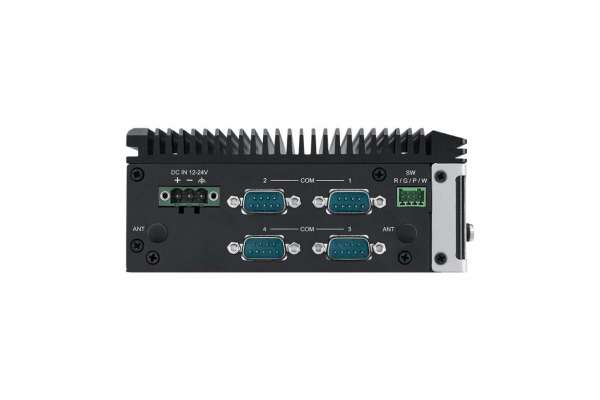

- 3 x Intel GbE, 4 x RS-232/422/485, 8-bit DIO, optional CANBus
- 3 Expansions: M.2 E-Key 2230, M.2 B-Key 2280, 1 x Full-size mSATA share with mPCIe slot
- Dual independent displays with one 4K HDMI and one VGA
- 3 x USB 3.2 and 3 x USB 2.0
- mSATA and 1 x 2.5" SATA storage device
- 12V ~ 24V wide range power input
- -40 ~ 60 °C extended operating temperature
- Advantech iEdge support
- Qualified for Edge AI SRP of WISE-DeviceOn
Additional information
Processor System |
|
| CPU | Core i5-1145G7E / Core i3-1115G4E |
| Frequency | 1.5GHZ turbo boost up to 4.1 GHz / 2.2 GHz turbo boost up to 3.9 GHz |
| Core Number | 4 / 2 |
| BIOS | AMI EFI 256 Mbit |
Memory |
|
| Technology | DDR4 3200 MHz |
| Max capacity | Up to 64 GB with 2 x slots |
| Socket | 2 x Dual Channel DDR4 3200 MHz 260 pin SO-DIMM (no support ECC) |
Graphics |
|
| Chipset | Intel® Iris® Xe graphics |
| HDMI | Up to 4096 x 2160 @ 60Hz |
| VGA | Up to 1920 x 1200 @ 60Hz |
| Dual Display | HDMI + VGA |
Ethernet |
|
| LAN1 | 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN |
| LAN2 | 10/100/1000 Mbps Intel i219 GbE, support Wake On LAN |
| LAN3 | 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN |
Audio |
|
| Interface | Realtek ALC888S, High Defination Audio, Mic-in or Line-out |
I/O Interface |
|
| Seriel Ports | 4 x RS-232/422/485 with auto flow control |
| USB Ports | 3 x USB3.2, 3 x USB2.0, 1 x internal USB 2.0 supported by project |
| GPIO | 8-bit Programmable DIO |
| CANBus | Optional (supported by project) |
Expansion |
|
| Mini PCIe | 1 x Full-size mPCIe |
| M.2 | 1 x M2. 2230 E key and 1 x M.2 2280 B key with nano SIM holder #1 |
Storage |
|
| SSD/HDD | 1 x 2.5" SATAIII Drive bay (compatible with 15mm height) |
| mSATA | 1 x Full-size mSATA (*share with mPCIe slot) |
Other |
|
| WatchDog Timer | 255 levels timer interval, setup by software |
| TPM | TPM 2.0 (Optional, project supported by AMO-I029) |
Software Support |
|
| Microsoft Windows | Windows 10 Enterprise |
| Linux | Ubuntu 20.04, others by project support |
Power Requirement |
|
| Power Type | ATX/AT |
| Power Input Voltage | 12 ~ 24 VDC |
| Power Adaptor | AC to DC, 90W adaptor by default |
Power Consumption |
|
| Typical (OS idle mode) | 19.8W / 18W |
| Max. (Full loading) | 35.1W / 30.6W |
Mechanical |
|
| Construction | Aluminum housing |
| Mounting | DIN-rail/Wall Mount |
| Dimensions (W x H x D) | 60 x 173 x 141 mm (2.36 x 6.73 x 5.55 in) |
| Weight | 1.5KG |
Environment |
|
| Operating Temperature | With extended temp. peripherals: -40 ~ 60° C with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185°F) |
| Relative Humidity | 95% @ 40 °C (non-condensing) |
| Vibration during Operation | With SSD: 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis (with Wall Mount) |
| Shock during Operation | With SSD: 30 G, IEC-60068-2-27, half sine, 11 ms duration (with Wall Mount) |
| EMC | CE/FCC Class B, CCC |
| Safety | UL, CB, CCC |
