Fanless Box PC on Intel Atom E3940 QC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Advantech ARK-1220L
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ARK-1220L-S6A2 | Компактний промисловий комп'ютер Advantech ARK-1220L, Intel Atom E3940 F1 QC 1.6GHz, 2xHDMI, 2xGbE,4xUSB, 2xCOM | 28 873,0 | Доступно |
| ARK-1220L-S6A3 | Компактний промисловий комп'ютер Advantech ARK Intel Atom E3940 F1 QC 1.6GHz no audio | 27 174,6 |
The ARK-1220L PC from Advantech, unlike its predecessors, is built with a more powerful Intel Atom E3940 QC SoC with 4K Dual HDMI/Dual LAN/M.2 and has a non-traditional DIN-rail mounting option
- Intel Atom E3940 Quad Core SoC turbo burst up to 1.8 GHz

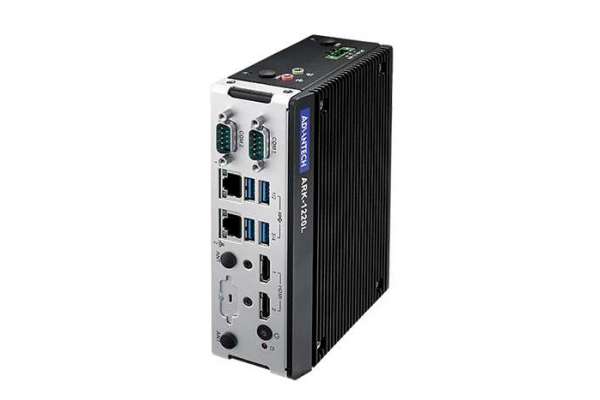

- DIN-Rail system with essential I/O ports on front-side bezel
- 2 x Intel GbE and 4 x USB 3.0
- Dual HDMI display up to 4K resolution
- 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI
- 1 x 2.5” SATA III SSD and 1 x full-size mSATA*
- 12V ~ 28V wide range power input
- -30 ~ 70°C extended operating temperature
- Advantech WISE-PaaS support
Additional information
|
Part Number |
ARK-1220L-S6A2 |
Processor |
|
|
CPU |
Intel Atom E3940 Quad Core Soc |
|
Frequency |
1.6 GHz, turbo burst 1.8GHz |
|
Core Number |
4 |
|
BIOS |
AMI EFI 64 Mbit |
Memory |
|
|
Technology |
DDR3L 1866 MHz |
|
Max. Capacity |
8 GB |
|
Socket |
2 x 204-pin SO-DIMM, 2 x 4GB or 1 x 8GB memory |
Graphics |
|
|
Chipset |
Intel HD Graphics 500, CPU integrated |
|
Graphic Engine |
Gen9 Low Power; 18 Execution Units Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG, 3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0 |
|
HDMI |
HDMI1 : 3840 x 2160 @ 30Hz; HDMI2 : 3840 x 2160 @ 30Hz |
|
Dual Display |
HDMI1 + HDMI2 |
Ethernet |
|
|
LAN1 |
10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
|
LAN2 |
10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
Audio |
|
|
Interface |
Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
I/O |
|
|
Serial port |
2 x RS-232/422/485 with auto flow control, COM2 with 5V/12V power supply |
|
USB |
4 x USB 3.0 |
|
GPIO |
8-bit Programmable DIO (Optional) |
Expansion |
|
|
Mini PCIe |
1 x Full-size mPCIe with SIM holder |
|
M.2 |
1 x M.2 2230 E key for WIFI module |
Storage |
|
|
2.5" HDD/SSD |
1 x 2.5" SATAIII Drive bay (compatible with 15mm height) |
|
mSATA |
1 x Full-size mSATA (*share with mPCIe slot) |
Others |
|
|
Watchdog timer |
255 levels timer interval, setup by software |
|
TPM |
SLB9665XQ2.0 FW5.62 (By T-PN, MOQ 30pcs) |
Software Support |
|
|
Microsoft Windows |
Windows 10 Enterprice |
|
Linux |
Support by project |
Power |
|
|
Power Type |
AT/ATX |
|
Input Voltage |
12 ~ 28 VDC |
|
Power Adaptor |
AC to DC, 60W (Optional) |
|
Consumption |
TBD |
Mechanical |
|
|
Construction |
Aluminum housing |
|
Mounting |
DIN-rail/Wall Mount |
|
Dimensions |
53.5 x 158 x 114 mm (2.11" x 6.22" x 4.49") |
|
Weight |
0.9kg |
| Environment | |
|
Operational Temperature |
With extended temp. peripherals: -30 ~ 70 C (-22 ~ 158F) w/ turbo burst off with 0.7 m/s air flow; With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104°F) with 0.7 m/s air flow |
|
Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F) |
|
Relative Humidity |
95% @ 40° C (non-condensing) |
|
Vibration during Operation |
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
Shock During Operation |
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
Certification |
|
|
EMC |
CE/FCC Class B, CCC, BSMI |
|
Safety Certifications |
UL, CB, CCC, BSMI |
