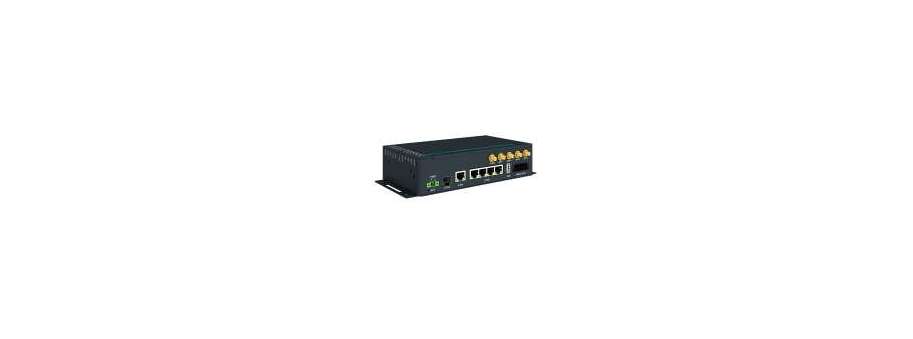

Ultra High-Speed 5G Router & Powerful Edge Computing Gateway Advantech ICR-4453

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
ICR-4453 Cellular Router, 5G, 5x ETH  96 594,0
ICR-4453S Cellular Router, 5G, 5x ETH, POE  103 351,0
ICR-4453W Cellular Router, 5G, 5x ETH, WIFI  100 232,0
ICR-4453WS Cellular Router, 5G, 5x ETH, WIFI, POE  106 989,0
ICR-4453W1 Cellular Router, 5G, 5x ETH, WIFI, low temp  99 712,7
ICR-4453W1S Cellular Router, 5G, 5x ETH, WIFI, POE, low temp  106 470,0

The ICR-4453 is an Ultra-high-speed 5G NR (New Radio) Router & Powerful Edge Computing Gateway focused on the European market. The 5G „gigabit“ speed and low latency, and high network availability is a real step to massive IoT and Enhanced mobile broadband (eMBB) applications - Mobile Internet access, Camera and security systems, Industrial systems, and many other high data demand applications. The router supports fallback via LTE (LTE-A Pro) and 3G networks for areas where 5G coverage is not developed yet/

  • 5G NR Cellular Connectivity, Sub-6GHz
  • 3GPP Release 15, Support both NSA and SA modes
  • Quad-core CPU with 1 GB RAM
  • 2× SIM, eSIM Ready, TPM 2.0
  • 5× Gigabit Ethernet (Optional 4× PoE+ PSE)
  • SFP Connector for SFP modules up to 10 Gbps
  • GNSS Receiver, Micro SD Card
  • RS232, RS485, CAN BUS, 2× DI, 2× DO, USB Host
  • Robust metal cover with wall and DIN mount options
  • Wide operational temperature range
  • Optional Dual-Band WiFi

Additional information

System
CPU Quad-Core ARM Cortex-A72, 1200 MHz
Memory

RAM - 1024 MB

eMMC - 4096 MB

(838 MB for Router Apps, 512 MB for customer data)
Watchdog HW Watchdog
RTC Battery backup RTC
TPM Trusted Platform Module (TPM) 2.0

Interfaces
Ethernet 5× Ethernet (4+1), RJ45, 10/100/1000 Mbps *Optional 4× PoE PSE, IEEE 802.3at-2009 (PoE+) and IEEE 802.3af-2003 (PoE) (PoE use is limited – see the ICR-4461 user manual)
SFP Cage 1× SFP cage (up to 10 Gbps)
Serial Lines
  • 1× RS232 (Tx, Rx, GND, RTS, CTS)
  • 1× RS485 (A(-), B(+), GND)
  • 1× CAN (CAN_H, CAN_L) (14-pin terminal block)
I / O
  • 2× Digital Input (3 mA consumption)
  • 2× Digital Output (Open Drain, 48 V / 500 mA) (14-pin terminal block)
USB 1× USB 2.0 Host Connector
MicroSD Card 1× Micro SD Card Slot
Reset Button Reboot / Factory reset
LED Indicators System, 3-level signal strength, Data activity, SIM1/SIM2 status, 3G/4G/5G technology, 2× Input, 2× Output, User, ETH

Environmental
Power Supply 9 – 48 V DC (2-pin terminal block)
Consumption
  • Without WiFi Idle 4.6 W / Average 6.1 W / Peak 14 W
  • With WiFi Idle 5.9 W / Average 8.1 W / Peak 16 W
  • PoE PSE without WiFi Idle 4.9 W / Average 6.1 W / Peak 128 W
  • PoE PSE with WiFi Idle 6.2 W / Average 8.1 W / Peak 130 W
Sleep Mode Yes, 24 mW, 310 mW for PoE PSE
Operating Temperature
  • -40 to +75 °C
  • -40 to +60 °C - ICR-4453W1, ICR-4453W1S
Storage Temperature -40 to +85 °C
Humidity 0 to 95 %
IP Cover IP30

Physical Characteristics
Dimensions 47 × 110 × 195 mm
Enclosure Robust Metal Case, Grounding Screw
Mounting Wall Mounting, DIN Rail (optional)
Weight 1275 g

WiFi - optional (ICR-4453W, ICR-4453WS, ICR-4453W1, ICR-4453W1S)
Antenna 3× R-SMA connectors, 3×3 MIMO
Standards IEEE802.11 ac/a/b/g/n 2.4 GHz / 5 GHz
Data Rate
  • Up to 600 Mbps @ 2.4 GHz
  • Up to 1300 Mbps @ 5 GHz
Security WEP, WPA, WPA2, WPA3, 802.1X
Modes Access Point (unlimited clients), Station, Multirole STA & AP

WiFi - optional (ICR-4453W3, ICR-4453W3S) *planned*
Antenna 2× R-SMA connectors, 2×2 MIMO
Standards IEEE802.11 ac/a/b/g/n 2.4 GHz / 5 GHz
Data Rate
  • Up to 300 Mbps @ 2.4 GHz
  • Up to 867 Mbps @ 5 GHz
Security WEP, WPA, WPA2, WPA3, 802.1X
Modes Access Point (unlimited clients), Station, Multirole STA & AP

Cellular Interface
SIM Slots
  • 2× SIM (Mini SIMs – 2FF)
  • 1× eSIM Ready
Antennas 4× SMA connector
5G NR frequency bands

5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79

Transfer rate: 2.5 Gbps (DL), 650 Mbps (UL)

5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79

Transfer rate: 2.1 Gbps (DL), 450 Mbps (UL)
LTE Parameters Supported frequency bands: B1/B2/B3/B4(B66)/B5(B18/B19/B26)/B7/B8/B12(B17)/B13/B14/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/ B40/B41/B42/B43/B46(LAA)/B48/B71 Transfer rate: 1 Gbps (DL), 211 Mbps (UL)
HSPA+/UMTS Parameters Supported frequency bands: B1/B2/B3/B4/B5/B6/B8/B19 Transfer rate: 42 Mbps (DL), 5.76 Mbps (UL)

Software
Operating System ICR-OS (Linux based)
SW Customization Router App (User Modules)*
Application Development Open Linux, *Python, BASH, C/C++, *Node-RED, *Docker
Networking Features and Protocols DHCP, NAT/PAT, SSH, VRRP, PPPoE, SNMP, SMTP, Dynamic DNS client, DNS proxy, VLAN, QoS, *DMVPN, NTP Client/Server, *Routing protocols RIP, BGP, OSPF, IS-IS, NHRP, Backup Routes, Port Forwarding, Host Port Routing, Ethernet Bridging, Load Balancing, IPv6 Dual Stack
