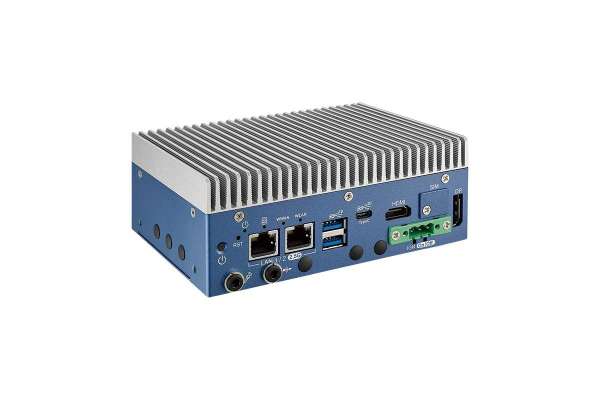

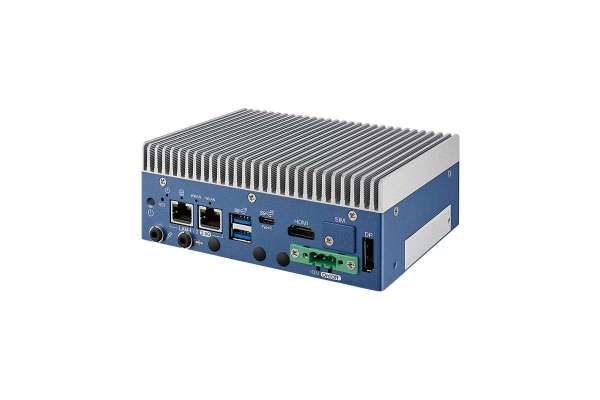

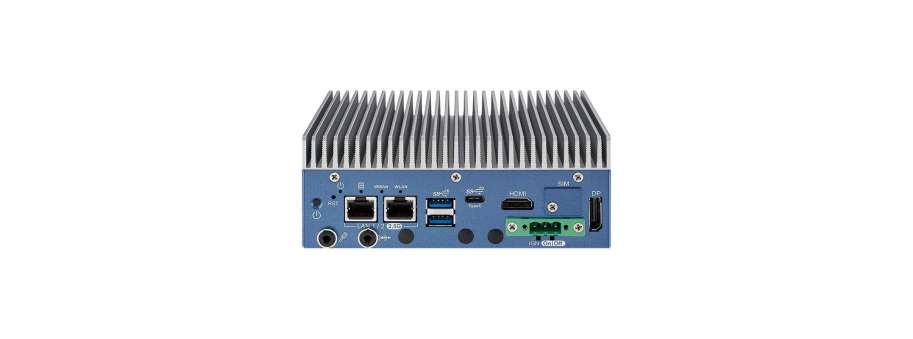

Ultra-compact Fanless Embedded System with a hybrid CPU/GPU/NPU architecture on Intel® Core™ Ultra processor Vecow SPC-9000

The Vecow SPC-9000 is an Ultra-compact Fanless Embedded System powered by the latest Intel® Core Ultra Processor, providing an optimal balance of performance and power efficiency. The SPC-9000 delivers improved performance and I/O interfaces including 2 USB 3.2 Gen 2, 1 USB Type-C, 2 2.5G LAN, 3 M.2 sockets for storage and expansion. The optional SUMIT socket is capable of supporting 10GigE LAN, 10G SFP+, and 4G networks accessible via the SIM socket. To meet industrial environments, the SPC-9000 support a wide range of power input from 9V to 55V and ensures operation within a temperature range from -40°C to 75°C, making it a perfect solution for Factory Automation, Service Robot, V2X, Smart Retail and other Edge AI applications.

  • Intel® Core™ Ultra processors feature a hybrid CPU/GPU/NPU architecture, improving CPU productivity by up to 14%.
  • Advanced Intel® AI Boost NPU delivers 11 TOPS AI-focused performance
  • Compact Design, fanless -40°C to 75°C Operation
  • DC 9V to 55V Power Input, Software Ignition Power Control
  • 2 USB 3.2 Gen 2, 1 USB 3.2 Gen 2x2 Type-C with DP, HDMI and DisplayPort
  • 2 2.5G LAN, 3 M.2 Socket for storage and expansion
  • Optional SUMIT B expansions for 10GigE LAN, 10G SFP+, or 4G Networks
  • Supports Intel® vPro, TSN, TCC, and TPM 2.0
  • Optional VHub One-Stop AIoT Solution Service supports OpenVINO™ toolkit for AI Computing

Additional information

System

Processor
  • Intel® Core™ Ultra 7 165U Processor (12 Cores)
  • Intel® Core™ Ultra 5 135U Processor (12 Cores)
NPU Intel® AI Boost
Chipset Intel® SoC
BIOS AMI
GPU Intel® Graphics
SIO IT8786E
Memory 1 DDR5 5600MHz SO-DIMM, up to 32GB
OS Windows 11, Windows 10, Linux

I/O Interface

Display

Supports Triple Display

  • 1 HDMI 2.1 : Up to 4096x2304 @60Hz
  • 1 DisplayPort 1.4 : Up to 4096 x 2304 @60Hz
  • 1 DisplayPort 1.4 : Up to 3840 x 2160 @60Hz by USB Type-C

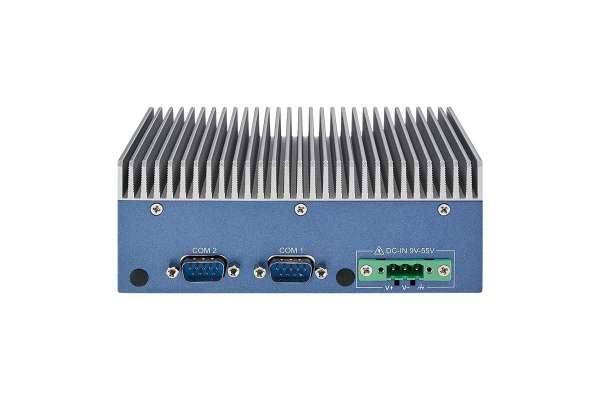

Serial 2 COM RS-232/422/485 (ESD 8KV)
USB
  • 1 USB 3.2 Gen 2x2 Type-C support max 20Gbps and DP 1.4 (5V/3A)
  • 2 USB 3.2 Gen 2 Type-A
LED Power, HDD, WWAN, WLAN
SIM 1 External Nano SIM Card Socket

Expansion

M.2
  • 1 M.2 Key B Socket (3042/3052, PCIe x2/USB 3, default/USB 2) with internal SIM
  • 1 M.2 Key E Socket (2230, PCIe x1/USB2)
SUMIT 1 SUMIT B (Optional, with customized chassis)

Storage

M.2
  • 1 M.2 Key M Socket (2280, PCIe 4.0 x4)
  • 1 M.2 Key B Socket (2280, PCIe x2, share with expansion)
SATA 1 SATA III (6Gbps) with internal 2.5" HDD/SSD bracket

Audio

Audio Codec Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I226 2.5GigE LAN supports TSN
LAN 2 Intel® I226 2.5GigE LAN supports TSN

Power

Power Input DC 9V to 55V
Power Interface 3-pin Terminal Block:V+,V-, Frame Ground
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block

Others

TPM Infineon SLB9672 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.

Mechanical

Dimension
  • SPC-9000 : 150.4mm x 106.2mm x 44.2mm (5.92" x 4.18" x 1.74")
  • SPC-9100 : 150.4mm x 106.2mm x 57.0mm (5.92" x 4.18" x 2.24")
  • SPC-9200 : 150.4mm x 106.2mm x 59.9mm (5.92" x 4.18" x 2.36")
Weight
  • SPC-9000 : 0.9 kg (1.98 lb)
  • SPC-9100 : 1.3 kg (2.87 lb)
  • SPC-9200 : 1.4 kg (3.09 lb)
Mounting
  • Wallmount by mounting bracket
  • VESA Mount (Optional)
  • DIN Rail Mount (Optional)

Environment

Operating Temperature
  • SPC-9000 : -40°C to 60°C (-40°F to 140°F) with air flow
  • SPC-9100 : -40°C to 75°C (-40°F to 167°F) with air flow
  • SPC-9200 : -40°C to 70°C (-40°F to 158°F) with fan sink
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @75°C
Shock
  • IEC 60068-2-27
  • SSD :50G @ wallmount, Half-sine, 11ms
Vibration
  • IEC 60068-2-64
  • SSD :5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, ICES, EN50155, EN50121-3-2
