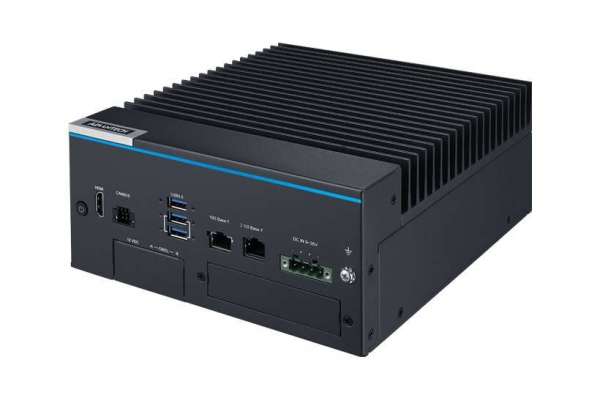

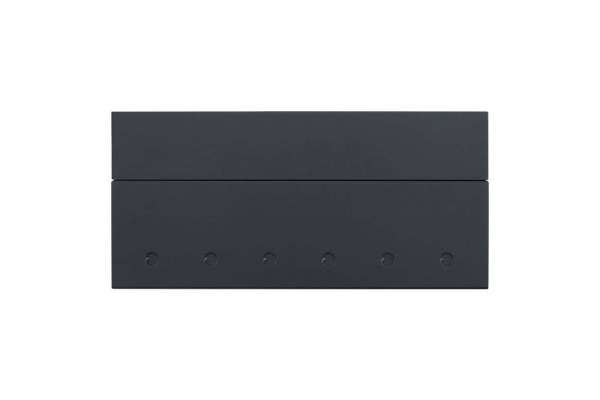

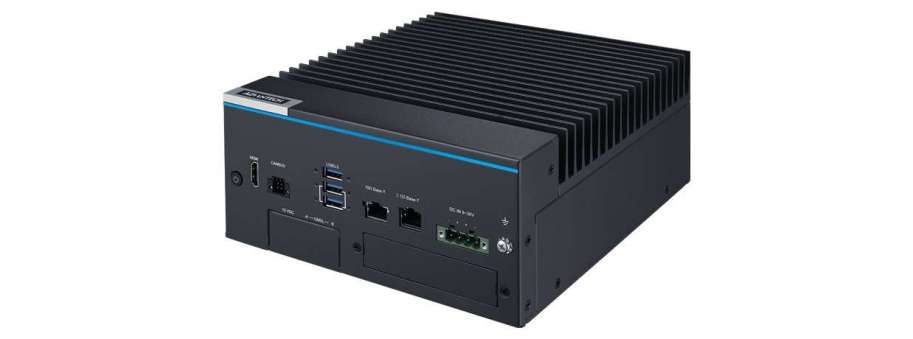

Ultra-compact design PC Advantech MIC-732-AO

Fanless AI Inference System Based on NVIDIA Isaac Nova Orin Advantech MIC-732-AO

• Fanless and ultra-compact design
• Embedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPS
• Supports 1 x 10GbE, 1 x 1GbE, 3 x USB 3.2 Gen 2 (10 Gbit/s)
• Supports 2 x CANbus, 1 x mPCIe, 2 x Nano SIM slots
• Support Total 8-ch GMSL3.0/2.0 with FAKRA connectors
• Support NVIDIA Isaac Robot Operating System (ROS2)

Additional information

Processor
CPU	12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3
GPU	2048-core NVIDIA Ampere GPU with 64 Tensor Cores Maximum Operating Frequency: 1.3GH
Mem	64GB LPDDR5
eMMC	64GB eMMC

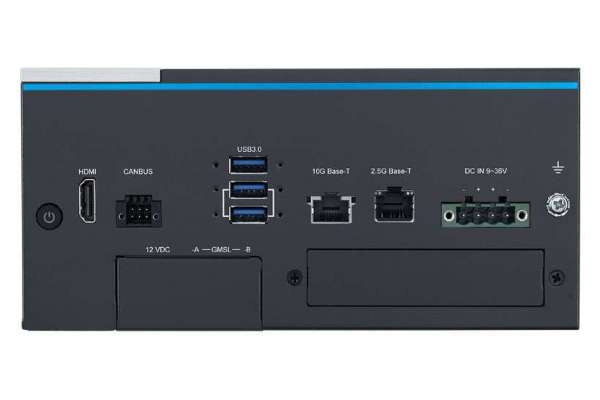

I/O
Ethernet	1 x 10/100/1000/2500 Mbp 1 x 10GbE
Display	1 x HDMI Display
USB	External: 3 x USB 3.2 Gen 2, 2 x USB micro B, (1 from UART for debug) Internal: 1 x USB 2.0 (pin header)
CAN	2 x CANBus
Serial Ports	2 x RS-232/422/485 (On-board pin header)
Expansion
M.2	1 x M.2 3052 (B-Key) (Signal: USB 3.0+USB 2.0) 1 x M.2 2230 (E-Key) (Signal: PCIe+USB2.0)
Mini PCIe	1 x mPCIe (Signal: PCIe+USB 2.0)
SIM	2 x Nano SIM slots
GMSL(Optional)	8-ch GMSL3.0/2.0 with FAKRA connectors
iDoor (Optional)	1 x iDoor bracket reserve
Storage
M.2	1 x M.2 2280 (B/M-Key, NVMe, Signal: PCIe x4)
Power
Mode	AT/ATX (Default AT)
Input Voltage	9~36VDC, Rated 12VDC
Environment
Operation Temperature	-20 ~ 60 °C with 0.7 m/s air flow
Operating Humidity	95% @ 40 °C (non-condensing)
Vibration	3Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock	10G / 11 ms
Button	Reset / Recovery
Mechanical
Dimension (W x H x D)	192 x 203 x 90 mm (with heat sink)
Weight	TBC
Installation	Desktop / Wall mount
BSP
Jetpack	Above 6.0
Certifications	CE / FCC
