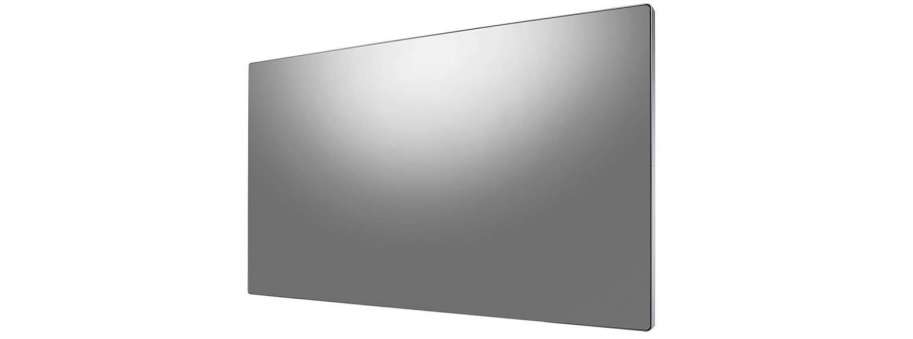

42.5" Ubiquitous Touch Computer with Intel® Pentium® N4200 Advantech UTC-542G

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-542GP-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 42.5" PCT.T/S with Pentium N4200, 4GB RAM  324 409,0
UTC-542GM-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 42.5" Mirror Glass with Pentium N4200, 4GB RAM  269 697,0
UTC-542DM-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 42.5" Mirror Glass with Celeron J1900, 4GB RAM  262 393,0
UTC-542FM-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 42.5" Mirror Glass with core i5 6300U, 4GB RAM  316 459,0
UTC-542DP-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 42.5" PCT.T/S with core Celeron J1900, 4GB RAM  312 748,0
UTC-542FP-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 42.5" PCT.T/S with core i5 6300U, 4GB RAM  368 312,0
UTC-542FG-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 42.5" Clear Glass with core i5 6300U, 4GB RAM  307 467,0

UTC-542 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

  • Optional mirror coating to support smart mirror applications
  • Dual hot-swappable HDD/SSD slots with RAID 0/1 support
  • Side groove design for flexible peripheral installation
  • Supports both landscape and portrait screen orientations
  • IP65-rated front panel for water and dust resistance
  • 42.5" monitor with 16:9 widescreen display
  • Built-in Intel® Pentium® N4200
  • Low Power, High Performance and fanless system design

Additional information

Processor System

CPU Intel® Celeron® J1900 (UTC-542D) Intel® Core™ i7-6600U (Available)* Intel® Core™ i5-6300U (UTC-542F) Intel® Core™ i3-6100U (Available)* Intel® Pentium® N4200 (UTC-542G) Intel® Atom® E3950 (Available)*
Base Frequency 2 GHz (Quad-Core) 2.4 GHz (Dual-Core) 1.1 GHz (N4200/Quad-Core) 1.6 GHz (E3950/Quad-Core)
Cache 2 MB 3 MB L2 Cache 2MB
Memory 1 x 204 pin SO-DIMM DDR3L 1333 MHz up to 8 GB 2 x 204 pin SO-DIMM DDR3L 1600Mhz up to 16G 1 x 204 pin SO-DIMM DDR3L 1867 MHz up to 8GB
HDD/SSD Dual hot-swappable HDD/SSD slots with RAID 0,1 support Dual hot-swappable HDD/SSD slots with RAID 0,1 support Dual hot-swappable HDD/SSD slots with RAID 0,1 support
Network (LAN) 2 x Gigabit Ethernet ports 2 x Gigabit Ethernet ports 2 x Gigabit Ethernet ports
I/O Ports 2 x RS-232 COM (RS-422/485)* 4 x USB 2.0 / 1 x USB 3.0 2 x Gigabit Ethernet (RJ-45) 1 x VGA 1 x HDMI 2 x RS-232 COM (RS-422/485)* 3 x USB 2.0 / 2 x USB 3.0 2 x Gigabit Ethernet (RJ-45) 1 x VGA 1 x HDMI 2 x RS-232 COM (RS-422/485)* 3 x USB 2.0 / 2 x USB 3.0 2 x Gigabit Ethernet (RJ-45) 1 x VGA 1 x HDMI
Stereo Speaker 10 W x 2 10 W x 2 10 W x 2
Bus expansion Full-size MiniPCIe/mSATA Full-size MiniPCIe/mSATA Full-size MiniPCIe / M.2
Dimensions (W x H x D) 990.6 x 578.8 x 60.2mm (Mirror Glass) 1016.9 x 605.2 x 60.5mm (Pcap / Mirror Pcap*) 990.6 x 578.8 x 60.2mm (Mirror Glass) 1016.9 x 605.2 x 60.5mm (Pcap / Mirror Pcap*) 990.6 x 578.8 x 60.2mm (Mirror Glass) 1016.9 x 605.2 x 60.5mm (Pcap / Mirror Pcap*)
Weight 24.6 kg 24.6 kg 24.6 kg

OS Support

WES 7P 32bit WES 7E 32bit Windows Pro Embedded 7 SP1 64bit WES 8 64bit Windows Embedded 8.1 Industry Pro 64bit Win 10 IoT Enterprise Linux Ubuntu 16.04 Android 4.4.2 WES 7P 32bit WES 7E 32bit Windows Pro Embedded 7 SP1 64bit WES 8 64bit Windows Embedded 8.1 Industry Pro 64bit Win 10 IoT Enterprise Linux Ubuntu 16.04 Win 10 IoT Enterprise Android 6.0 Linux Ubuntu 17.04

Environmental Specifications

Operating Temperature 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G 0.5G 0.5G
Shock 5 G peak acceleration (11 msec. duration) 5 G peak acceleration (11 msec. duration) 5 G peak acceleration (11 msec. duration)
Front Panel Protection IP65/ NEMA4 Compliant IP65/ NEMA4 Compliant IP65/ NEMA4 Compliant

Power

Input Rating 100-240VAC ~ 50/60Hz 3.7A 100-240VAC ~ 50/60Hz 3.7A 100-240VAC ~ 50/60Hz 3.7A

LCD Display

Size/Type 42.5" TFT LCD with LED backlight 42.5" TFT LCD with LED backlight 42.5" TFT LCD with LED backlight
Max.Resolution 1920 x 1080 1920 x 1080 1920 x 1080
Pixel Pitch (mm) 0.49 (H) x 0.49 (W) 0.49 (H) x 0.49 (W) 0.49 (H) x 0.49 (W)
Brightness (cd/m2 ) 450 nits 450 nits 450 nits
View Angle Horizontal: ±89° or 178° total / Vertical: ±89° or 178° tota Horizontal: ±89° or 178° total / Vertical: ±89° or 178° tota Horizontal: ±89° or 178° total / Vertical: ±89° or 178° tota

Touch Screen Option (PE/GE)

Type Projected Capacitive Touch Panel / Mirror Glass Panel (No touch function) / Mirror Projected Capacitive Touch Panel* Projected Capacitive Touch Panel / Mirror Glass Panel (No touch function) / Mirror Projected Capacitive Touch Panel* Projected Capacitive Touch Panel / Mirror Glass Panel (No touch function) / Mirror Projected Capacitive Touch Panel*
Light Transmission >90% (Pure Glass); >25% (Mirror Coating) >90% (Pure Glass); >25% (Mirror Coating) >90% (Pure Glass); >25% (Mirror Coating)
Controller USB Interface USB Interface USB Interface

* Mirror PCap by project request. ** Only UTC-542D and UTC-542G models support Android OS.
