Ubiquitous Box PC Advantech UBX-210K

Multi-functional Box Computer with Intel ADL-N – N97, N305 Processor for Edge systems and Signage Advantech UBX-210K

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
UBX-210K-BN100	UBX-210K, N97 PUSB, PCOM barebone	46 311,8
UBX-210K-BN200	UBX-210K, Core i3 N305, PUSB, PCOM barebone	63 692,6
UBX-210K-BN101	UBX-210K, N97 8USB, 4COM barebone	44 478,4
UBX-210K-BN201	UBX-210K, Core i3 N305, 8USB, 4COM barebone	61 859,3
UBX-210K-BN201	UBX-210K, Core i3 N305, 8USB, 4COM barebone	61 859,3

Advantech UBX-210K is a compact x86-based computer with detachable I/O boards that allow flexible I/O deployment. Rich I/O types and quantities fulfill different peripherals connections without any extension hub or converter. Moreover, the unique X-shaped fin design enables better system heat dissipation and allows horizontal and vertical setups. Such a compact design but powerful system performance satisfies retail demands, like POS systems and self-service kiosks in hypermarkets, quick-service restaurants, hotels, and public spaces. Due to multiple I/O types and quantities, the UBX-210K is also appropriate for cross-sector applications. The UBX-210K is a cost-effective solution for retail and semi-industry scenarios.

• Modular detachable I/O board features in rich and flexible I/O deployment

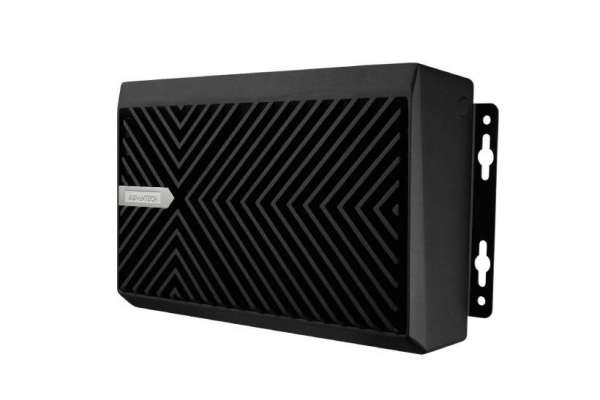

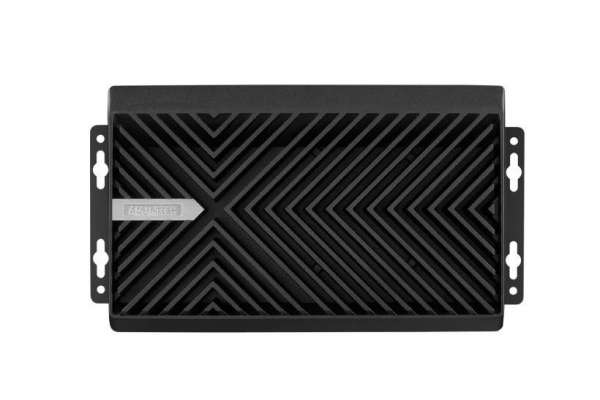

• Unique X-shaped fin design enhances system heat dissipation; the mounting direction is not limited by airflow
• Equipped with TPM2.0 chip for data encryption enhancement
• Supports one DDR5 SODIMM slot and two M.2 2280 SATA SSD slots
• Can be integrated with optional WiFi and Bluetooth combo module
• Support Windows 10 IoT LTSC, Windows 11 IoT, or Linux

Additional information

Model	UBX-210K
Processor	N97 Core i3, N305
TPM	TPM 2.0
Memory	DDR5-4800 SO-DIMM *1, Up to 16 GB (non-ECC)
Resolution	USB-C: support up to 4K UHD (4096 x 2160@60Hz); HDMI 1 and 2: support up to 4K UHD (4096 x 2160@60Hz)

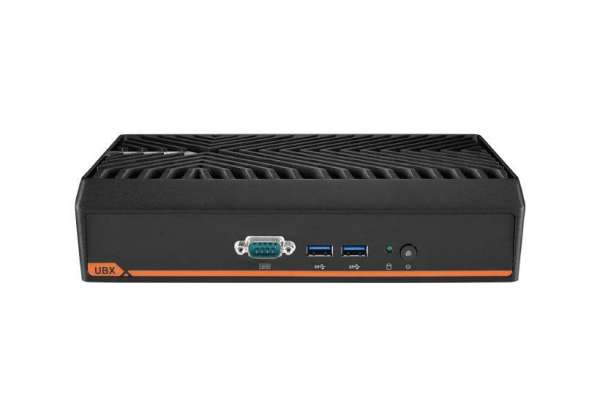

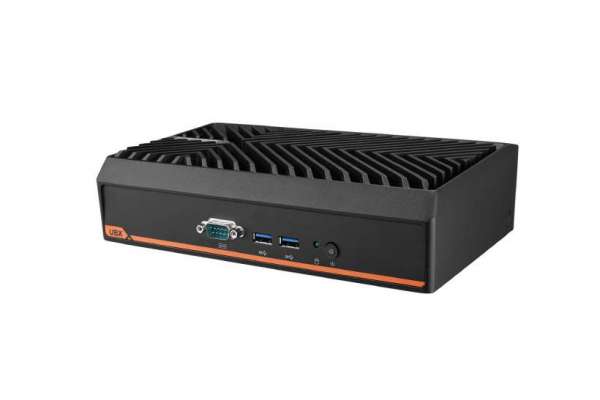

Front I/O
USB	USB 3.2 Gen1 Type A *2
COM	COM *1 (RS232 only)
Button	Power Pushbutton *1
LED	Data access LED *1
Rear I/O
Video	USB-C *1 HDMI2.1 *1 VGA *1 (Option BOM)*
Audio	Line-out *1
LAN	LAN 1/2: Intel i226; up to 2.5 Gbps
USB	USB 3.2 Gen1 Type A *2

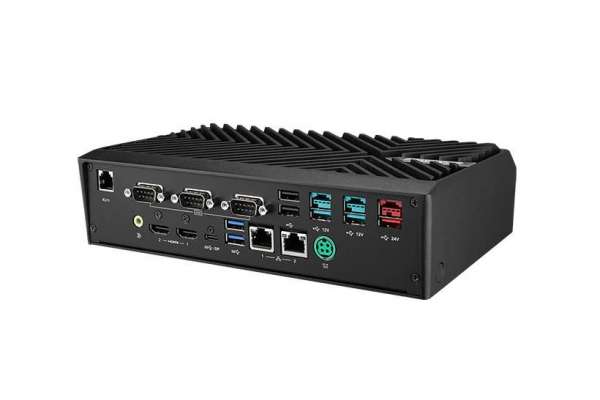

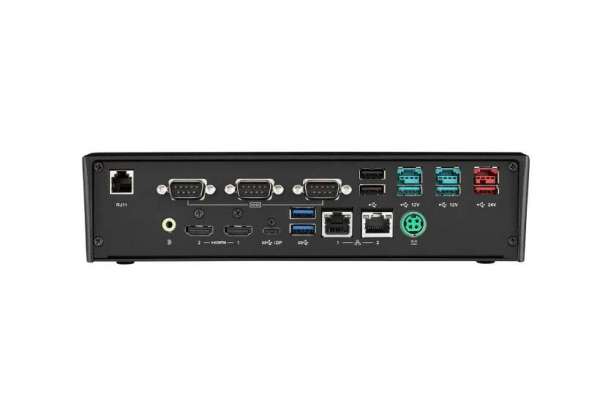

I/O Type A**	USB 2.0 Type A *2 24V Powered USB *1 12V Powered USB *2 5V/12V Powered COM *3 (Setting via jumpers; default: 5V) 12V/24V RJ12 for Cash Drawer *1 (default: 24V) DC 24V Power DIN4 *1

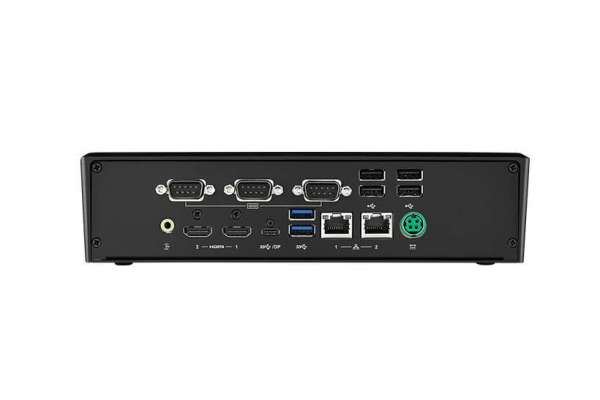

I/O Type B**	USB 2.0 Type A *4 COM *3 (RS232) DC 19V Power DIN4 *1
Expansion
WiFi/BT	M.2 E-Key 2230 *1
Storage	M.2 M-Key 2280 *2
Power Consumption
I/O Type A	N97 MB: Full loading: 144W Idle: 11W Core i3 N305 MB: Full loading: 154W Idle: 13W
I/O Type B	N97 MB: Full loading: 35W Idle: 11W Core i3 N305 MB: Full loading: 45W Idle: 13W
Mounting Option	Desktop/Wall/VESA
Wake on LAN	LAN 1
Operating System	Windows 10 IoTEnt LTSC Windows 11 IoT Linux
Environment
Operating Temperature	0~ 45 °C (No powered USB ports are used), with 0.7m/s airflow 0~ 35 °C (All powered USB ports are used), with 0.7m/s airflow
Storage Temperature	-20~ 60 °C
Physical
Dimensions (W x D x H)	234 x 145.77 x 58 mm
Weight	NW: 2.3 Kg GW: 3.0 Kg
Software	SUSI, DeviceOn
Certificate	CE, FCC Class B, CCC, BSMI, RF RED, EN 62368, ErP, CB, UL
