True-flat TFT LCD PC Advantech PPC-315SW ADL_N

15.6" Fanless Widescreen Panel PC with Intel® N97 Quad-Core Processor Advantech PPC-315SW ADL_N

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
PPC-315SW-PN9A	15.6" PPC w/Intel N97, P-Cap	60 059,8

PPC-300 ADL_N is a high-value, ultra-slim panel PC equipped with TFT LCD, and low-power Intel® N97 quad-core, 2.0GHz, processor to provide highperformance computing in a compact and fanless system. For high durability and functionality, the PPC-300 ADL_N features an IP66-rated front panel, multi-touch projected capacitive touchscreen, die cast aluminum alloy enclosure, two serial ports, four USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications.

• Intel® Alder Lake N97 2.0GHz quad-core processor
• 15.6"/18.5"/21.5" true-flat TFT LCD with projected capacitive touch control
• Fanless design with low power consumption
• Supports 1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 1), 1 x 2.5" SATA bay for storage
• Supports dual displays (1 x external DP)
• Supports iDoor
• Support PCI or PCIe
• Supports VESA 100
• IP66-rated front panel

Additional information

System
CPU	Intel® Alder lake N N97 quad core
Frequency	2.0 GHz upto 3.6GHz with Turbo
Cache	6 MB
Memory	1 x SODIMM, DDR5 4800MHz, max. 16GB
Storage	1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 1) 1 x 2.5" SATA bay*
Network (LAN)	2 x 10/100/1000/2500 Mbps Ethernet (Intel I226 LM)

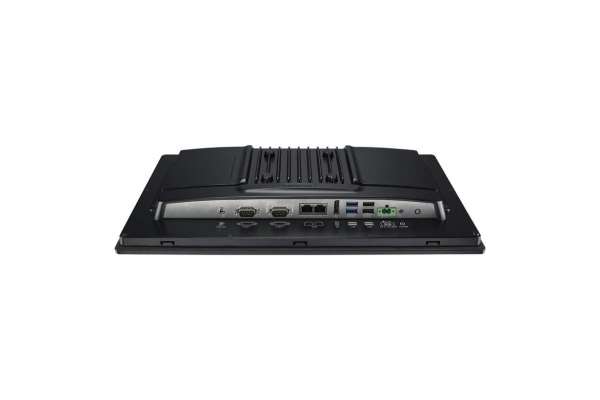

I/O	2 x RS-232/422/485 3 x USB 3.2, 1 x USB2.0 1 x GPIO & 2 x USB 2.0 (optional)* 1 x DP 1 x Line out
Expansion	1 x M.2 B key 2242 or 3042/3052 (SATA, PCIe X1 ,USB 3.0 & SIM slot) 1 x M.2 E Key 2230 (PCIe & USB 2.0) 1 x iDoor (optional)* 1 x PCI or PCIe x1 (optional)**
Watchdog Timer	255 timer levels; setup by software
Speaker	1 x 2W
Physical Characteristics
Dimensions	395.7 x 245.1 x 50.4mm (15.6 x 9.6 x 2.0 in
Weight	4.26 kg (9.4 lb)
OS Support
OS Support	Windows 10 LTSC, Windows 11, Linux, Andriod
Power Comsumption
Input Voltage	24VDC ± 20%
Power Consumption	35W (Burn-in test 8.1 in Windows 10 64-bit)
LCD
Display Type	15.6" FHD TFT LED LCD
Max. Resolution	1920 x 1080
Viewing Angle	89 (left), 89 (right), 89 (up), 89 (down)
Luminance (cd/m2 )	350
Contrast Ratio	800
Backlight Lifetime	50,000hrs (min.)
Touchscreen
Touchscreen	Multi-touch projected capacitive
Light Transmission	>86%
Controller	USB Interface
Environment
Operating Temperature	-10 ~ 50 °C (32 ~ 122 °F)
Storage Temperature	-20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity	95% @ 40 °C (Non-Condensing)
Shock	Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration	Operating Random Vibration Test 5~500Hz, 2Grms @with SSD, Follows IEC 60068-2-64
EMC	CE,FCC Class B, BSMI, EN60601-1-2, UKCA
Safety	CB, UL, CCC, UKCA
Front Panel Protection	IP66 compliant
