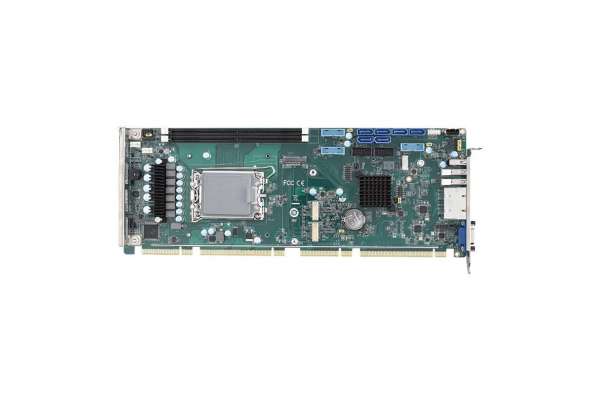

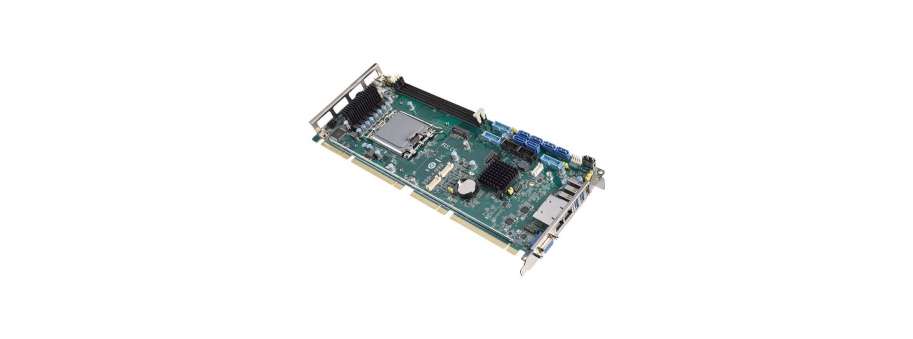

LGA1700 12th Generation Intel® Core™ i9/i7/i5/i3/Pentium® System Host Board with DDR5, SATA 3.0, USB 3.2, M.2, Dual 2.5GbE, and Triple Displays Advantech PCE-5133
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PCE-5133G2-00A1 | LGA1700 R680E FSHB DDR5/Core i9/VGA | 45 852,7 |
- Intel® Core™ i9/i7/i5/i3/Pentium LGA1700 processor with R680E chipset
- Up to 64 GB of dual-channel (ECC/ non-ECC) DDR5 4800 MHz
- PCIe 3.0, M.2, USB 3.2, SATA 3.0, Dual 2.5GbE LAN and SW Raid 0, 1, 5, 10
- Supports VGA and 2 x DVI-D/DP/HDMI display (with optional cable)
- Supports out-of-band remote management with AMT
- Supports Advantech’s TPM and COM modules, SUSI 4.0, and embedded software APIs
Note: Legacy platform is not supported.
| CPU | i9- 12900(E) | i9- 12900TE | i7- 12700(E) | i7- 12700TE | i5- 12500(E) | i5- 12500TE | i3- 12100(E) | i3- 12100TE | Pentium G7400E | Pentium G7400TE | Celeron G6900E | Celeron G6900TE |
| P-core Base Frequency | 2.3GHz | 1.1GHz | 2.1GHz | 1.4GHz | 2.9GHz | 1.9GHz | 3.2GHz | 2.1GHz | 3.6GHz | 3.0GHz | 3.0GHz | 2.4GHz |
| L3 Cache | 30MB | 30MB | 25MB | 25MB | 18MB | 18MB | 12MB | 12MB | 6MB | 6MB | 4MB | 4MB |
| Cores | 16 | 16 | 12 | 12 | 6 | 6 | 4 | 4 | 2 | 2 | 2 | 2 |
| Processor Base Power | 65W | 35W | 65W | 35W | 65W | 35W | 65W | 35W | 46W | 35W | 46W | 35W |
Additional information
Processor System |
|
| Socket | LGA 1700 |
| Chipset | R680E |
| BIOS | AMI 256MB SPI Flash |
Bus |
|
| PCI-Express | 1 x PCIe x16/2 x PCIe x8 and 1 x PCIe x4 to backplane |
| PCI | 4 x PCI master to backplane, 32-bit, 33 MHz |
Memory |
|
| Technology | Dual-channel (ECC/non-ECC) U-DIMM DDR5 4800 MHz |
| Max. Capacity | Up to 64GB (based on CPU) |
| Socket | 2 x DDR5 288-pin DIMM |
Graphics |
|
| Controller | Chipset integrated with Intel® UHD Graphics |
| VRAM | Shared system memory is subject to OS |
| VGA | Supports resolutions of up to 2048 x 1152 pixel @ 60 MHz |
| DVI-D | Supports resolutions of up to 1920x 1200 @ 60 MHz |
| Display Port | Supports resolutions of up to 4096 x 2160 @ 60 MHz |
| HDMI | Supports resolutions of up to 1920 x 1080 @ 60MHz |
| Triple Display | 1st: VGA, 2nd DP/DVI-D/HDMI, 3rd DP/DVI-D/HDMI (2nd and 3rd display via optional cable) |
Ethernet |
|
| Interface | 10/100/1000/2500 Mbps |
| Controller |
|
| Connector with LED | 2 x RJ45 |
Rear I/O |
|
| USB 3.2 Gen2 | 2 |
| USB2.0 | 1 |
| Ethernet | 2 |
| VGA | 1 |
Internal Connector |
|
| USB | 5 x USB 2.0 ( 1 USB Type A + 4 to backplane), 6 x USB 3.2 |
| SATA (SW Raid 0,1,5,10) | 6 |
| M.2 (2280 Type M) | 1 (PCIe x4) |
| DP/DVI-D/HDMI | 2 (Pin header) |
| COM | 2 x RS232 |
| GPIO | 8bit |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1-255 sec |
Miscellaneous |
|
| Audio | Intel® High Definition audio interface (requires audio extension module PCA-AUDIO-HDB1E) |
Power Requirement |
|
| Test Environment | Intel i9-12900E, Memory *2 DDR5 16GB |
| Voltage | +3.3V, +5V, +12V |
| Current | 2.52A, 4.13A, 6.86A |
Environment |
|
| Temperature |
|
| Humidity |
|
Physica |
|
| Dimensions (L x H) | 338 x 122 mm (13.3" x 4.8") |
