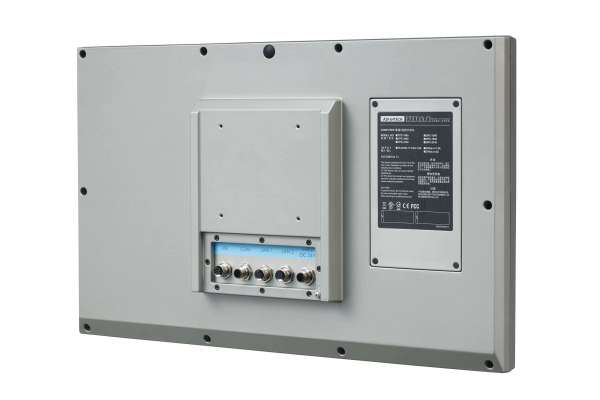

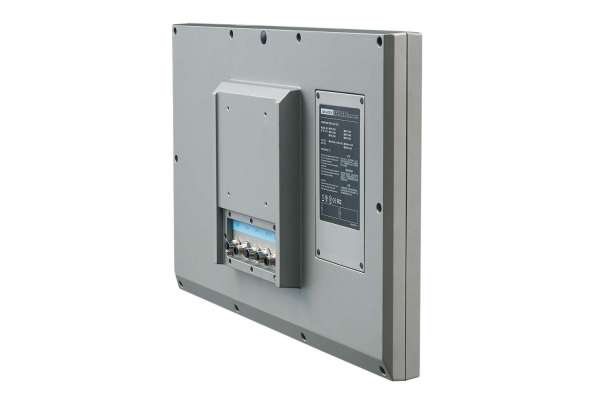

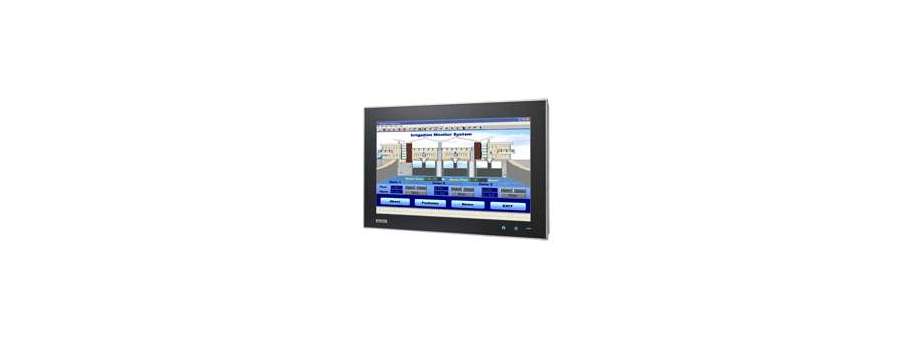

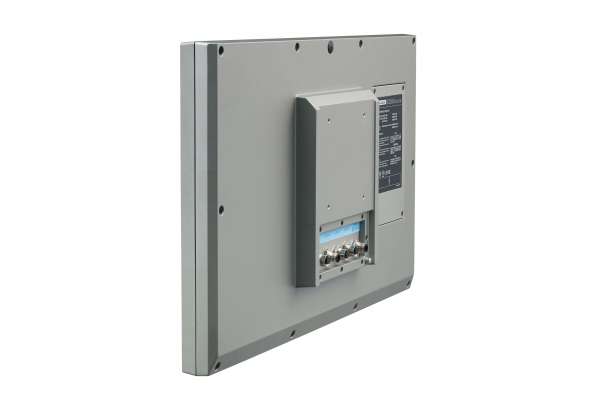

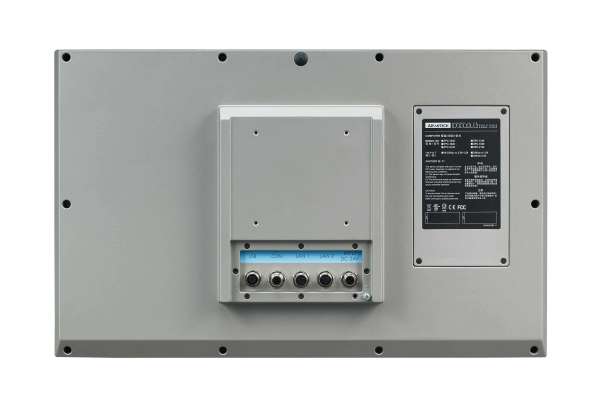

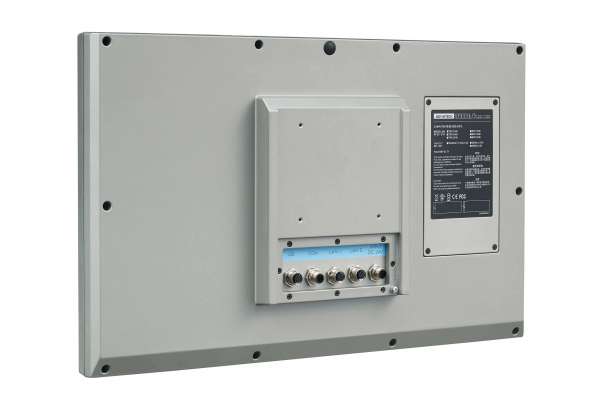

21.5" Full HD LED LCD Multi-Touch Panel Computer all-around protected IP66 Advantech SPC-221
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| SPC-221-633AE | Панельний комп`ютер Advantech SPC-221, захист IP65 по колу, 21.5" all-around panel PC w/ i3-6100U /8G RAM | 195 402,0 |
With a brand-new ID design, the SPC-221 series have high resolution 21.5" displays and PCT multi-touch screens in 16:9 wide format. By embedding an Intel® Skylake Core™ i3-6100U 2.3 GHz processor (Dual-Core), the SPC-221 can support advanced graphical performance in complex applications. It has built-in function and home key buttons for greater usability and also supports a Mini-PCIe slot for communication function expansion. It also has an all-round IP66 waterproof casing design with M12 connectors. With this vertical I/O connector, cable routing is simplified, safer, and more reliable for stationary / VESA arm applications.
- 21.5" Full HD TFT LED LCD display
- Intel® Skylake Core™ i3-6100U 2.3 GHz processor (Dual-Core)
- 16:9 wide screen with PCT multi-touch
- Built-in function and home key buttons for intuitive UI
- Anti-scratch touch surface: 7H hardness
- All-round IP66 protection with waterproof M12 connector
- Supports Mini-PCIe expansion slot
- Front LED indicator to show operating status
- Fanless cooling system
Additional information
Product Specifications |
SPC-221-633AE |
Display |
|
|
Size |
21.5" |
General |
|
| Power Consumption |
35 W (typical) |
| Power Input |
24 VDC |
| Mounting |
VESA Arm |
| Certifications |
BSMI, CCC, CE, FCC Class A, UL |
| Cooling System |
Fanless design |
| OS Support |
Microsoft® Win7/8/10/WES7P |
| Weight (Net) |
9 kg (19.8 lbs) |
| Enclosure Housing |
Front bezel: Die-cast Aluminium alloy, Back housing: Die-cast Aluminium alloy |
| Dimensions |
558.4 x 349.8 x 65 mm (21.98” x 13.77” x 2.56”)
|
Hardware |
|
|
CPU |
Intel 6th Core i3-6100U, 2.3GHz |
|
Memory |
8GB SO-DIMM DDR3L SDRAM |
|
Storage |
2.5" SATA HDD bracket x 1 |
| Chipset |
AMD A50M FCH |
|
LAN |
10/100/1000Base-T x 2 (connection:M12 A-coded, 8-pin female) |
| Expansion Slots |
Full-sized Mini PCIe slot x 1 (optional) |
|
I/O |
RS-232 x1 (connection:M12 A-coded, 8-pin male), USB 2.0 x1 (connection:M12 A-coded, 8-pin female), 24 VDC power input (connection:M12 A-coded, 5-pin male) |
LCD Display |
|
|
Viewing Angle (H/V°) |
178/178 |
|
Luminance (cd/m2) |
300 |
|
Max. Resolution |
1920 x 1080 |
| Max. Colors |
16.7 M |
| Display Type |
Full HD TFT LED LCD |
|
Backlight Life (hrs) |
50,000 hrs |
Environment |
|
|
Ingress Protection |
All around IP65 |
|
Vibration Protection |
With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) |
|
Operating Temperature |
0 ~ 55°C (32 ~ 131°F) |
|
Storage Temperature |
-20 ~ 60°C (-4 ~ 140°F) |
| Humidity |
10 ~ 95% RH @ 40°C, non-condensing Note: Tested for 48hrs |
Touchscreen |
|
| Light Transmission |
88% |
|
4096 x 4096 dot |
|
| Type |
Projected capacitive |
