Extended T range
IP65
Stainless Steel

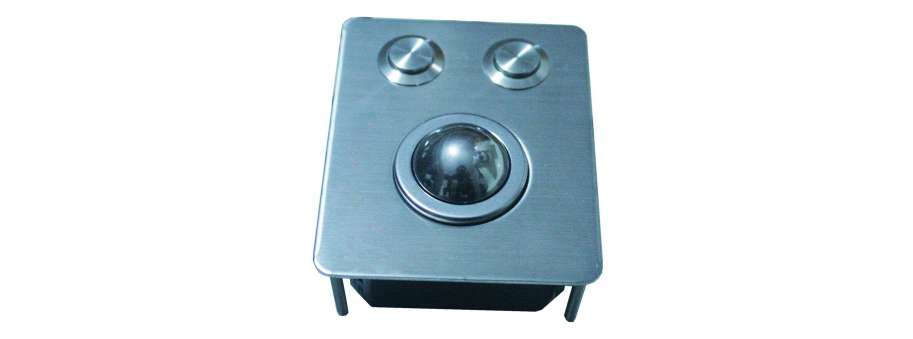

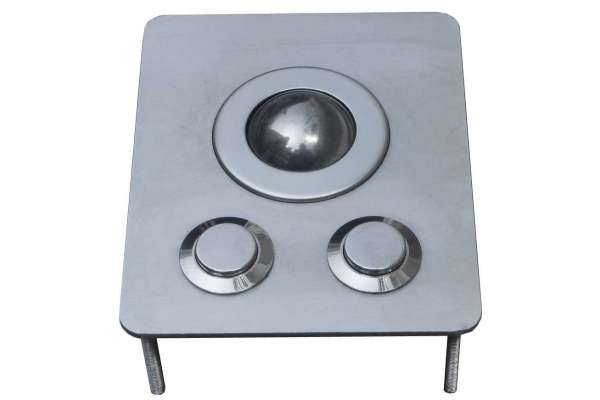

25mm(1.0’) or 38.0mm (1.5') vandal proof IP65 stainless steel LASER trackball with high resolution, two mouse keys X-Key X-BP21F-R
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| X-BP21F-R | Промисловий лазерний трекбол X-BP21F-R, шар 25мм, захищений від вандалізму, IP65 з нержавіючої сталі, з високою роздільною здатністю, двома клавішами миші та можливістю монтажу на панелі. 67.0mm x 82.0mm (front panel) | 5 881,1 | |
| X-BP22F-R | Промисловий лазерний трекбол X-BP22F-R, шар 25мм, захищений від вандалізму, IP65 з нержавіючої сталі, з високою роздільною здатністю, двома клавішами миші та можливістю монтажу на панелі. 67.0mm x 82.0mm (front panel) | 5 881,1 |
- 25mm trackball with 2 mouse keys.
- 2. Suitable for moist and dusty environments.
- 3, Ideal for use in environments ranging from manufacturing to material handling to medical settings.
- 4, IP65 from front panel
- Product description: 25mm(1.0) or 38.0mm (1.5') vandal proof IP65 stainless steel mechanical or laser trackball with high resolution, two mouse keys, with front panel mounting solution.
Additional information
Mechanical |
|
| Key | 2 keys, quality brushed stainless steel, two round stainless steel sealed switches |
| Front Plate | Quality brushed stainless steel |
| Key Travel | 1.3.0mm |
| Ball diameter | 25mm(1.0’) |
| Key switch lifespan | more than 10 Mio actuations |
| Track ball lifespan | > 10 Mio revolutions |
| Actuation Force | 4 N |
| Dimension | 67.0mm x 82.0mm |
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
Electrical |
|
| Power supply | 5V DC+ 10%, keyboard interface |
| Protection level | IP65 (front panel), NEMA3 |
| EMC Standard | EN55022(B) |
| Power consuming |
|
| Contact Material | Gold/Carbon |
Environmental |
|
| Operating temperature | -20°C-+ 60°C |
| Storage temperature | - 30°C-+ 70°C |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa. |
Reliable |
|
| Certificates | RoHS compliant, CE and FCC certified. IP65 front panel. |
| MTBF | >50000h |
| MTTR | < 30min |
| OS | OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista/7/8/10, Linux, Unix, Mac OS9 / OSX |
| Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton |
