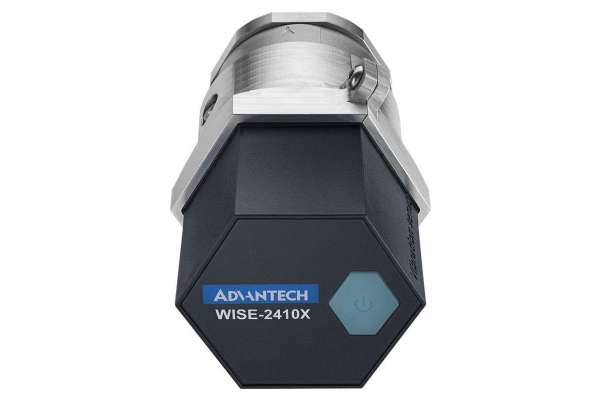

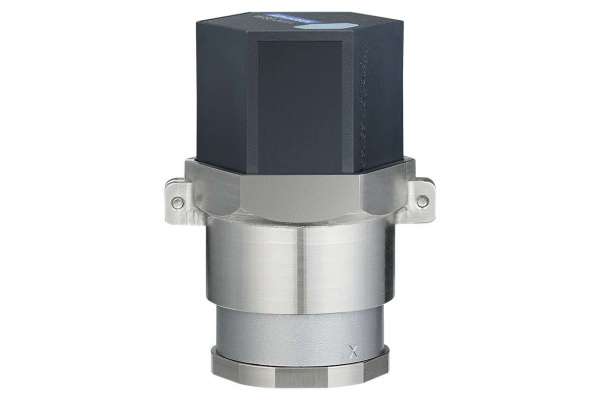

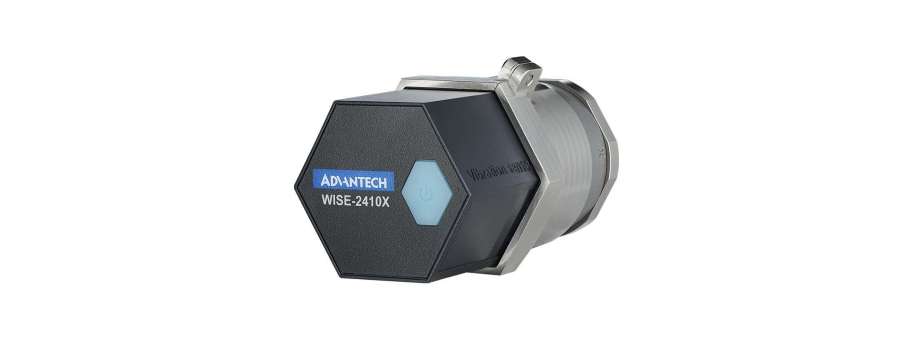

Explosion Proof LoRaWAN Wireless Condition Monitoring Sensor Advanteсh WISE-2410X
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| WISE-2410X-E21NA | Explosion Proof LoRaWAN Smart Vibration Sensor | 27 913,4 | |
| WISE-2410X-A02NA | Explosion Proof LoRaWAN Smart Vibration Sensor | 27 396,7 |
WISE-2410X is an Explosion Proof LoRaWAN wireless condition monitoring sensor integrated with an ARM Cortex-M4 processor, LoRa transceiver, 3-axis accelerometer and temperature sensor. It balances the wireless bandwidth between WISE-2410X and the gateway, so it also mitigates the data transmission fail rates between edge-devices and gateways.
Star Topology
WISE-2410X is a LoRaWAN uses a star network topology and features a gateway data relay function between sensors and the application server. The communication between the sensors and gateway goes over the wireless channel, utilizing the LoRa physical layer, whilst the connection between the gateways and the central server are handled over a backbone IP-based network or over Modbus protocol to the application server/
Computing on Board
With an ARM Cortex-M4 Processor, WISE-2410X enables users to implement more features inside. WISE-2410X is able to calculate more complex eigenvalues itself, such as VRMS, ARMS, Peak, Displacement, Kurtosis, Crest factor, Skewness and Standard Deviation values. With its edge computing capability, WISE-2410X can balance the loading between WISE-2410X, gateway, and cloud service.
Plug & Play with 2-year Battery life cyle
WISE-2410X includes a 3.6V AA battery holders. Along with LPWAN technology verified by Advantech, the battery life on WISE-2410X can be up to 2 years with once per hour data update interval time(with 2 batteries condition only). With IP65 protection design, WISE-2410X is ideal for Low-Power Wide-Area Network (LPWAN) applications, such as pumps, HAVC system, motors, facility monitoring and more. WISE-2410X connects to Advantech’s WISE Studio Utility for more user friendly and efficient installation.
- LoRaWAN wireless connectivity
- Built-in 3-axis accelerometer and temperature sensor
- On-board computing. Directly sends VRMS, ARMS, Peak, Displacement, Kurtosis, Crest factor, Skewness and Standard Deviation values to applications
- Support battery power and remote configuration settings, no wiring installation needed
- Easy settings with user friendly interfaces on WISE Studio utility
- ISO 10816-1 compliant
- Support wide temperature 0 ~ 70 °C
- IP65 enclosure design
- IECEx Zone 2, Zone 21, ATEX2 compliant
Additional information
Wireless Communication |
|
| Frequency Band | EU 863-870 (MHz) / RU 864-870 (MHz) |
| Spreading Factor | 7~12 |
| Transmit Power | Up to 20dBm |
| Topology | Star (LoRa/LoRaWAN) |
| Sensitivity | -148dB |
| Data Rate | 50 kbps at FSK mode EU |
General |
|
| Power Input | 3.6V AA Battery (Not included) (Battery use only Vitzrocell Co., Ltd. SB-AA11, Li - SOCl2, 3.6V, 2.5 Ah) |
| Battery Life | 1 years (Zone21 Condition with 1 battery, once per 30mins data update interval time) 2 years (Zone2 Condition with 2 batteries, once per 30mins data update interval time) |
| LED Indicator | Power, Txv |
| Configuration Interface | Micro-B USB |
| IP Class | IP65 |
| Mounting | Stud mount, Mounting pad and Adhesives |
| Dimension (H x D) | 84.7 x 63.5 mm |
| Certification | CE (RED), FCC, NCC, TELEC, VCCI, BSMI, IECEx Zone2, Zone21 (IECEx UL 21.0053X) |
Environment |
|
| Operating Temperature | 0°C ~ 70°C (Battery powered) |
| Operating Humidity | 10% ~ 95% RH |
| Storage Temperature | -25°C ~ 90°C |
| Storage Humidity | 5% ~ 95% RH |
3-Axis Accelerometer Sensor |
|
| Axis | X-Y-Z |
| Frequency Range | 10~1000Hz |
| Amplitude Range | ±16g |
| Statistical Time-Domain | Velocity RMS, Acceleration (RMS & peak), Displacement, Kurtosis, Crest factor, Skewness, Standard deviation |
| Output Data Rate | 6.6kHz |
| Resolution | 10 bit (all g range) |
| Accuracy (FC =100Hz) | Under 5% |
| Noise (MAX. TA = 25°C. 0g) | ±40mg |
| Nonlinearity | ±0.5 % |
| Cross-Axis Sensitivity | ±1 % |
| Sensitivity Change Due to Temperature | ±0.02 %/°C |
Temperature Sensor |
|
| Measurement Range (TA = 25°C) | 0°C ~ 70°C |
| Accuracy (TA = 27°C, Directly contact with heat source (Metal Base of WISE-2410) | -1°C with 70°C |
