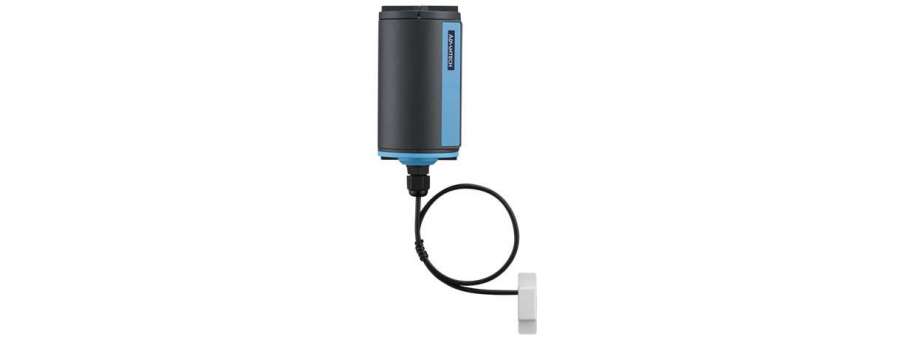

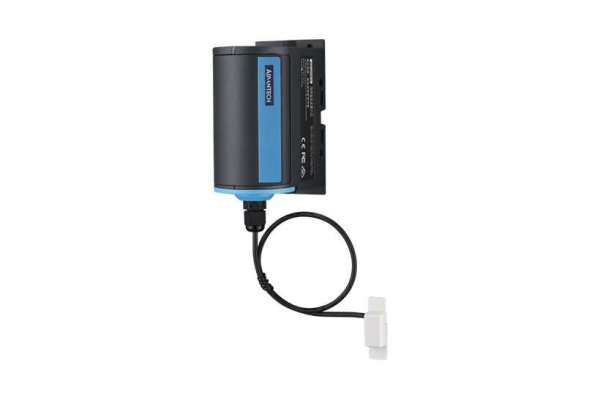

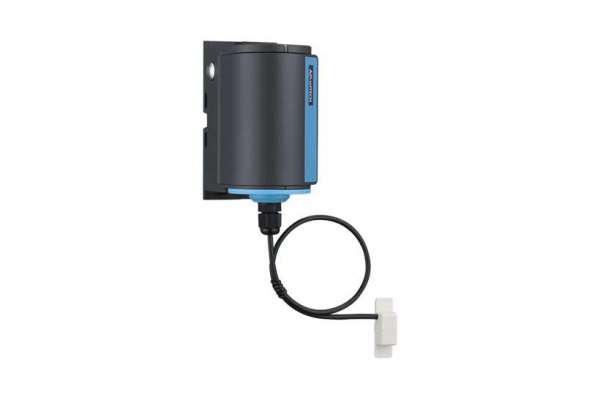

LoRaWAN Wireless Water Leakage Sensor Advantech EVA-2510
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EVA-2510-NA | LoRaWAN Water Leakage Sensor NA915 | 7 625,8 | |
| EVA-2510-EA | LoRaWAN Water Leakage Sensor EU868 | 7 625,8 | |
| EVA-2510-TA | LoRaWAN Water Leakage Sensor AS923 | 7 625,8 | |
| EVA-2510-ZA | LoRaWAN Water Leakage Sensor AU915 | 7 625,8 |
EVA-2510 is a water leak detection sensor, can be used in cooling system, water treatement system, etc. It can reduce the risk by alerting you to problems quickly so you can act to prevent severe damage. With it’s wide range, high penastrationrate LoRa connectivity, the data transmission range can up till hundred or thousand meters away. EVA-2510 can be installed directly on the walls, metal box or poles. EVA-2510 ispowered by 2 AA 3.6v Li-ion batteries, battery life can up till 5 years basing on certain condition.
- LoRaWAN wireless connectivity
- 3.5mm water line diameter
- Battery life up till 5 years@25 °C, 15mins interval setting
- Easy to deploy and maintain
Additional information
Wireless Communication |
|
| Frequency Band | EU 863-870 (MHz) / US 902-928 (MHz) / AU 915-928 (MHz) / AS 919-924 (MHz) |
| Spreading Factor | 7~12 |
| Transmit Power | Up to 20dBm |
| Topology | Star (LoRa/LoRaWAN) |
| Sensitivity | -148dB |
General |
|
| Power Input | 3.6V AA Battery *2pcs (Not included) |
| Battery Life | 5 years@25 °C, 15mins interval setting |
| LED Indicator | Power on, TX, reset to default |
| Configuration Interface | Wireless downlink commands |
| IP Class | IP30 |
| Mounting | Wall, Magnetic, Pole |
| Dimension (H x W x D) | 112 x 51 x 71.5 mm |
| Certification | CE (RED), FCC, TELEC, RCM, NCC |
Environment |
|
| Operating Temperature | -20°C to 55 °C |
| Operating Humidity | 0% ~ 90% RH |
| Storage Temperature | -40°C ~ 85°C |
| Storage Humidity | 0% ~ 90% RH |
Water Leak Sensor |
|
| Water Line Diameter (max) | 3.5mm |
| Water Line Length | Water Line Length |
| Water Line Flame Resistance Rating | VW-1 |
| Water Line Length Limit | 300m (theoretical value) |
