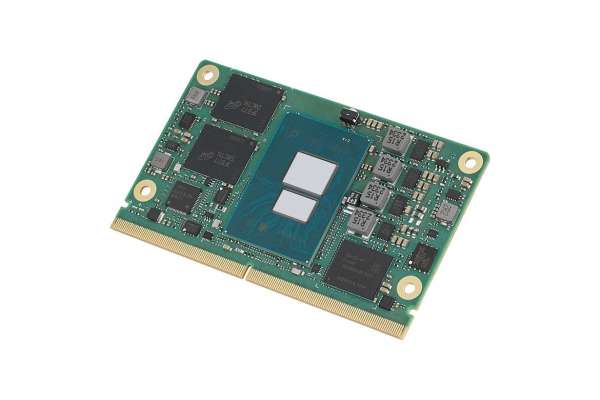

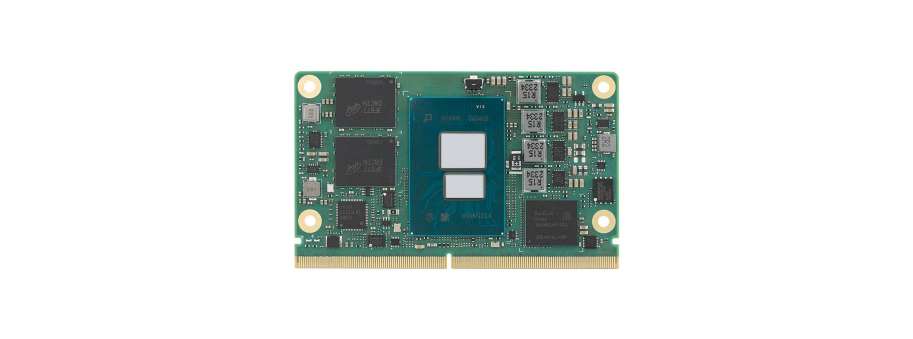

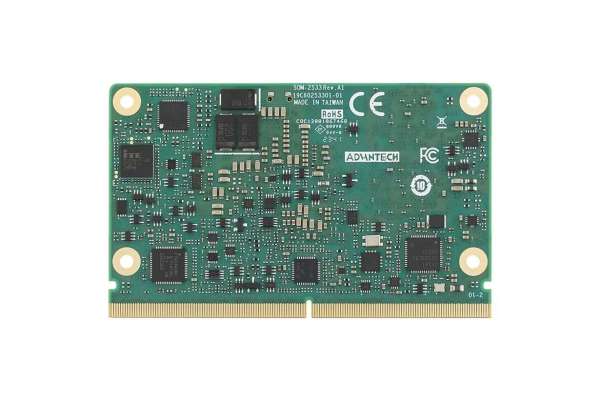

SMARC Module Advantech SOM-2533/R

Intel® Core-i®/Pentium®/Celeron® and Atom® x7000 Series Processors (Code Name: Alder Lake-N/Amston Lake) SMARC Module Advantech SOM-2533/R

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
SOM-2533DNCC-S8A1	SMARC i3-N305 16GLPDDR5 64GEMMC 2*LAN/CAN	44 898,6
SOM-2533CCBC-S5A1	SMARC x7425E 8GLPDDR5 32GEMMC 2*LAN/CAN	25 957,2
SOM-2533CN0C-S8A1	SMARC i3-N305 8GLPDDR5 32GEMMC 2*LAN	40 911,7
SOM-2533BN0C-U0A1	SMARC N97 4GLPDDR5 32GEMMC 2*LAN	23 218,6
SOM-2533BN0C-S0A1	SMARC N200 4GLPDDR5 32GEMMC 2*LAN	28 853,7
SOM-2533AN0C-S0A1	SMARC N50 4GLPDDR5 eDP 32GEMMC 1*LAN	22 192,3
SOM-2533RDCBX-S3A1	SMARC x7835RE 16GLPDDR5 32GEMMC 2*LAN/CAN	66 693,5
SOM-2533RCCBX-S5A1	SMARC x7433RE 8GLPDDR5 32GEMMC 2LAN/CAN	51 142,5
SOM-2533RBC0X-S0A1	SMARC x7211RE 4GLPDDR5 32GEMMC 2LAN/CAN	40 616,1

• SMARC2.1.1 pinout
• Intel® Core-i®/Pentium®/Celeron® and Atom® x7000 Series Processors
• Single-CH LPDDR5 4800MT/s up to 16GB, support IBECC
• Triple displays up to 4K2K (DP++, HDMI, LVDS/eDP/MIPI-DSI)
• Multiple I/O expansion: PCIe gen3, USB3.2 Gen2, SATA, CAN-bus
• On board eMMC up to 64GB (Optional)
• Supports iManager, Embedded Software APIs and Wise-DeviceOn

Processor System
CPU	N50	N97	N200	i3-N305	x7425E	x7832RE	x7433RE	x7211RE
Base Frequency	1.0 GHz	2.0 GHz	1.0 GHz	1.0/1.8 GHz	1.5 GHz	1.3 GHz	1.5 GHz	1.0 GHz
Max Single Core Turbo Frequency	3.4 GHz	3.6 GHz	3.7 GHz	3.8 GHz	3.4 GHz	3.6 GHz	3.4 GHz	3.2 GHz
Cores	2	4	4	8	4	8	4	2
LLC	6 MB	6 MB	6 MB	6 MB	6 MB	6 MB	6 MB	6 MB
CPU TDP	6W	12W	6W	9/15W	12W	12W	9W	6W
IBECC	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
BIOS	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit
Graphics
EU	16	24	32	32	24	32	32	16
Base. Frequency	600 MHz	850 MHz	450 MHz	1.0 GHz	800 MHz	800 MHz	600 MHz	400 MHz
Max. Frequency	750 MHz	1.2 GHz	750 MHz	1.25 GHz	1.0 GHz	1 GHz	800 MHz	800 MHz

Additional information

Form Factor
Form Factor	SMARC
Pin-out Type	SMARC2.1.1
Processor System
BIOS	AMI UEFI 256Mbit
Memory
Technology	LPDDR5
Speed	4800 MT/s
Max. Capacity	Up to 16GB
Channel/Socket	Single Channel / Memory down
ECC Support	IBECC Supported by Specific CPU SKUs
Graphics
Controller	Intel® UHD Graphics
3D/HW Acceleration	Open GL 4.6, DirectX 12.1 Vulkan 1.2 (Windows) Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)
Display
LCD (LVDS/eDP)	1port LVDS Dual Channel: 1920 x 1200 @60Hz/eDP 1920 x 1080 @60Hz (Up to eDP 4096 x 2304 by specific SKU)
DDI (HDMI/DisplayPort)	1 DDI Port Support Configurable HDMI/DisplayPort -HDMI 2.0b: 4096 x 2034 @ 60Hz -DisplayPort 1.4: 4096 x 2034 @ 60Hz
HDMI	HDMI 2.0b: 4096 x 2034 @ 60Hz
Multiple Display	Triple Simultaneous Independent Display
Expansion
PCI Express x1 (Gen3)	3 PCIe x1 by default, 1 PCIe x1 by option; Support Configurable 1 PCIe x4 by option
Audio Interface	HD Audio/ Up to 2 I2S
eSPI	Yes
Serial Bus
SMBus	Yes
I2C Bus	Yes
Ethernet
Gigabit	2 Ports support 10M / 100M / 1000M / 2.5G speeds, Support TSN by specific SKU; 1 SERDES reserved by option
I/O
SATA3.0	1 Port (6 Gbps)
USB3.2 (Gen2)	2 Ports (10 Gbps)
USB2.0	6 Ports (480 Mbps)
SPI Bus	Yes. For BIOS EEPROM
GPIO	8-bit
Onboard Storage	eMMC up to 64GB (Optional)
Watchdog	65536 level, 0 ~ 65535 sec
COM Port	1 Ports (4-Wire), 3 Ports (2-Wire)
TPM	fTPM
CAN Bus	2 Ports
Power
Type	ATX: Vin, VSB; AT: Vin
Supply Voltage	Vin: 4.75-5.25V, RTC Battery: 2.0V ~ 3.3V
Power Consumption (Max.)	TBD
Power Consumption (Idle)	TBD
Environment
Operating Temperature	Standard: 0 ~ 60 °C (32 ~ 140 °F) Extend: -40 ~ 85 °C (-40 ~ 185 °F)
Storage Temperature	-40 ~ 85 °C (-40 ~ 185 °F)
Humidity	Operating: 40 °C@95% relative humidity, non-condensing Storage: 60 °C@95%relative humidity, non-condensing
Vibration Resistance	3.5 Grms
Mechanical
Dimensions	84 mm x 50 m
