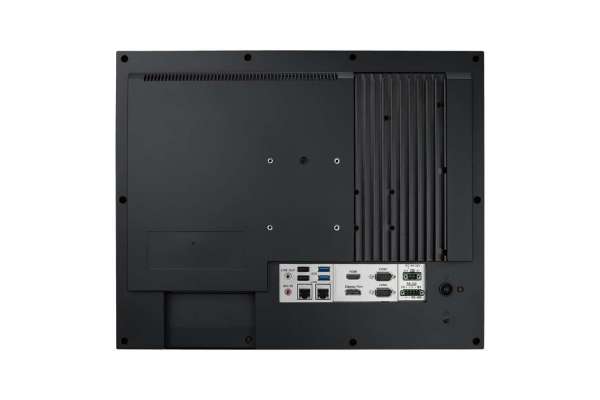

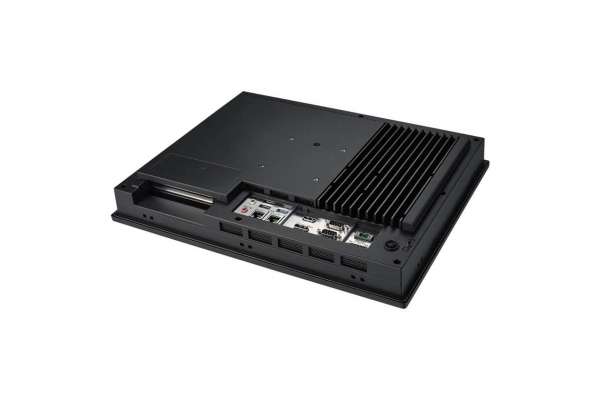

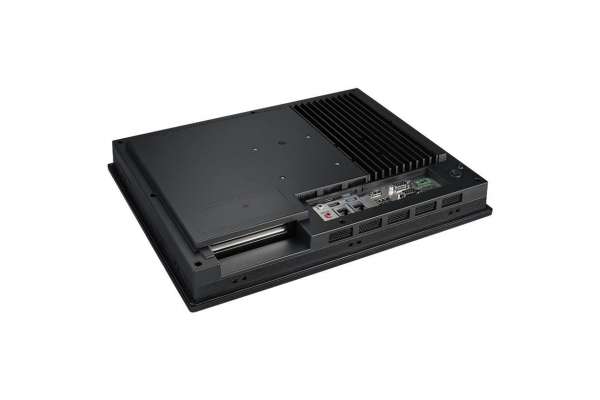

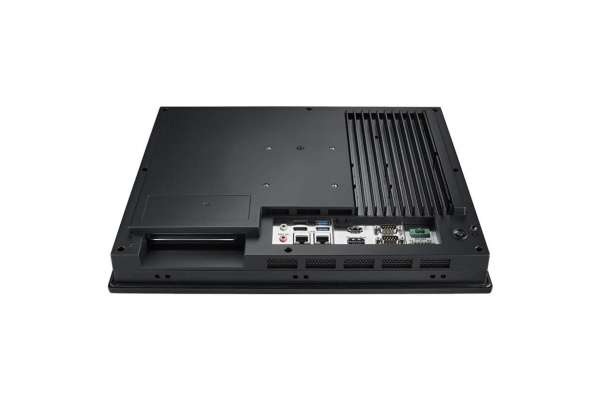

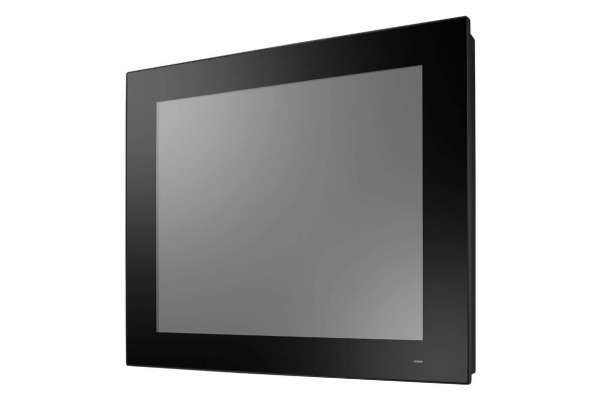

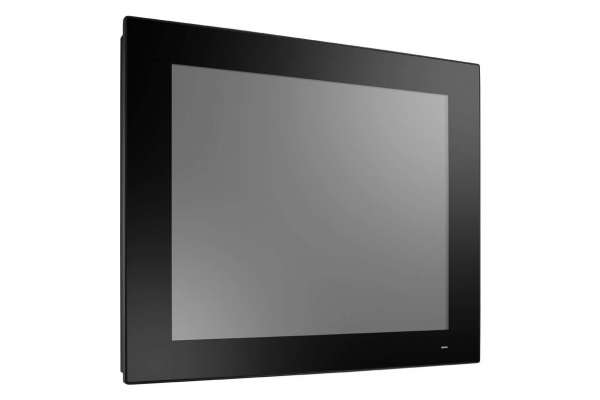

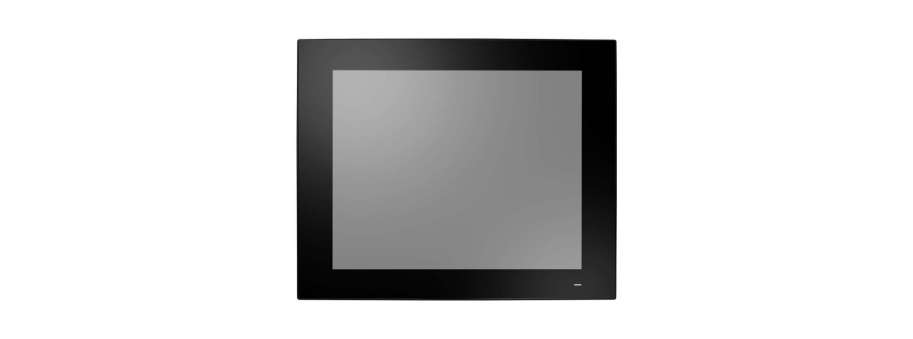

17" Fanless Panel PC with Intel® Atom™ x6425E Processor with resistive or projected capacitive touchscreen Advanech PPC-417 EHL

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-417-RX6A Панельний комп'ютер Advantech, 17" PPC w/Intel x6425E, Res.  86 918,7

The PPC-417 is a 17" fanless panel PC equipped with a high-performance Intel® Atom™ x6425E quad-core, 2.0 GHz, processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 2 x USB 3.2, 1 x isolated RS-422/485, and dual Intel® Gigabit Ethernet, ensures easy integration and connectivity. With the inclusion of 1 x PCI/PCIe expansion slot, the PPC-417 can be integrated with fieldbus protocols or proprietary cards for increased application potential.

  • 17” SXGA TFT LCD with resistive (default)or projected capacitive(by request) touchscreen
  • Intel® Atom™ x6425E quad-core, 2.0 GHz processor
  • Fanless, slim design
  • Supports 1 x 2.5" SATA and 1 x M.2 B key slot for expansion
  • 1 x PCI/PCIe x1 expansion slot
  • Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
  • Wide range DC support (9 ~ 32 VDC)
  • 1 x isolated RS-422/485 with automatic flow control
  • Dual 2.5GBASE-T Ethernet supports Time-Sensitive Network(TSN) technology
  • Optional GPIO (8 channels, TTL level)

Additional information

System
CPU Intel® Atom™ x6425E quad core
Frequency 2.0 GHz
L2 Cache 1.5 MB
Memory 1 x SODIMM DDR4 3200 MHz (max. 32 GB)
Storage
  • 1 x 2.5" SATA bay
  • 1 x M.2 B key bay(size: 2242/2280 or 3042/3052 mm; Singal: SATA, PCIe X1, USB 3.0)
Network (LAN) 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226)
I/O
  • 5 x Serial ports: 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation,2 x RS-232 (on right side optional)
  • 2 x USB 3.2, 3 x USB2.0 (2pcs default, 1pcs by request)
  • 1 x Line-Out, 1 x Mic-In
  • 1 x HDMI 1.4
  • 1 x DisplayPort (1.4)
  • 1 x 8bit GPIO (Optional) 1 x TPM2.0
Expansion
  • 1 x M.2 2230 E Key slot for wireless card
  • 1 x PCIe x1 (default),
  • 1 x PCI (optional); 1 x Cfast card (optional)
Watchdog Timer 255 timer levels, set up by software
Speaker 2 x 1W

Physical Characteristics
Dimensions 437 x 357 x 56.5 mm (17.2 x 14.0 x 2.22 in)
Enclosure Front bezel: Die cast aluminum alloy Rear: ABS
Mounting Panel Mount (Default); VESA Mount/ Desktop/ Wall (optional)
Weight 6.3 kg (13.89 lb)

OS Support
OS Support Microsoft® Win10 IOT LTSC (64-bit),Win11, Linux

Power Consumption
Input Voltage 9 ~ 32 VDC
Power Consumption 65W (Burn-in test 8.1 in Windows 10, 64 bit)

LCD
Display Type 17" TFT LED panel
Max. Resolution 1280 x 1024
Viewing Angle 80 (left), 80 (right),60 (up), 80 (down)
Luminance (cd/m2 ) 350
Contrast Ratio 800
Backlight Lifetime 50, 000 hr (min.)

Touchscreen
Touch Type 5-wire analog resistive
Light Transmission 81+/-3%
Controller USB interface

Environment
Operating Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature -40 ~ 60 °C (-40 ~ 140 °F)
Relative Humidity 95% @ 40 °C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC CE, FCC Class B, EN 61000-6-2, BSMI, VCCI, UKCA
Safety CB, UL, CCC, UKCA
Front Panel Protection IP66 compliant
