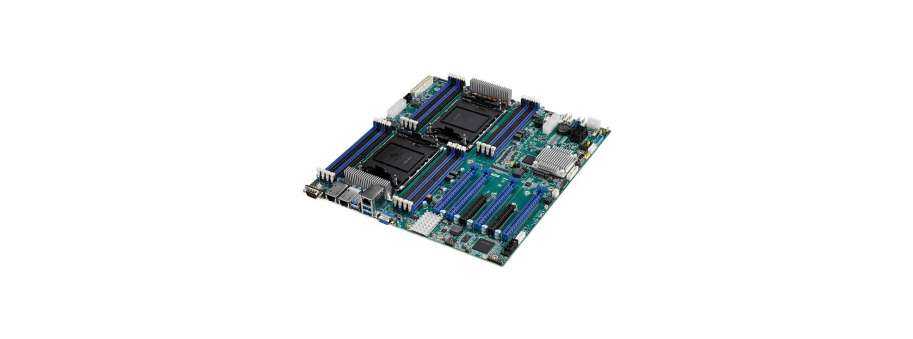

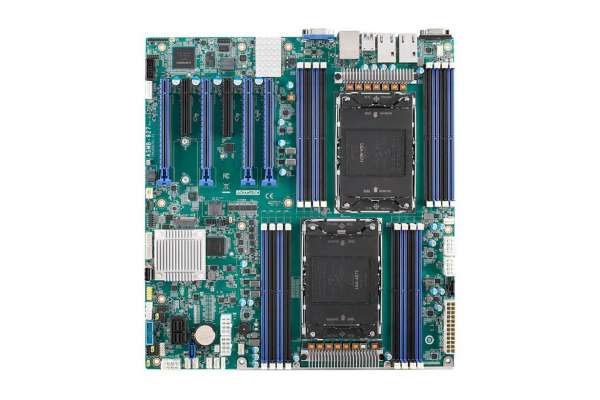

Dual LGA4677 4th Gen Intel® Xeon® Scalable EATX Server Board with 16 DDR5, 4 PCIe x16, 9 SATA3.0, 6 USB 3.2 (Gen1), Dual 10GbE, and IPMI Advantech ASMB-927
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ASMB-927T2-00A1 | LGA4677 EATX SMB 16 DIMM/4 PCIe x16/2 10GbE/IPMI | 98 696,0 |
- LGA4677 EATX server board with 4th Gen. Xeon® Scalable processor
- DDR5 4800 MHz RDIMM up to 4TB (16 DIMMs) supports Intel® Optane™ Persistent Memory
- Four PCIe x16 and two PCIe x8
- Intel® X710-AT2 dual 10GbE ports
- Nine SATA3.0 and one M.2 connector (SATA/PCIe compatible)
- 0 ~ 40 °C ambient operating temperature range
Additional information
Form Factor |
EATX form factor |
Processor System |
|
| Socket | Dual Intel LGA4677 |
| CPU type | Intel 4th Generation Xeon Scalable processors (CPU cooler should be purchased separately and TDP up to 205W*) |
Core Logic |
|
| Chipset | Intel C741 chipset |
Memory |
|
| Total slots | 16 (1 DIMM per channel) |
| Capacity | Maximum 4TB ECC RDIMM |
| Memory type | DDR5 ECC-REG 3200/3600/4000/4400/4800 MHz RDIMM |
| Memory size | 16GB, 32GB, 64GB, 128GB, 256GB |
Expansion Slots |
|
| Total PCI/PCI-X/PCIe slots | 6 |
| Slot location 1 | PCIe x16 slot (x16 link), signal from CPU0, CXL support |
| Slot location 2 | PCIe x8 slot (x8 link), signal from CPU1 |
| Slot location 3 | PCIe x16 slot (x16 link), signal from CPU0, CXL support |
| Slot location 4 | PCIe x8 slot (x8 link), signal from CPU1 |
| Slot location 5 | PCIe x16 slot (x16 link), signal from CPU0, CXL support |
| Slot location 6 | PCIe x16 slot (x16 link), signal from CPU1, CXL support |
Graphics |
|
| VGA | Aspeed AST2600 |
Storage |
|
| SATA controller | Intel® C741: 8 x SATA3.0 (6 Gb/s) via Mini SAS HD (SFF-8643), support software RAID 0,1,5,10 1 x SATA3.0 (6Gb/s) |
| SAS controller | - |
Networking |
|
| GbE/10GbE LAN | Intel® X710-AT2 (dual 10GbE ports) |
Onboard I/O Connector |
|
| PSU connector | 24-pin SSI power connector + 5 x 8-pin SSI 12 V power connector |
| USB connector | 2 x USB 2.0 ports (one onboard header) + 2 x USB 3.2 Gen1 ports (one onboard header) + 1 x Type-A USB 2.0 port |
| Fan header | 7 x 4pin (5 for system + 2 for CPU) |
| M.2 | 1 x M.2 2242/2280 B+M key (SATA and PCIe) |
| SMBus | 1 |
| Chassis intrusion | 1 |
| Front LAN LED | 1 |
| Audio Header | 1 |
| PS/2 Keyboard/Mouse header | 1 |
| Serial port header | 1 |

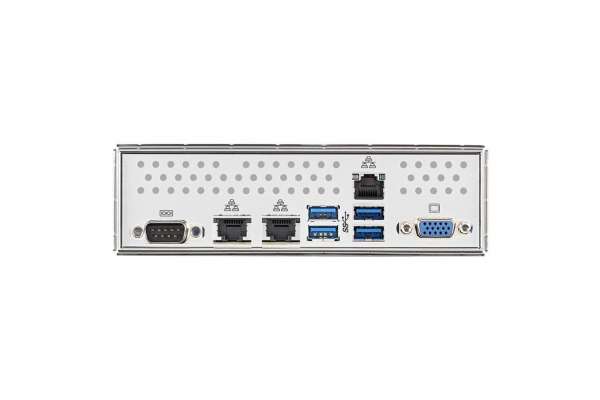

Rear I/O Connector |
|
| External serial port | 1 |
| External USB port | 4 x USB3.2 Gen1 |
| VGA port | 1 |
| RJ-45 | 3 (1 port dedicated for IPMI function) |
| PS/2 Keyboard/Mouse | - |
| Infiniband | - |
Management Solution |
|
| Software | - |
| Out of band remote management | Yes |
Monitoring |
|
| CPU temperature | Yes |
| System Monitoring | Yes |
Watchdog Timer |
|
| Output | System reset |
| Interva | Programmable 1 ~ 255 sec/min |
Power Requirement |
|
|
Power On (205W CPU@1.6GHz DDR5 4800 64G*16) |
3.3V (2.2A) 5V (1.9A) 12V (0.3A) 5Vsb (0.1A) -12V (0A) 12V_8P(38.53A) |
Environment |
|
| Temperature |
|
| Humidity |
|
Physical Characteristics |
|
| Dimension (L x H) | 304.8 x 330.2 mm (12" x 13") |
