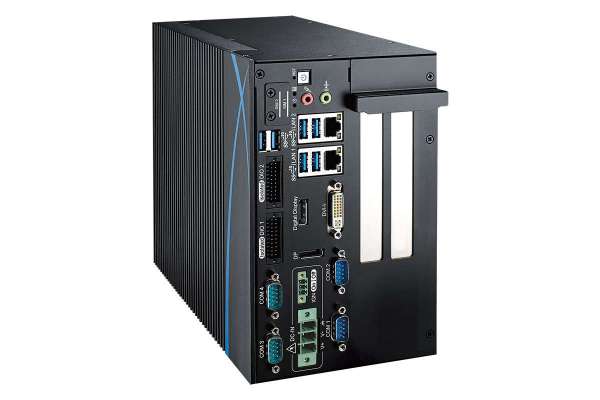

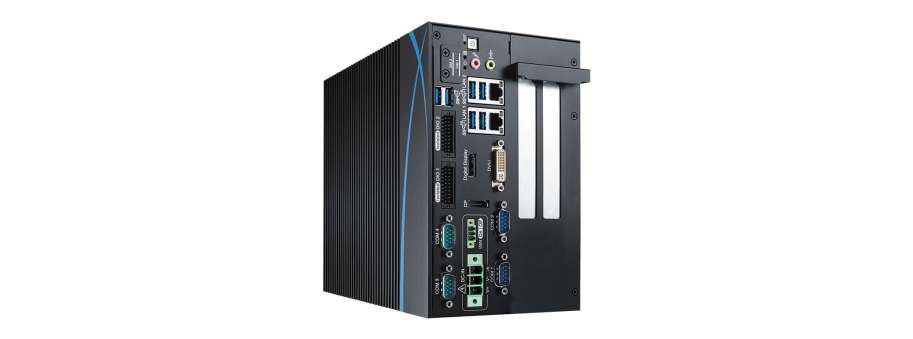

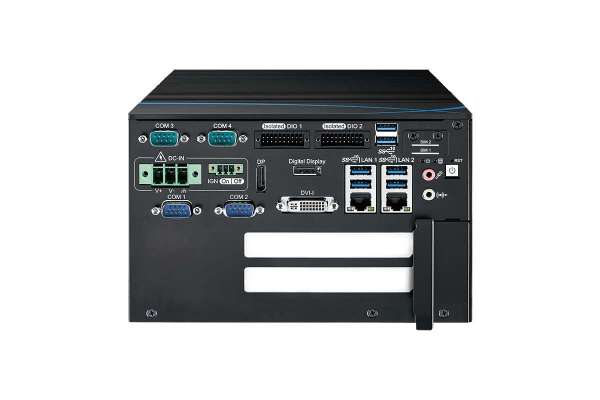

Fanless PC on Intel® Xeon®/Core™ i7/i5/i3 processor, Intel® C246 chipset, 2 GigE LAN support iAMT 12.0, PCI/PCIe expansion slots, 4 COM RS-232/422/485 Vecow RCX-1200
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| RCX-1211 | Промисловий компактний комп'ютер Vecow RCX-1200, 2 GigE LAN, 1 PCIe x16, 1 PCI, 4 COM, 6 USB 3.1, 2 SIM, Isolated DIO | 83 931,1 | |
| RCX-1220 | Промисловий компактний комп'ютер Vecow RCX-1200, 2 GigE LAN, 1 PCIe x16, 1 PCIe x4, 4 COM, 6 USB 3.1, 2 SIM, 32 Isolated DIO | 83 931,1 | |
| RCX-1220A | Промисловий компактний комп'ютер Vecow RCX-1200, 2 GigE LAN, 2 PCIe x8, 4 COM, 6 USB 3.1, 2 SIM, 32 Isolated DIO | 83 931,1 |
Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel® C246 chipset, 2 GigE LAN support iAMT 12.0, multiple PCI/PCIe expansion slots, 4 front-access SSD trays, 2 SIM sockets, 6 USB 3.1 Gen 2 sockets, 2 M.2 slots, 4 COM RS-232/422/485, 32 Isolated DIO, rugged, high-performance, flexible, expandable, max 300W power budget for independent graphics operation, Fanless -40°C to 75°C operating temperature, Vecow RCX-1000 Fanless Robust Computing System is your rugged solution for Machine Vision, Deep Learning, Robotic Control, Intelligent Surveillance, Factory Automation and any performace-driven embedded applications in harsh environments.
- 8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset
- 4 DDR4 2666MHz memory, up to 128GB (ECC/Non-ECC)
- 6 ports external USB 3.1 Gen 2 support up to 10Gbps data transfer
- Rugged & Fanless design, -40°C to 75°C operating temperature
- Multiple DVI-I and DisplayPort display interface, up to 3 independent HD displays
- 2 independent GigE LAN, iAMT 12.0 supported
- 2 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
- 2 PCIe/PCI slots, max 300W Power Budget for independent graphics operation
- 32 Isolated DIO, 4 COM RS-232/422/485
- 2 M.2 sockets : 1 M.2 Key M, 1 M.2 Key E
- 6V to 36V DC Power Input with 80V Surge Protection
- Configurable Ignition Power Control
Additional information
System |
|
| Processor | 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S) |
| Chipset | Intel® C246 chipset |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC) |
I/O Interface |
|
| Serial | 4 COM RS-232/422/485 (ESD 8KV) |
| USB |
|
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | Power, HDD, wireless |
| SIM Card | 2 external SIM sockets |
Expansion |
|
| Mini PCIe | 2 Full-size Mini PCIe sockets for PCIe/USB/external SIM/mSATA |
| PCI/PCIe | 2 PCI/PCIe expansion slots |
| M.2 | 1 M.2 Key E Socket (2230, PCIe x2/USB) |
Graphics |
|
| Graphics Processor | Intel® UHD graphics 630 |
| Interface |
|
| Storage | |
| SATA | 4 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 2 SATA III (Mini PCIe type, 6Gbps) |
| Storage Device |
|
Audio |
|
| Audio Codec | Realtek ALC888S, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
Ethernet |
|
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0 |
| LAN 2 | Intel® I210 GigE LAN |
Power |
|
| Power Input | 6V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 mode (Internal) |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
Others |
|
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Software Support |
|
| OS | Windows 10, Linux |
Mechanical |
|
| Dimension | 250.4mm x 210.0mm x 131.4mm (9.86" x 8.27" x 5.17") |
| Weight | 4.3 kg (9.5 lb) |
| Mounting | Wallmount by mounting bracket |
Environment |
|
| Operating Temperature |
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 75°C |
| Shock |
|
| Vibration |
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
