Extended T range IP68

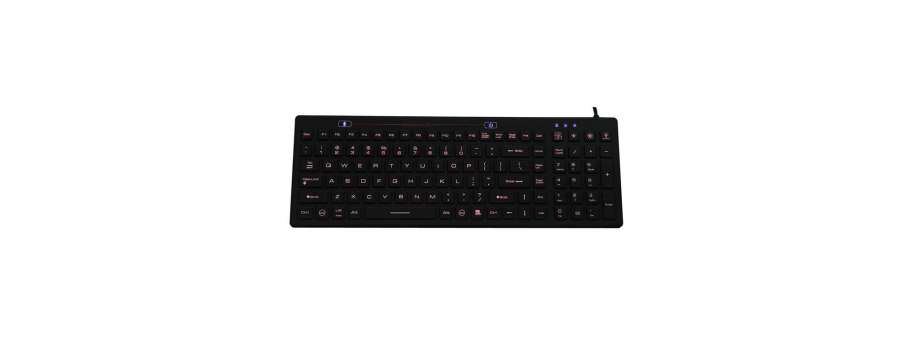

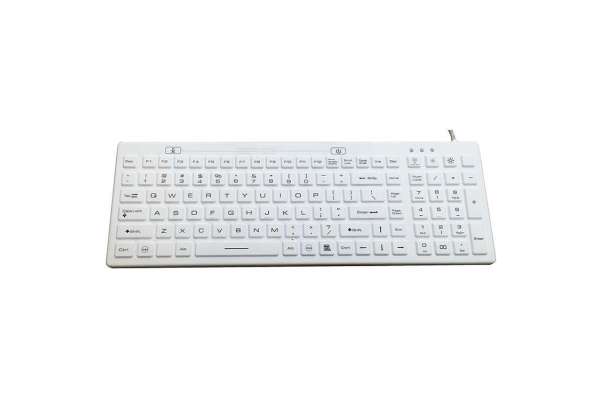

IP68 industrial silicone keyboard with numeric keypad, function keys and backlight X-key X-KP110SD

Price and avalability

Partnumber Description Price VAT incl Avalability
X-KP1101SD Промислова IP68 захищена клавіатура з силіконової гуми з антимікробним покритям, 110 клавіш разом з функціональними. Интерфейс USB. 380 x 130 x 10 mm, Cyrillic  7 752,3 Доступно
  • This keyboard with numeric keypad and fuction keys.
  • Engineered for NEMA 4X protection from dust, water and corrosive liquids.
  • Ideal for use in environments ranging from manufacturing to material handling to medical settings.
  • Its numeric pad allows for easy data entry.

IP68 rated industrial silicone rubber keyboard with integrated numeric keypad, function keys and backlight, with carbon-on-gold key switch technology with long stroke 1.50mm, with antimicrobial keyboard surface, standard alone desk top version.

This keyboard with numeric keypad and fuction keys. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.

MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc

MILITARY: Army, Navy, Air force

INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses

Additional information

Main feature

  • LED provides well-distributed backlight for each key.
  • Interchangeable 3-color backlight and 2-step adjustable brightness of backlight.
  • With keyboard main power ON/OFF switch, allowing user to clean at any interval with minimal downtime.
  • LED ON/OFF key, brightness increase key/reduce key.
  • Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
  • The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
  • Special dura-coating for excellent mechanical and chemical resistance
  • With firm tactile key feel, key travel 1.5mm key travel.
  • Integrated numeric keypad.
  • Ease of customizing with multiple languages, to accommodate foreign or custom variants.
  • PS/2, USB connection cables that plug directly into computer like keyboard operations.
  • Enclosure: industrial silicone with antimicrobial material.

Mechanical data

  • Key: 110 keys
  • Key top style: Protuberant rectangular keys with tactile feeling.
  • Switch life: more than 10 million of operations.
  • Cable Length: 1.5m
  • G.W.: 1.0KGs
  • Dimensions: 380 x 130 x 10 mm (L x W x T)

Electrical data

  • Supply Voltage: +5V DC +/-5%
  • Current Rating:
  • PS2: keyboard with 210mA@5V (from keyboard port)
  • USB: 220mA@5V (from CPU port)
  • EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003
  • Emission: EN 50081-1
  • Immunity: EN 50082-1
  • Lifespan> 3 years
  • Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
  • Interface: PS2, USB available.
  • OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7/10, Linux, Unix, Mac OSX

Environmental adaptability

  • Operating temperature:-30oC to +65oC
  • Storage temperature: :-40oC to +65oC
  • Humidity: 100%
  • Atmospheric pressure: 60-106Kpa
  • Shock: 3x11 ms pulses of 50g on each of 3 axe
  • Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
  • Flammability ( Printed circuit board 94 VO, Silicone overlay: 94 hb, Interface cable: 94 v)
Reliability
  • RoHS Compliant, CE and FCC
  • Protection Level: IP68, NEMA 6P
  • Key Lifespan >10 million actuations
  • MTBF >50000H
  • MTTR <30min
