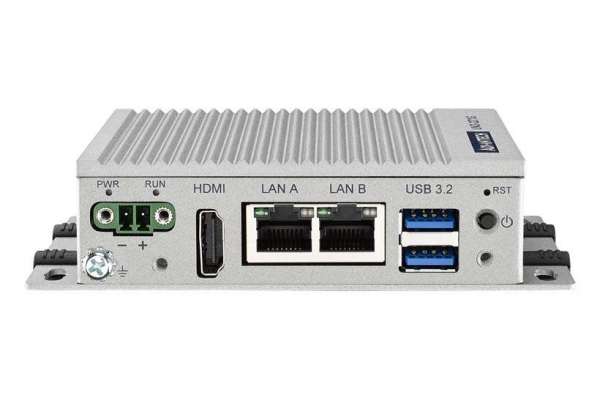

Pocket-Size Edge IoT Gateway with Intel® Celeron® N6210/ Pentium® N6415 Advantech UNO-2271G V2
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| UNO-2271G-N221AU | Промисловий компактний комп`ютер Advantech UNO-2 N6210 1.2GHz, 4G RAM, 32G, 2xGbE, 2xUSB, HDMI | 26 264,3 | |
| UNO-2271G-N221AE | Промисловий компактний комп`ютер Advantech UNO-2 N6210 1.2GHz, 4G RAM, 32G, 2xGBE, 2xUSB, HDMI | 24 660,4 | |
| UNO-2271G-N231AU | Промисловий компактний комп`ютер Advantech UNO-2 N6415 1.2GHz, 8G RAM, 32G, 2xGbE, 2xUSB, HDMI | 36 756,7 |
Advantech’s UNO-2000 series of embedded automation computers are highly rugged, fanless systems. The modular design offers vigorous computing performance and flexible scalability with various I/O ports to support IoT Connectivity. The UNO-2271G V2 are designed for IoT gateway edge, The pocket size module features versatile I/O ports and expansion options to support wire/ wireless/ AI accelerator for IoT edge data transmission and processing, enable the various industrial application in multiple industries,
- Intel® Celeron® Dual core N6210/ Pentium® Quad core N6415 processor with 4GB/8GB DDR4 onboard memory
- Pocket-size, robust, fanless and cable-free system with high stability

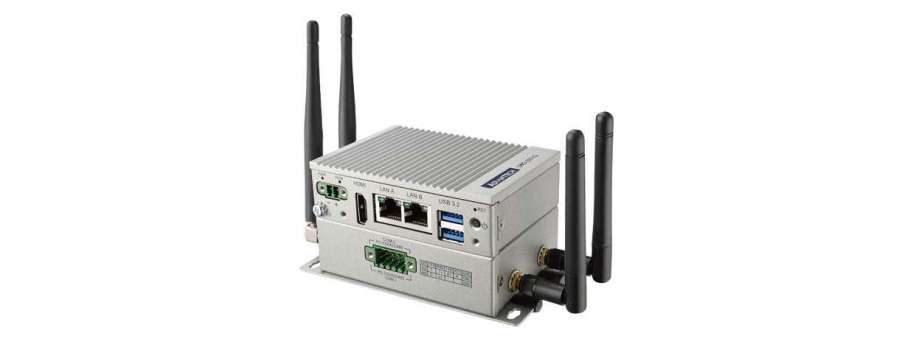

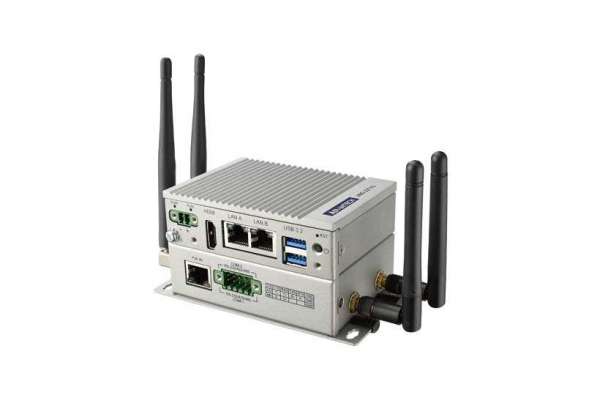

- Optional second stack for increasing functionality including POE, COM, wireless connectivity or iDoor expansion
- Support Win10, Ubuntu Classic and Ubuntu Core 20
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
Additional information
General |
|
| Certification | CE, FCC, UL, CCC, BSMI |
| Dimensions (W x D x H) | 100 x 70 x 30 mm/3.9 x 2.8 x 1.2 in |
| Form Factor | Pocket sized |
| Enclosure | Aluminum |
| Mount Options | Stand, wall, VESA (optional), DIN rail (optional) |
| Weight (Net) | 0.5 kg/1.1 lb |
| Power Requirement | 10 ~ 30VDC |
| Power Consumption | 12W (typical), 30W (max.) |
| Operating System | Windows10 LTSC, Windows 11, Ubuntu 20.04, Ubuntu Core 20 |
| Software Compatibility | WISE-Edge365, Azure IoT Edge, AWS IoT Greengrass, VMware, RedHat |
System Hardware |
|
| BIOS | AMI UEFI x64 |
| Watchdog Timer | Programmable interval timer, from 1 to 255 seconds |
| Processor | Intel® Celeron® N6210 dual-core (1.2 GHz)/ Pentium® N6415 quad-core (1.2 GHz) |
| Memory | 4 GB/8 GB DDR4 2666 MHz onboard |
| Graphics Engine | Intel® UHD Graphics |
| Ethernet | 2 x i211AT/i210AT |
| LED Indicators | Power, Run (programmable), LAN (active, status) |
| Storage | 32 GB eMMC (up to 256 GB upon request) 1 x mSATA slot shared with mPCIe slot |
| Expansion | 1 x Full-size mPCIe slot (SATA/PCIe/USB2.0 signal) |
| Hardware Security | TPM2.0 (TPM2.0 Library Reversion 1.38) |
I/O Interfaces |
|
| LAN Ports | 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet |
| USB Ports | 2 x USB 3.2 Gen 1 |
| Display Output | 1 x HDMI (1920 x 1080 @60Hz) |
| Power Connector | 1 x 2-pin terminal block |
Environment |
|
| Operating Temperature | -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s airflow |
| Storage Temperature | -40 ~ 85 °C /-40 ~ 185 °F |
| Relative Humidity | Operating , 95% RH @ 40° C, Non-Condensing Non-Operating, 95% RH @ 60° C, Non-Condensing |
| Shock Protection | Operating, IEC 60068-2-27, 50G, half sine, 11 ms |
| Vibration Protection | Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA) |
| Ingress Protection | IP30 |
