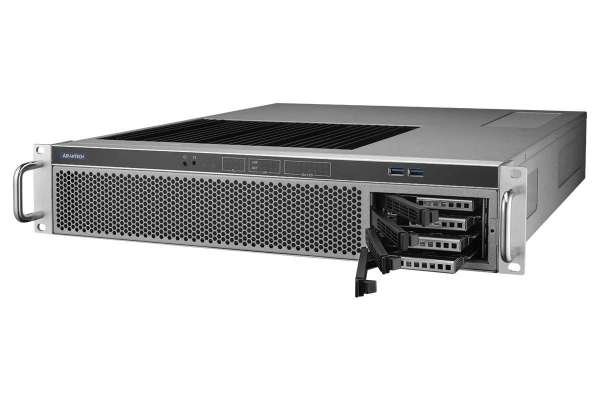

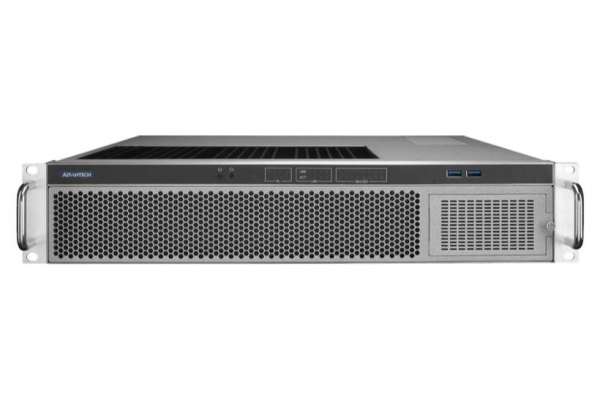

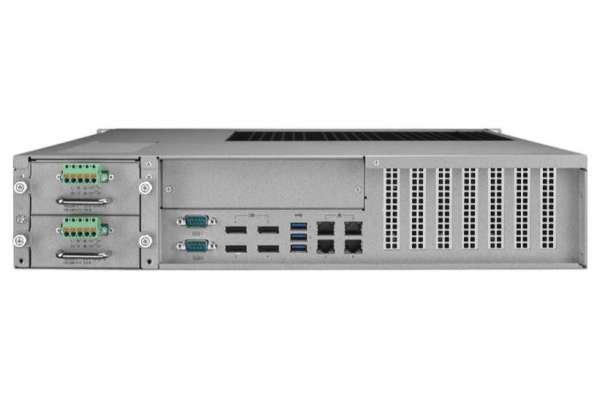

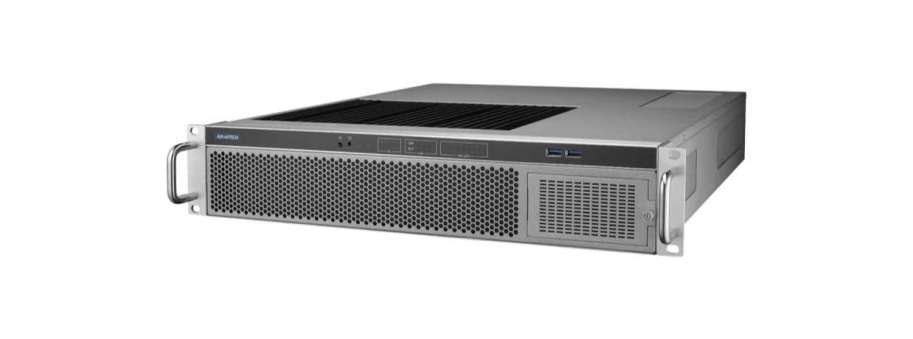

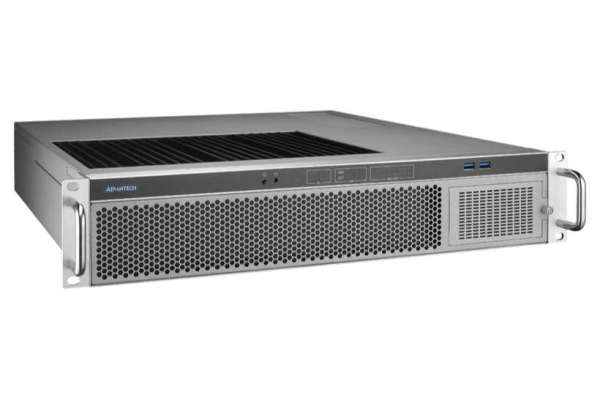

IEC-61850-3 Certified Power Automation Computer Based on 13th Generation Intel® Core™ Processors Advantech ECU-479
Price and avalability
Partnumber | Description | Price VAT incl | Avalability |
---|---|---|---|
ECU-479-V1-S1 | Промисловий комп'ютер для енергетики Advantech ECU-479 RPL-S, AC/DC, 4xLAN, 4xDP, 1xEP Slot, 4xPCIe | 248 753,0 | |
ECU-479-V1-S1U | RPL-S, AC/DC, 4xLAN, 4xDP, 1xEP Slot, 4xPCIe, TW | 273 360,0 |
The ECU-479 is an IEC 61850-3 and IEEE 1613 certified product that provides high reliability and stability for power automation applications. The ECU-479 boasts a fanless, durable design, high CPU performance, easy maintenance, versatile expansion options, and a wide range of communication interfaces. Additionally, it supports virtualization technology, making it well suited for the digitalization of power substations.
- 13th Gen Intel® Processor with 8+8 Cores
- Quad display interfaces for SCADA and more multi-display use cases
- Support for a RAID card, HSR/PRP expansion card, and redundant PSU
- Supports Intel® AMT, iBMC, SNMP for remote management
- Wide operating temperature range, fanless rugged design for harsh environments
- Optional 10-year warranty and long product life cycle for substations
Computer system |
|||
CPU | i7-13700TE | i5-13500TE | i3-13100TE |
Processor Base Frequency | 1.10 GHz | 1.30 GHz | 2.40 GHz |
Intel® Smart Cache | 30 MB | 24 MB | 12 MB |
Core Number | 16 (8 P-cores, 8 E-cores) | 14 (6 P-cores, 8 E-cores) | 4 P-cores |
TDP | Limited to 25W | Limited to 25W | Limited to 25W |
Chipset | Intel® R680E chipset | Intel® R680E chipset | Intel® R680E chipset |
Additional information
Memory |
|
Technology | Dual-channel DDR4 |
Capacity | Up to 64 GB |
DIMM Slot | 2 x DDR4 SODIMM RAM with ECC |
Ethernet |
|
Controller | 1 x Intel® I210 + 3 x Intel® I226 |
Speed | 10/100/1000 Base-T, 2,500V isolation. Supports iBMC (LAN1), Intel® AMT (LAN2), SNMP remote management |
Connector | 4 x RJ-45 |
Storage |
|
2.5" SSD | 4 x 2.5" hot-swappable SATA SSDs, up to 9.5mm height. Supports Intel® RST RAID 0,1,5,10 |
M.2 SSD | 1 x M.2 2280 M-Key NVMe PCIe Gen. 3 x4 or SATA |
I/O |
|
External USB | 3 x USB 3.2 Gen1 (rear), 2 x USB 3.2 Gen1 (front) |
Internal USB | 1 x USB 2.0 |
Serial | 2 x RS-232/422/485 (DB9 connectors) 2,500V isolation, 50 - 115200 bps. |
Display | 4 x DP++ 1.2 up to 4K @ 60Hz |
Expansion Interface |
|
Proprietary PCI/PCIe | 1 |
PCIe |
|
Optional Module | RJ45 Port, SFP Port, Isolated Serial Port, Isolated Digital I/O, HSR/PRP, PCIe, Mini-PCIe, PCI-104, IRIG-B |
Software |
|
Operating System | Windows11, Windows10, Windows Server 2022, Linux (Ubuntu 22.04) |
Power |
|
Input Voltage |
2 x hot-swappable redundant power supply, 150W Power1: 100 ~ 240 VAC, 100 ~ 240 VDC (Inside) Power2: 100 ~ 240 VAC, 100 ~ 240 VDC (Option) |
Enviornment |
|
Operating Temperature | -25 to 70°C (Depends on CPU model and configuration) |
Storage Temperature | -40 to 85°C |
Relative Humidity |
|
Mechanical |
|
Dimensions (W x H x D) | 483 x 478 x 88 mm (19" x 3.5" x 18.8") |
Mounting | 2U Rackmount |
Weight | 13.0 kg (28.66lbs) |
Ingress Protection | IP20 |
Certification |
|
EMC | CE, FCC, IEEE 1613 |
Safety | CB, UL |
Type approval | IEC 61850-3 |
Shock Protection | IEC 60068-2-27: 20G half sine, 11 ms with SSD |
Vibration Protection | IEC 60068-2-64: Random 1 Oct./min, 1hr/axis with SSD |
Other |
|
Trusted Platform Module | TPM 2.0 (Option) |
Watchdog Timer | Programmable 256 levels time interval, from 1 to 255 seconds for each tier |
Relay | Relay Output Form C Contact 5A @ 125VAC/ 5A @ 30VDC Channel 1 |
