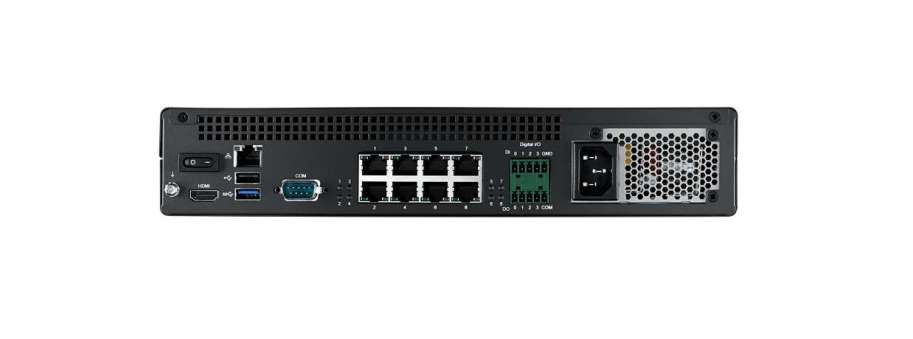

HDMI
Input 220V AC
POE ports
RS485
Standard T range

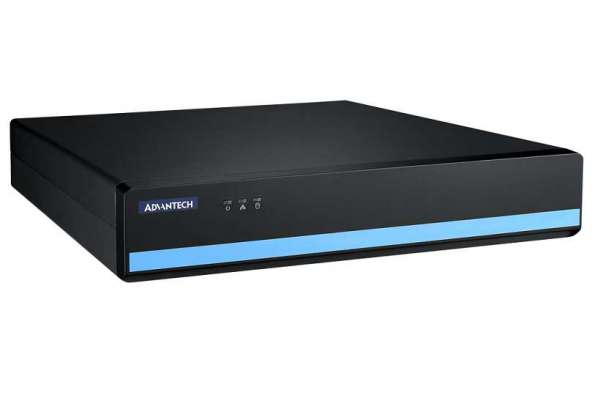

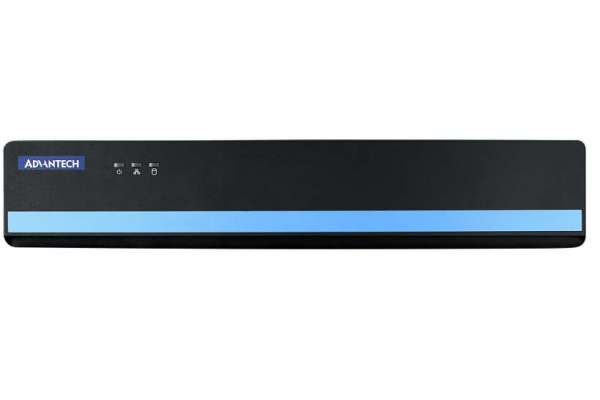

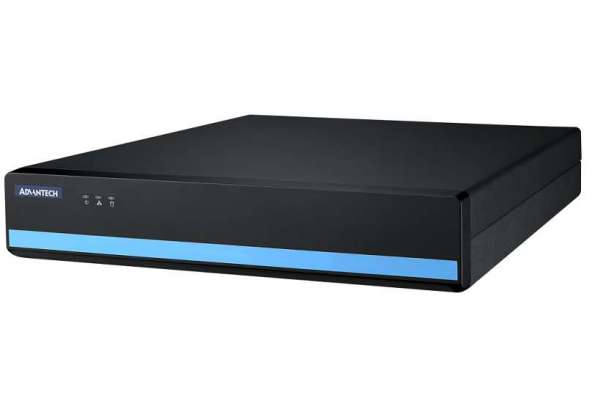

8-ch AI Network Video Recorder Based on NVIDIA® Jetson NANO™ Advantech MIC-710IVA
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| MIC-710IVA-00A1 | Система машинного зору Advantech MIC-710IVA 8ch AI NVR на базі NVIDIA Jetson NANO | 63 440,9 |
- NVR fan base design
- Embedded with NVIDIA® Jetson NANOTM up to 512 GOPS
- Supports 8 x PoE (IEEE 802.3af), 1 x GbE, 8-ch DIO
- Supports 2 x SATAIII
- Linux OS with board support package (BSP)
- Supports Allxon 24/7 remote monitoring and OTA deployment
Additional information
Processor System |
NVIDIA® Jetson NANo |
| CPU | Quad Core ARM Cortex A57 |
| GPU | 128 CUDA cores, Performance up to 512 GOPS (FP16) |
| Memory | 4GB LPDDR4 |
| Flash | 16GB eMMC |
I/O |
|
| Ethernet | 1 x 10/100/1000 Mbps |
| PoE | 8 x PoE (IEEE 802.3af) |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| USB | External: 1 x USB 3.0, 1 x USB 2.0 (Type-A) |
| Digital I/O | 4-ch DI, 4-ch DO |
| Power Switch | 1 x Power ON/OFF Switch |
| Serial Port | 1 x RS485 |
| OTG USB | 1 x Micro USB |
Storage |
|
| Storage | 2 x 3.5" or 2 x 2.5" SATAIII (6Gb/s) drives |
FAN |
|
| Dimension | 40 x 40 x 20 mm |
| RPM | 9000 RPM |
Power |
|
| Mode | C13, 250W ATX Power supply, AT/ATX (Default AT) |
| Input Voltage | 100 ~ 240 VAC, 3.5A |
Environment |
|
| Operating Temperature | 0 ~ 50 °C with 0.7 m/s airflow |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 0.5 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Shock | 10G/11ms |
Mechanica |
|
| Dimensions (W x D x H) | 300 x 330 x 57 mm (11.8" x 13" x 2.24") |
| Weight | 3 kg (6.6 lb) |
| Installation | Desktop |
BSP |
|
| Jetpack | Above 4.2.2 |
| Certifications | CE/FCC/BSMI (No RED certification) |
