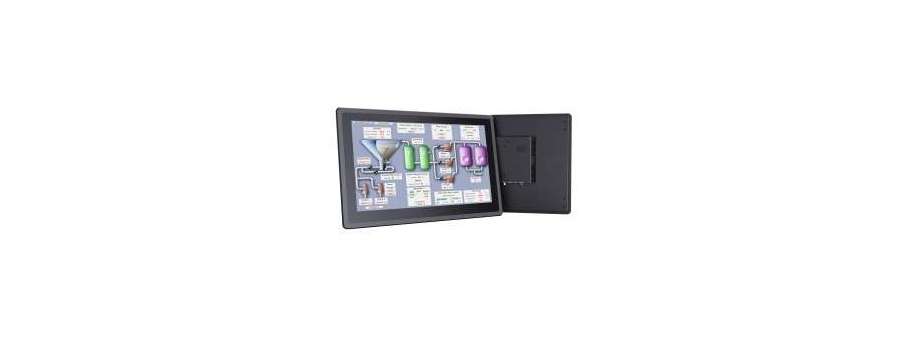

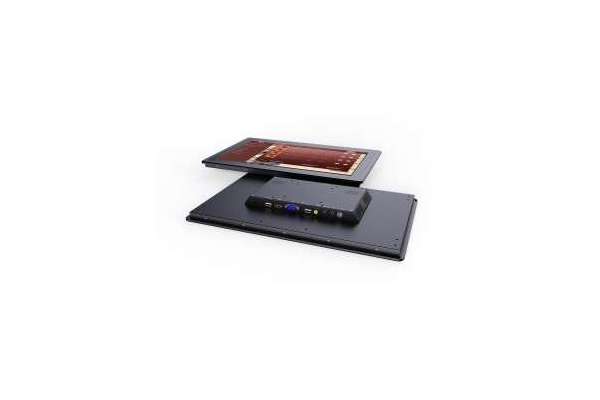

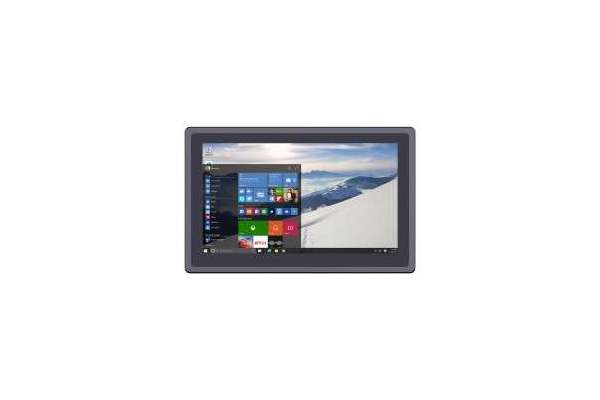

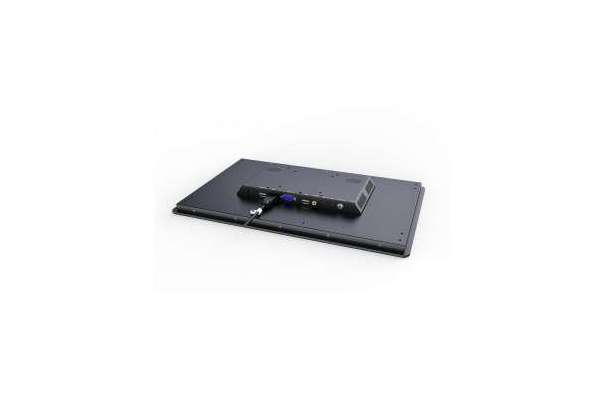

15.6" industrial monitor with 1000nits high brightness screen panel IP64 LILLIPUT TK1560
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| TK1560/C | Промисловий монітор Lilliput TK1560/C , 15.6”, 1920x1080, IP64 по передній панелі, 1000nits, NO TOUCH, Input Voltage DC 12-24V | 38 641,7 |
The monitor comes with a 10-point touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP64 front panel design is a great convenience for installation methods and applications.
- Display: 15.6" / 1920×1080 / 1000 nits
- Input: HDMI, AV, VGA,Audio
- Audio In/Out: Speaker, HDMI, Ear Jack
- Feature: 1000nits brightness, 10-points touch, IP64, Metal Housing,Auto Dimming
Additional information
Display |
|
| Touch Screen | 10-point capacitive touch (no touch available) |
| Panel | 15.6” LCD |
| Physical Resolution | 1920×1080 |
| Aspect Ratio | 16:9 |
| Brightness | 1000 nits |
| Contrast | 1000:1 |
| Viewing Angle | 160° / 160° (H/V) |
Input |
|
| HDMI | 1 × HDMI 1.4b |
| VGA | 1 |
| AV | 1 |
Supported formats |
|
| HDMI | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60.. |
Audio In/Out |
|
| Speaker | 2 |
| HDMI | 2ch |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
Power |
|
| Input Voltage | DC 12-24V |
| Power Consumption | ≤24.5W (15V) |
Environment |
|
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -30°C~70°C |
| Water-proof | IP x4 front panel |
| Dust-proof | IP 6x front panel |

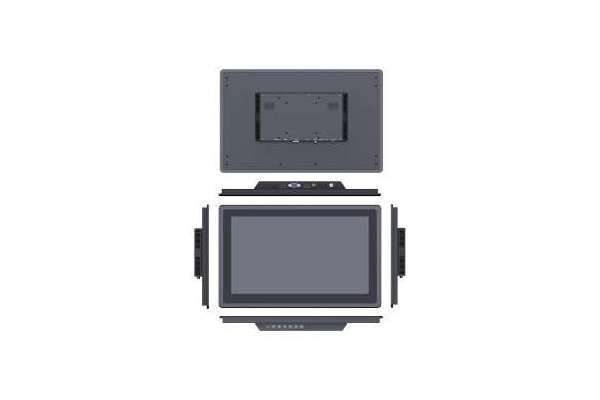

Dimension |
|
| Dimension(LWD) | 408mm × 259mm × 36.5mm |
| VESA Mount | 75mm / 100mm |
| Weight | 2.9kg |
