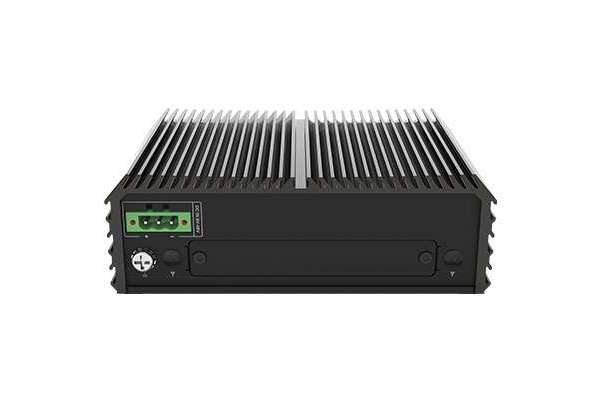

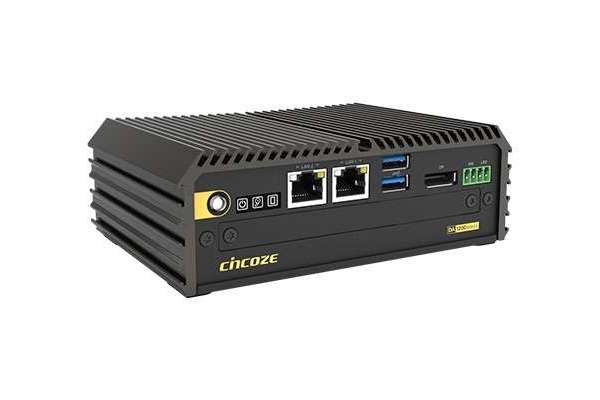

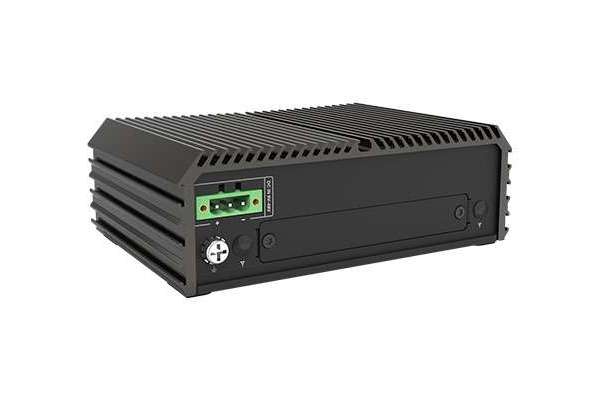

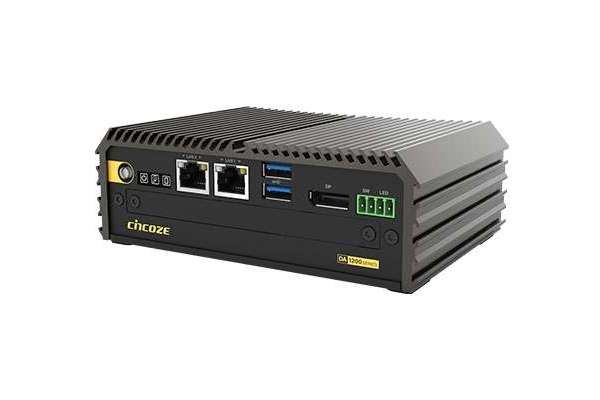

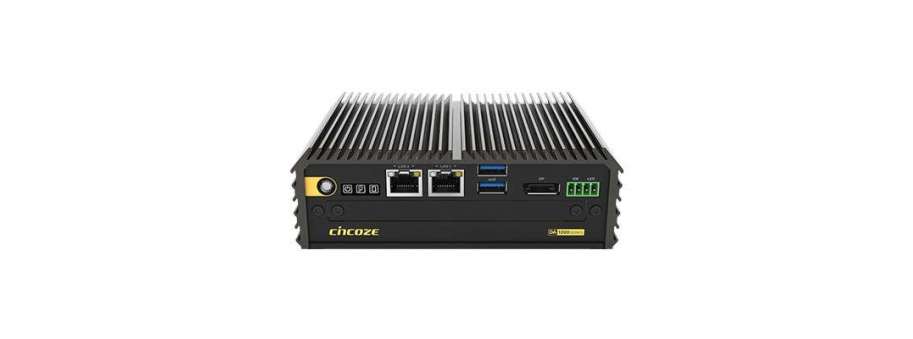

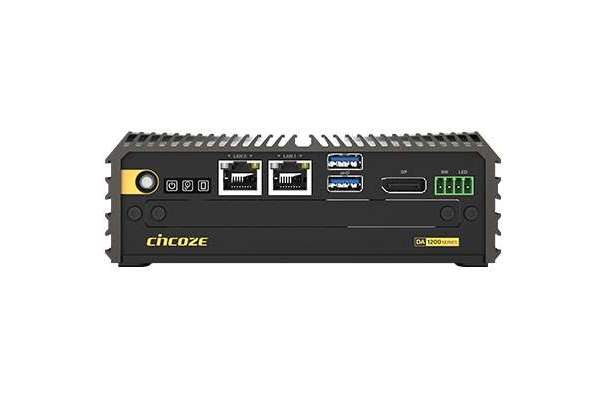

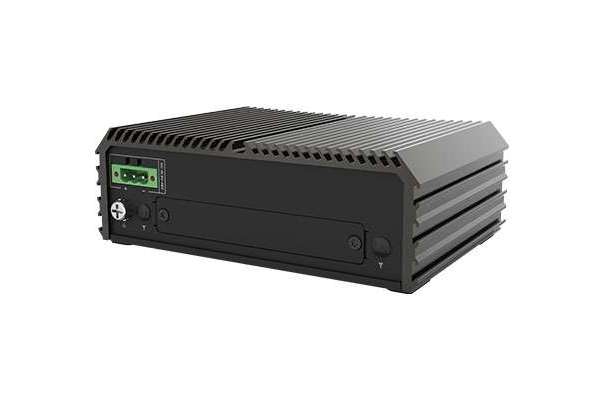

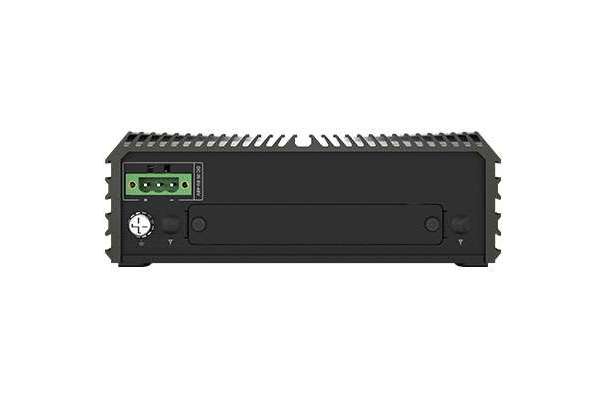

Fanless Intel Alder Lake-N Processor N97 Rugged Embedded Computer Cincoze DA-1200

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
DA-1200-N97-R10 Компактний комп'ютер Cincoze DA-1200Intel® Alder Lake-N Processor N97 Quad Core Affordable Fanless Embedded Computer  40 965,2

The palm-sized DA-1200, equipped with an Intel® N97 processor (Alder Lake-N platform), is the smallest and an affordable model in the DIAMOND product line. It inherits the rugged features consistent throughout the Cincoze lineup and has passed or complies with many international certification standards, such as EMC standards in industrial environments (IEC 61000-6-2 and IEC 61000-6-4) and US military shock vibration standards (MIL-STD-810H). The DA-1200 is best for IoT gateway applications in smart manufacturing, smart logistics, and factory automation.

  • Onboard Intel ® Alder Lake-N Processor N97
  • Ultra Compact Size (150 x 105 x 52.3 mm)
  • 1 x DDR5 SO-DIMM Sockets, Supports Up to 4800MHZ, 16GB
  • 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
  • 1 x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
  • Optional CMI modules for I/O expansion
  • Wide Operating Temperature -40°C to 70°C

Additional information

System
Processor Onboard Intel® Alder Lake-N Processor N97 Quad Core, up to 3.6 GHz
Memory
  • 1x DDR5 SO-DIMM Socket
  • Supports DDR5 4800MHz Memory Up to 16GB (un-buffered and non-ECC)
BIOS AMI BIOS

Graphics
Graphics Engine Integrated Intel® UHD Graphics
Maximum Display Output Supports Two Independent Display (Onboard 1x DisplayPort + Optional CMI 1x Display)
DP 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications) * Verified maximum resolution: 3840 x 2160 @60Hz

I/O
LAN

2x 2.5 GbE LAN, RJ45

- GbE1: Intel® I225

- GbE2: Intel® I225
USB 2x 10Gbps USB 3.2 Gen2 x1, Type A

Storage
SSD/HDD 1x 2.5" SATA HDD/SSD or 1x Half-Slim SSD (SATA 3.0)
M.2 SSD
  • 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket, Support NVMe SSD (PCIe Gen 3x1) or SATA SSD (SATA 3.0)
  • 1 x M.2 SSD shared by M.2 Key B Type 2242 Socket, Support NVMe SSD (PCIe Gen 3x2)

Expansion
M.2 Key B Socket
  • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 2242 (PCIe Gen 3x2), Support Storage/Add-on Card Expansion
SIM 1 x Front Accessible SIM Socket
CMI (Combined Multiple I/O) Interface 1x CMI Interface for optional CMI Module Expansion

Other Function
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Antenna 2x Antenna Holes

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1x Remote Power LED, 2-pin Terminal Block

Physical
Dimension ( W x D x H ) 150 x 105 x 52.3 mm
Weight Information 0.81 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / Side / DIN-RAIL / VESA Mount
Physical Design
  • Fanless Design
  • Cableless Design
  • Jumper-less Design
  • Unibody Design

Operating System
Windows Windows® 11, Windows® 10
Linux Ubuntu 22.04

Environment
Operating Temperature

-40°C to 70°C

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)

* With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 70°C
Relative Humidity 95% RH @ 70°C (Non-condensing)
Shock MIL-STD-810H
Vibration MIL-STD-810H
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN61000-6-4, EN61000-6-2 (24VDC Input Only)
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.)
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
