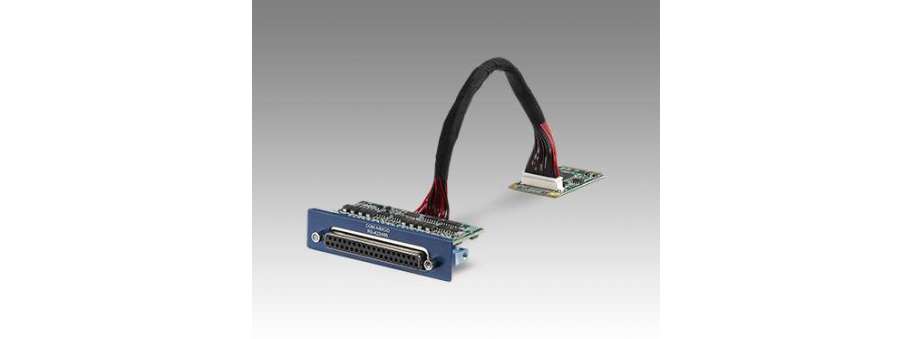

Non-Isolated RS-422/485, 4-Ports, DB9, PCIe I/F Advantech MOS-1121Y-1401E

Price and avalability

Partnumber Description Price VAT incl Avalability
MOS-1120Y-0201E Мережевий пристрій/Перетворювач інтерфейсів Isolated RS-232, 2-Ch, DB9, PCIe I/F  7 573,0
MOS-1121Y-0201E Мережевий пристрій/Перетворювач інтерфейсів Isolated RS-422/485, 2-Ch, DB9, PCIe I/F  7 573,0
MOS-1120Y-1401E Мережевий пристрій/Перетворювач інтерфейсів Non-Isolated RS-232, DB37, 4-Ch, PCIe I/F  8 160,4
MOS-1121Y-1401E Мережевий пристрій/Перетворювач інтерфейсів Non-Isolated RS-422/485, DB37, 4-Ch, PCIe I/F  7 586,6
  • Meets Advantech Standard iDoor Technology
  • PCI Express® Mini Card Specification Revision 1.2 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting (50bps~921.6kbps)
  • Supports both Isolated & Non-Isolated Protection with 2/4 Ports RS-232/422/485
  • I/O address automatically assigned by PCIe plug & play
  • Operating systems supported: Windows XP/Vista/7, and Linux 2.4/2.6
  • OXPCIe952/OXPCIe954 UART with 128-byte FIFOs standard
  • Supports ARK-2121L and ARK-6322

Additional information

General

Bus Type PCI Express Mini Card Revision 1.2
Certification CE, FCC class A
Connectors
  • 2 x Male DB9 for MOS-1120Y-XXXXE
  • 1 x Female DB37 for MOS-1121Y-XXXXE
Dimensions
  • Module: 51 x 30 x 12.4 mm (2" x 1.18" x 0.49")
  • I/O Plate: 81 x 19.4 x 41 mm (3.19" x 0.76" x 1.61")
Power Consumption
  • 400 mA @ +3.3 V for MOS-1120Y-XXXXE
  • 500 mA @ +3.3 V for MOS-1121Y-XXXXE

Communications

Comm. Controller
  • OxPCIe952 for MOS-1120Y-XXXXE
  • OxPCIe954 for MOS-1121Y-XXXXE
Data Bits 5, 6, 7, 8
Data Signals
  • RS-232: TX, RX, RTS, CTS, DTR, DSR, DCD, DI, GND
  • RS-422: TX+, TX-, RX+, RX-, (MOS-1121Y-1401E) TX+, TX-, RX+, RX-, CTS+, CTS-, RTS+, RTS- (MOS-1121Y-0201E) RS-485: Data+, Data
FIFO 128 bytes
Flow Control RTS/CTS (MOS-1121Y-1401E not supported), Xon/Xoff
Parity None, Odd, Even, Mark and Space
Speed 50 bps ~ 921.6 kbps ( MOS-1121Y-0201E & MOS-1121Y-1401E only) and any other baud rate setting 230.4 kbps
Stop Bits 1, 1.5, 2

Protection

Isolation Protection 2,000 VDC for MOS-1120Y-XXXXE only
ESD Protection 15 KV
EFT Protection 2,500 V
Surge Protection 1,000 VDC

Software

Bundled Software ICOM Tools & Drivers
OS Support Microsoft® Windows® XP/Vista/7 and Linux

Environment

Humidity (Operating) 5-95% RH, non-condensing
Operating Temperature -20 ~ 60° C (-4 ~ 140° F)
Storage Temperature -40 ~ 85° C ( -40 ~ 185° F)
