Multi-functional Box PC Advantech UBX-210H

Ubiquitous Box Computer with Intel® Celeron® 6305E/Core™ i3-1115G4E/Core™ i5-1145G7E/Core™ i7-1185G7E Processors Advantech UBX-210H

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
UBX-210H-BCL00	UBX-210H Celeron 6305E barebone	51 260,7
UBX-210H-BI300	UBX-210H Core i3 1115G4E barebone	71 982,6
UBX-210H-BI500	UBX-210H Core i5 1145G7E barebone	95 575,5
UBX-210H-BI700	UBX-210H Core i7 1185G7E barebone	117 319,0
UBX-210H-BCL01	UBX-210H Celeron 6305E, 8USB, 4COM barebone	49 385,9
UBX-210H-BI301	UBX-210H i3 1115G4E, 8USB, 4COM barebone	70 106,9
UBX-210H-BI501	UBX-210H i5 1145G7E, 8USB, 4COM barebone	93 700,7
UBX-210H-BI701	UBX-210H i7 1185G7E, 8USB, 4COM barebone	115 445,0

Advantech UBX-210H is a compact x86-based computer with detachable I/O boards that allow flexible I/O deployment. Rich I/O types and quantities fulfill different peripherals connections without any extension hub or converter. Moreover, the unique X-shaped fin design enables better system heat dissipation and allows horizontal and vertical setups. Such a compact design but powerful system performance satisfies retail demands, like POS systems and self-service kiosks in hypermarkets, quick-service restaurants, hotels, and public spaces.

• Modular detachable I/O board features in rich and flexible I/O deployment

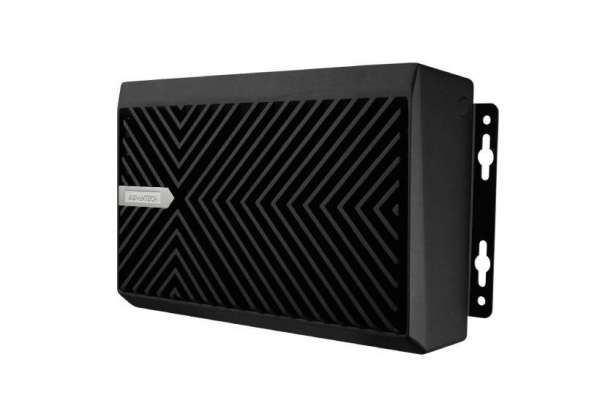

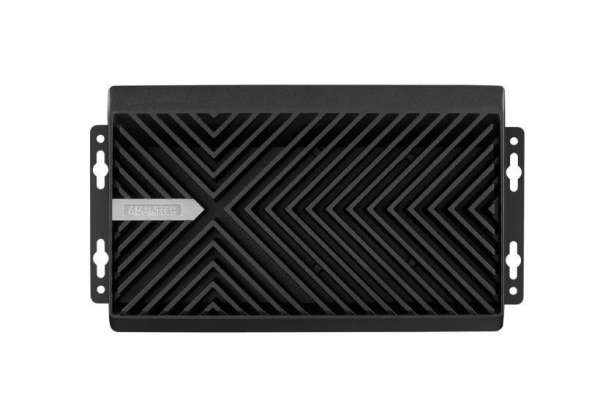

• Unique X-shaped fin design enhances system heat dissipation; the mounting direction is not limited by airflow
• Equipped with TPM2.0 chip for data encryption enhancement
• Two M.2 2280 SSD slots to support RAID 0/1 that offers a complete data backup solution
• Can be integrated with optional WiFi and Bluetooth combo module
• Support Windows 10 IoT LTSC, Windows 11 IoT, or Linux

Additional information

Model	UBX-210H
Processor	Celeron 6305E Core i3, 1115G4E Core i5, 1145G7E Core i7, 1185G7E
TPM	TPM 2.0
Memory	DDR4-3200 SO-DIMM *1, Up to 64GB (non-ECC)
Resolution	USB-C: support up to 8K UHD (7680 x 4320 @ 60Hz); HDMI 1 and 2: support up to 4K UHD (4096 x 2160@60Hz)

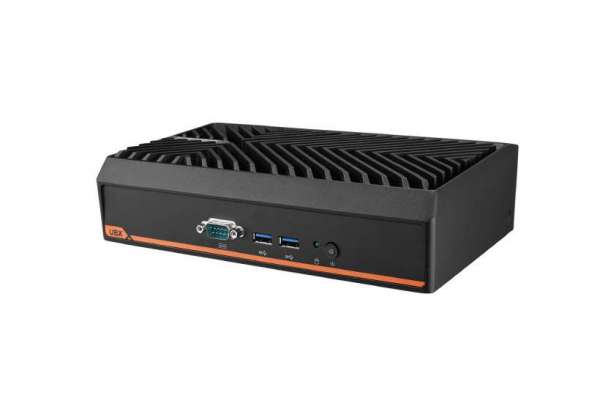

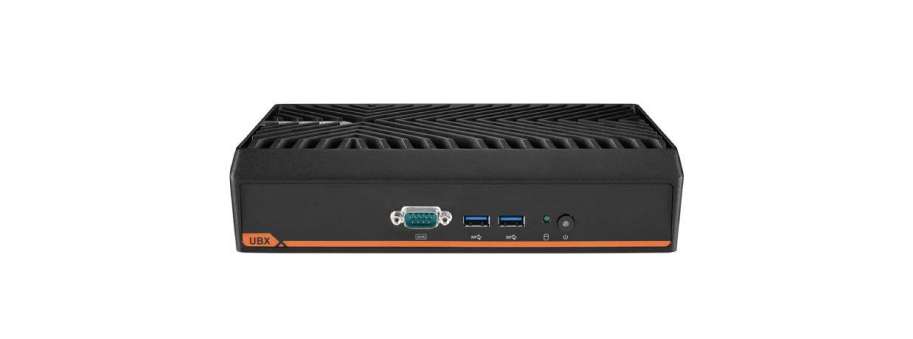

Front I/O
USB	USB3.2 Gen 2 Type A *2
COM	COM *1 (RS232/422/485 by BIOS)
Button	Power Pushbutton *1
LED	Data access LED *1
Rear I/O
Video	USB-C *1 HDMI2.0b *2
Audio	Line-out *1
LAN	LAN 1: Intel i219; 10/100/1000 Mbps; LAN 2: Intel i225; up to 2.5 Gbps
USB	USB 3.2 Gen 2 Type A *2

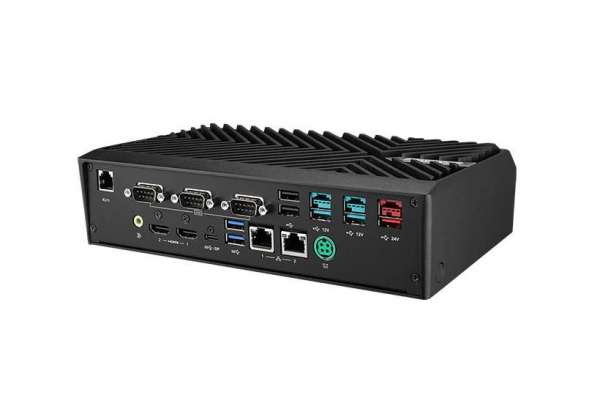

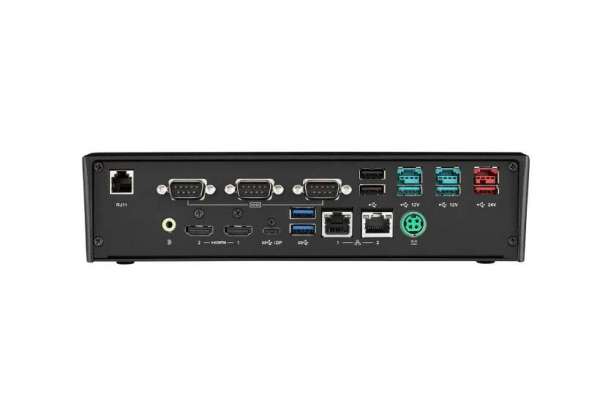

I/O Type A*	USB 2.0 Type A *2 24V Powered USB *1 12V Powered USB *2 5V/12V Powered COM *3 (Setting via jumpers; default: 0V) 12V/24V RJ12 for Cash Drawer *1 (default: 24V) DC 24V Power DIN4 *1

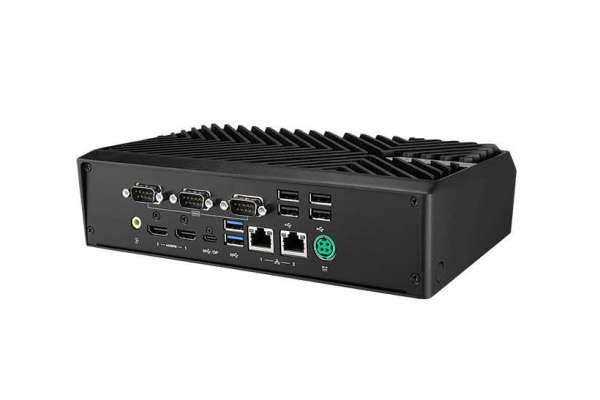

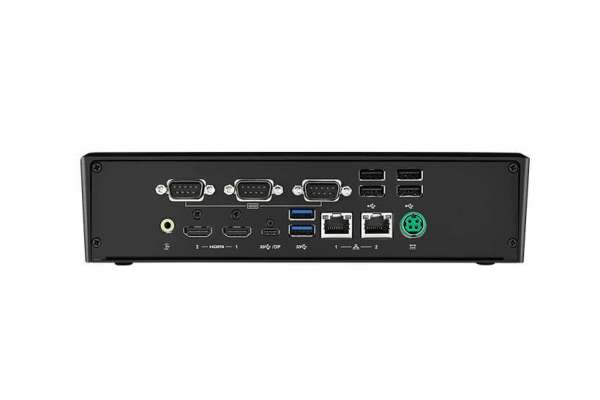

I/O Type B*	USB 2.0 Type A *4 COM *3 (RS232) DC 19V Power DIN4 *1
Expansion
WiFi/BT	M.2 E-Key 2230 *1
Storage	M.2 M-Key 2280 *2
Mounting Option	Desktop/Wall/VESA
Wake on LAN	LAN 1
Intel vPro	Supported (Core i5, and i7 only)
Operating System	Windows 10 IoTEnt LTSC Windows 11 IoT Linux
Environment
Operating Temperature	0~ 45 °C** with airflow 0.7m/s
Storage Temperature	-20 ~ 60 °C
Physical
Dimensions (W x D x H)	234 x 145.77 x 58 mm
Software	SUSI, DeviceOn
Certificate	CE, FCC Class B, CCC, BSMI, RF RED, EN 62368, ErP, CB, UL, BIS
