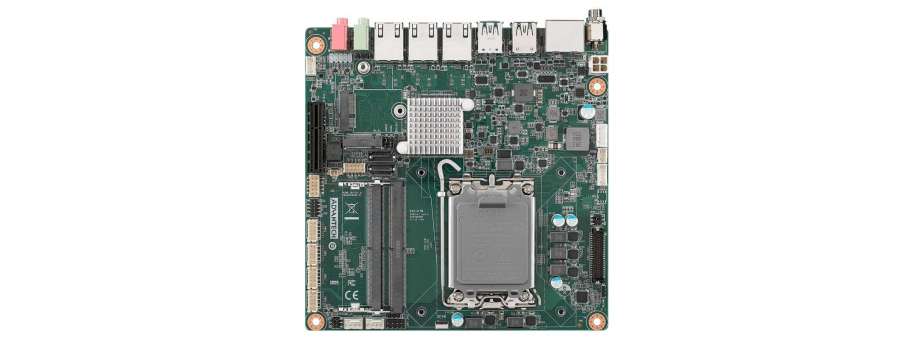

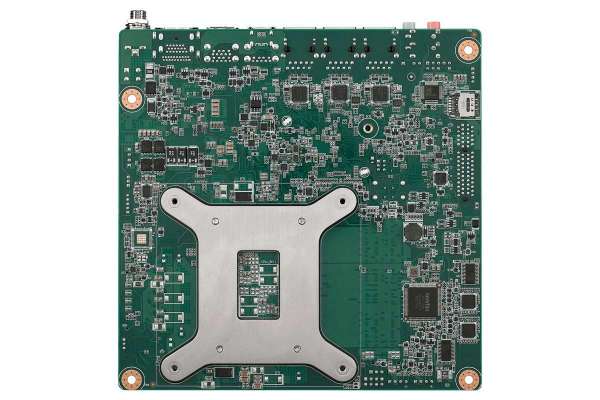

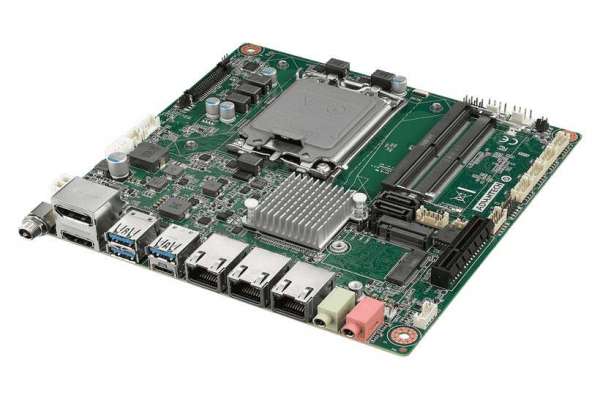

Mini-ITX Motherboard 12th/13th/14th Gen Intel® Core™ Processor LGA1700 Advantech AIMB-289
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIMB-289HF-LDA1 | MiniITX RPL-S Refresh LGA1700/DCIN/H610E/LVDS | 21 354,5 | |
| AIMB-289HL-EDA1 | MiniITX RPL-S Refresh LGA1700/DCIN/H610E/eDP | 18 973,6 |
- 12th/13th/14th Gen Intel® Core™ Desktop Processors, Up to 24Core, support H610E chipset
- Dual channel DDR5 5600MHz, max. 96GB with two SODIMMs
- Super Speed I/O: PCIe x4 Gen3, USB3.2 Gen2 (10Gbps), 2.5GbE
- Triple independent 4K displays with 1 DP, 1 HDMI, 1 LVDS
- Rich expansion: M.2 B key for Storage, M.2 E key for wireless, 2 SATA(RAID 0,1,5)
- TPM2.0 support
- SUSI API, WISE-DeviceOn and Embedded Software
*More information about the processors in the datasheet
Additional information
Processor System |
|
| Chipset | H610E |
| BIOS | AMI EFI 256Mb SPI |
Expansion Slot |
|
| M.2 | 1 B-Key for SSD, 1 E-Key for Wireless connection |
| PCIe x4 | PCIe x4 Gen3 |
Memory |
|
| Technology | Dual Channel DDR5, up to 5600 MHz (non-ECC) |
| Max. Capacity | 96GB (up to 48GB per SODIMM) |
| Socket | 2 x 262pin SODIMM |
Graphics |
|
| Controller | up to Intel® UHD Graphics 770 |
| HDMI | HDMI2.1, supports max. resolution 4096 x 2160 @ 60 Hz |
| DP | DP1.4b, supports max. resolution 4096 x 2160 @ 60 Hz |
| eDP | By Option, with internal pin header, supports max. resolution 4096 x 2160 @ 60 Hz (eDP colay with LVDs) |
| LVDS | By Default, internal pin header, supports singel/dual channel 18/24-bit with maximum resolution up to 1920 x 1200 @ 60 Hz |
| Multi Displays | up to 3 independent displays (combination of 1DP, 1HDMI, 1LVDS) |
Network |
|
| ETHERNET | up to 2500 Mb/s |
| Controller | Intel i226 |
| Connector | 3 x RJ45 |
| SATA | |
| Max data transfer rate | 600 MB/s |
| Channel | 2 x SATAIII |

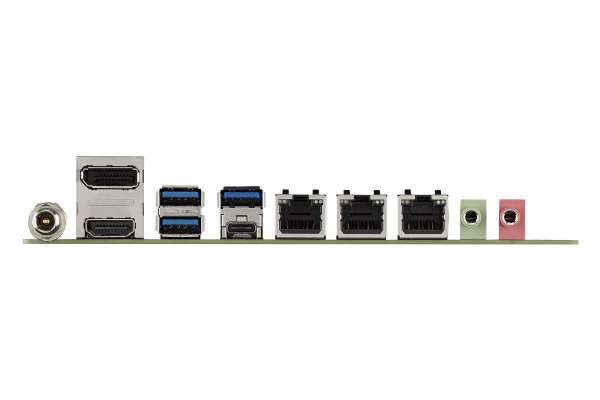

Rear I/O |
|
| DP | 1 |
| HDMI | 1 |
| Ethernet | 3 |
| USB | Up to 4 USB3.2 (H610E: 2 USB3.2 Gen1) |
| Audio | 1 (Line out/Mic in) |
Internal Connector |
|
| USB | 4 USB2.0 |
| eDP/LVDS | 1 LVDS (eDP colay with LVDS) |
| Serial | 4 (COM1 RS-232, supports 5V/12V by jumper selection, COM2 & 3 RS232/422/485, COM4 RS-232) |
| SATA | 2 |
| M.2 |
|
| GPIO | 8-bit |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1 ~ 255 sec/min |
Power Requirements |
|
| Input voltage | 12-24V DC-in |
| Connector | DC Jack + ATX 4pin header |
Environment |
|
| Temperature | Operating: 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution |
| Storage | Non-Operating: -40 ~ 85° C (-40 ~ 185° F) |
Physical Characteristics |
|
| Dimensions | 170 mm x 170 mm (6.69" x 6.69") |
