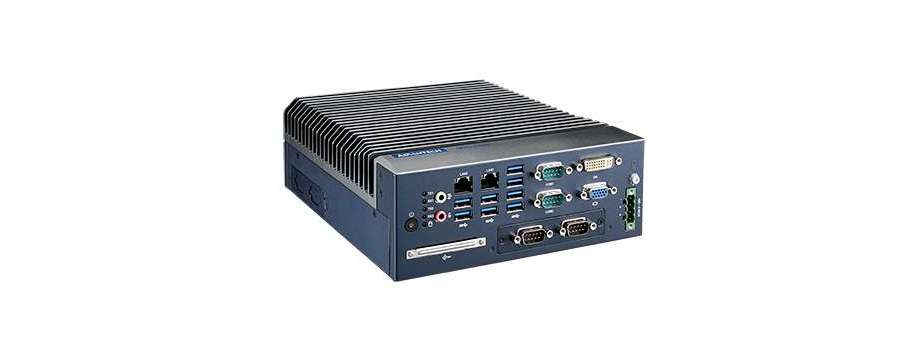

Compact Fanless System with 6th Gen Intel® Core™ i Processor Advantech MIC-7500
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| MIC-7500B-19B1 | Промисловий безвентиляторний комп'ютер Advantech MIC-7500 i3-6102EQ,1.9GHz,Modular IPC | 79 398,1 | |
| MIC-7500B-S9B1 | Компактний промисловий комп`ютер Advantech MIC-7500, Core i5-6442EQ,1.9GHz,Modular IPC | 88 643,8 | |
| MIC-7500B-U0B1 | Промисловий безвентиляторний комп'ютер Advantech MIC-7500 i7-6822EQ,2.0GHz,Modular IPC | 106 469,0 | |
| MIC-7500B-U4B1 | Промисловий безвентиляторний комп'ютер Advantech MIC-7500 G3900E,2.4GHz,Modular IPC | 63 801,6 | |
| MIC-7500B-U8B1 | Промисловий безвентиляторний комп'ютер Advantech MIC-7500 Fanless, i7-6820EQ,2.8GHz,Modular IPC | 106 469,0 |
- Intel® 6th Gen Core™ i7/i5/i3/Celeron® (BGA-type) processor with Intel® QM170 chipset
- VGA and DVI output
- 2 x GigaLAN and 8 x USB 3.0
- 2 x RS-232/422/485 and 4 x RS232 serial ports (with expansion cable)
- 1 x 2.5" HDD/SSD, 1 x CFast, and 1 x mSATA
- 9~ 36 V DC input power range
- IP40 dust proof for deployment in harsh environment
- Supports FlexIO and iDoor technology, flexible configure additional HDMI, DVI, DIO, Remote switch IO
- Supports Advantech i-Modules
- Supports Advantech SUSIAPI and embedded software APIs
| Processor and Chipset | |||||
| CPU | Intel® Core™ i7-6820EQ | Intel® Core™ i7-6822EQ | Intel® Core™ i5-6442EQ | Intel® Core™ i3-6102E | Intel® Celeron® G3900E |
| Core Numbers | 4 | 4 | 4 | 2 | 2 |
| Base Frequency | 2.8 GHz | 2.0 GHz | 1.9GHz | 1.9 GHz | 2.4 GHz |
| Max Turbo Frequency | 3.5 GHz | 2.8 GHz | 2.7 GHz | ||
| L3 Cache | 8 MB | 8 MB | 6 MB | 3 MB | 2 MB |
| Chipset | Intel® QM170 | ||||
| TDP | 45W | 35W | 35W | 35W | 45W |
| BIOS | AMI® SPI 64 Mb |
Additional information
Memory |
|
| Technology | Dual-channel DDR4 2133 MHz (without ECC) |
| Socket | 2 x 260-pin DDR4 SODIMM (up to 16 GB per socket) |
| Maximum Capacity | 32GB |
Display |
|
| Chipset | Intel® HD Graphics 530, supports DirectX 12 |
| VGA | 1 x DB15, up to 2048 x 1536 maximum resolution |
| DVI | 1 x DVI, up to 1920 x 1080 maximum resolution @ 30Mhz |
| Multiple Display | Supports 3 x independent displays (third display output via optional cable) |
Ethernet |
|
| Controller |
|
| Interface | 2 x RJ45 |
Storage |
|
| HDD/SSD | 1 x 2.5" HDD/SSD |
| CFast | 1 |
| mSATA | 1 |
| RAID | 0/1 |
I/O |
|
| USB | 8 x USB 3.0 and 1 x internal USB 2.0 |
| Serial Port | 2 x DB9, RS232/422/485 with automatic flow control and 4 x RS-232 (with expansion cable) |
| Audio | 2 (1 x line out and 1 x mic in) |
Expansion |
|
| Module | Supports Advantech i-Modules |
| Mini PCIe | 1 x mini PCIe (via USIM), 1 x mini PCIe/mSATA |
LED and Switch |
|
| LED | 2 (1 x Storage and 1 x Power), 4 for COM1 TX/RX and COM2 TX/RX |
| Button | 1 x Power on/off switch |
Power |
|
| Type | ATX/AT |
| Input Voltage | 9 ~ 36 VDC |
| Power consumption |
|
Watchdog Timer |
|
| Output | System reset |
| Interva | Programmable 1 ~ 255 sec/min |
Environment |
see data sheet for more details |
Mechanical |
|
| Dimensions (W x H x D) | 73 x 192 x 230 mm (2.91" x 7.55" x 9.05") |
| Weight | 2.9 kg (6.39 lbs) |
| Installation | Desktop/wall mount |
Certifications |
|
| EMC | CE/FCC Class A, CCC, BSMI |
| Safety | UL, CCC, BSMI |
OS Support |
Windows 10, Windows 10 IoT, Windows 8.1 (64 bit), Windows 7, Linux OS |
