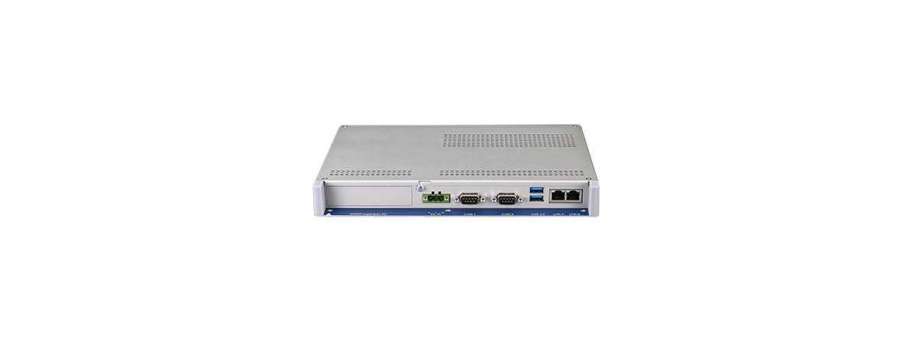

Modular TPC - Computing Box Module with Intel Apollo Lake Atom and Celeron CPU Advantech TPC-B200

Price and avalability

Partnumber Description Price VAT incl Avalability
TPC-B200-J12AE TPC-2000 Box module, Celeron J3455 1.6GHz, 4G  46 186,9
TPC-B200-E12AE TPC-2000 Box module, Atom E3940 1.6GHz, 4G  46 186,9

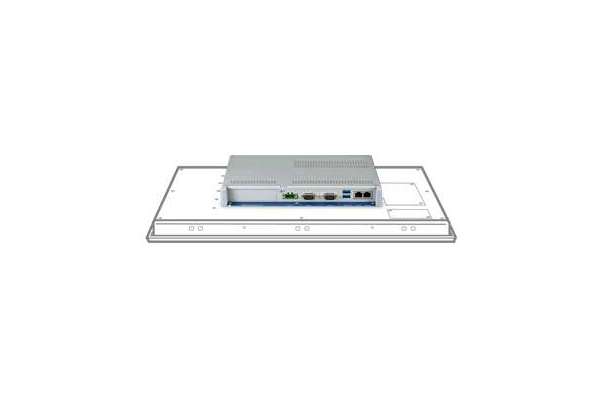

TPC-B200 computing box modules are powered by Intel® Atom™ E3940/Celeron® J3455 Processors to provide compact and fanless control panel solutions that deliver highperformance computing. With a highly flexible modular design, TPC-B200 allows users to change the panel sizes (12"-23.8").

  • Computing Box powered by Intel® Atom™ E3940/Celeron® J3455 with 4 GB (up to 8GB) SODIMM SDRAM
  • Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology) (iLINK technology)
  • Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
  • 1 x Full-size mini PCIe
  • M.2 and SSD expansion
  • Supports TPM2.0 hardware security
  • Wide Temp. Range -20~60 °C (Atom™ E3940)

Additional information

General

Certification BSMI, CCC, CE, FCC Class A, CB/UL
Cooling System Fanless design
Dimensions (W x H x D) 269 x 203 x 30 (mm)
Enclosure Die cast aluminum alloy
Mounting VESA Mount, Desktop, Wall or Panel Mount
OS Support Windows 10 IoT Enterprise LTSB/LTSC
Security TPM 2.0 (built-in)
Power Input 24 VDC ± 20%
Weight (Net) 1.8 kg (4 lbs)

System Hardware

CPU
  • Intel® Atom™ E3940
  • Intel® Celeron® J3455
Memory 4GB DDR3L SDRAM (up to 8GB)
Storage
  • 1 x M.2 (2242)
  • 1 x 2.5" SATA SSD
LAN 2 x 10/100/1000BASE-T
Expansion Slot 1 x Half-size PCIe (supports GSM 11.11 SIM card)
I/O
  • 2 x RS-232/422/485
  • 2 x USB 3.0, 2 x USB 2.0
  • 1 x Audio line out
  • 1 x DisplayPort 1.2 Out
Power Input 24 VDC ± 20%
Security TPM 2.0 (built-in)

Environment

Humidity 95% RH @ 40°C, non-condensing
Ingress Protection IP66 (for optional panel module with “Panel Mount”)
Operating Temperature
  • -20 °C~60 °C for TPC-B200-E12AE
  • 0 °C~60 °C for TPC-B200-J12AE
Storage Temperature -20°C~70°C
