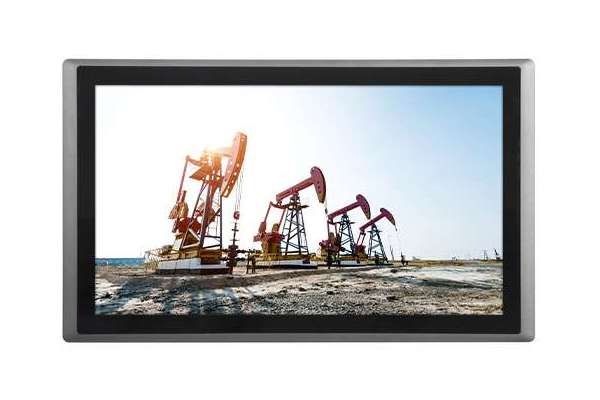

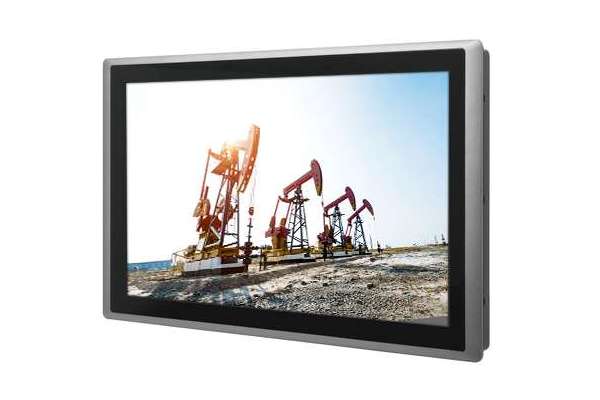

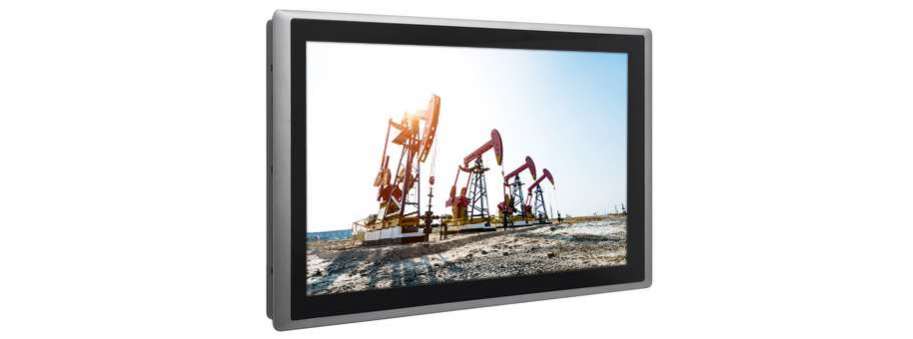

24" TFT-LCD Sunlight Readable and Modular Panel PC with 8th Gen. Intel® Core™ U Series Processor Cincoze CS-W124-P2102

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

The CS-100/P2102 Series is a 12.1" - 24” TFT-LCD sunlight readable panel PC that offers sufficient screen brightness for better image quality in outdoor usage. The panel PC is powered by Intel® 8th generation Core™ U series processor that brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the CS-100/P2102 Series is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory. With its slim design, the CS-100/P2102 Series offers extensive I/O to fulfill different connectivities and can easily fit into almost any space limited environment. For wireless connectivity, the CS-100/P2102 Series has 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to enable Wi-Fi, 3G, and LTE communication. Besides, the CS-100/P2102 Series supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CS-100/P2102 Series is appropriate for tough outdoor applications under direct sunlight. Furthermore, the CS-100/P2102 Series supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.

  • 24" TFT-LCD with Ultra-high Brightness up to 1,500 nits and 1920 x 1080 Resolution
  • Onboard 8th Generation Intel® Core™ U Series Processor
  • 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
  • Supports Triple Independent Display
  • Integrated USB 3.2 Gen 2 supports up to 10Gbps
  • M.2 E Key Socket for Wireless Module or Intel CRF Module
  • Supports Ignition Sensing Function (IGN) (with optional CFM module)
  • Supports 2x PoE+ Function (with optional CFM module)
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • True Flat IP65 Compliant Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • 2x Universal Bracket (For P2102E only)

Additional information

Display
LCD Size 24” (16:9)
Max. Resolution Max. Resolution
Brightness (cd/m2) 1500
Contrast Ratio 5000 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.27675 (H) x 0.27675 (V)
Viewing Angle (H-V) 178 / 178
Backlight MTBF Backlight MTBF

Touch Screen
Touch Type Projected Capacitive

Physical
Dimension ( W x D x H ) 605 x 373 x 63.2 mm
Weight Information 6.64 kg
Mechanical Construction Flat Rugged Aluminum Die-casting Bezel

Environment
Front Panel Protection IP 65 Compliant
Operating Temperature -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature -30°C to 80°C
Relative Humidity 80% RH @ 40°C (Non-condensing)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 3V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1

System
Processor

Onboard 8th Intel® Core™ U Processors (Whiskey Lake)

- Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz)

- Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W
Memory
  • 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket
  • Support Un-buered and Non-ECC Type up to 64 GB

Graphics
Graphics Engine Integrated Intel® UHD Graphics 620
Maximum Display Output Supports Triple Independent Display
CDS 1x CDS Connector for Cincoze Display Module
VGA 1x VGA Connector(1920 x 1200 @60Hz)
DP 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840 x2160 @ 60Hz

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

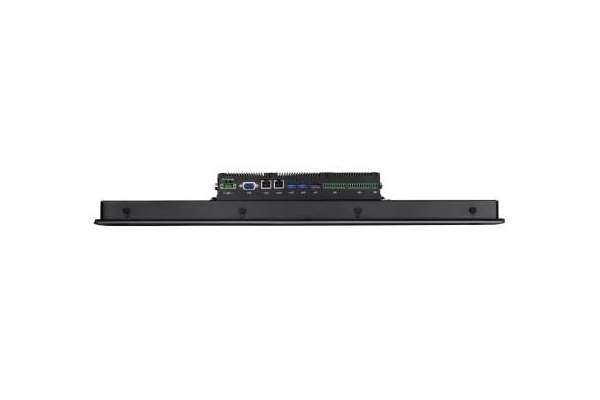

I/O
LAN

2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45

- GbE1: Intel® I219LM

- GbE2: Intel® I210
USB 3x USB 3.2 Gen2 (Type A), 2x USB 2.0 (Type A)
Serial Port 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
DIO 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block

Storage
SSD/HDD 2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1

Expansion
Mini PCI Express 2x Full-size Mini-PCIe Sockets
PCI Express

1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card (for P2102E)

* Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
M.2 E Key Socket 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
SIM Socket 1x Front Accessible SIM Socket
Universal Bracket 2x Universal I/O Bracket (for P2102E)
CFM (Control Function Module) Interface 2x CFM Interface for optional IGN or PoE Module Expansion
CDS (Convertible Display System) Technology 1x Convertible Display System (CDS) Interface

Power
Power Button 1x ATX Power On/Off Switch
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional) 1x Optional AC/DC 12V/5A, 60W or 24V/5A 120W
Remote Power On/Off 1x Remote Power On/Off Connector, 2-pin Terminal Block
Physical
Dimension( W x D x H )
  • 254.5 x 190 x 41.5mm (for P2102)
  • 254.5 x 190 x 61 mm (for P2102E)
Weight Information
  • 2.2 kg (for P2102)
  • 2.7 kg (for P2102E)
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS / DIN Rail
Physical Design

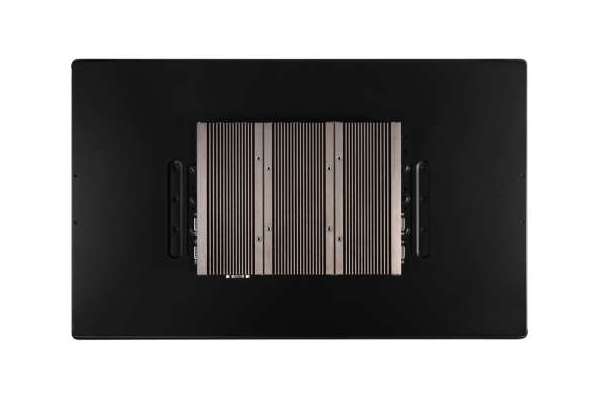

  • Fanless Design
  • Jumper-less Design

Operating System
Microsoft® Windows® Microsoft® Windows®
Linux Supports by project

Environment
Operating Temperature Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
Storage Temperature -40°C to 70°C
Relative humidity 95% RH @ 70°C (Non-condensing)
Shock Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration

Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) (for P2102)

• Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)

• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ CV-W124 only, according to IEC60068-2-6) (for P2102E)
EMC CE, UKCA, FCC, ICES-003 Class A
