7/6th Generation Intel® Core™ i3 / i5 / i7 High Performance, Modular and Expandable Rugged Embedded Computer Cincoze DS-1100

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
DS-1100-R20 Компактний комп'ютер Cincoze DS-1100-R20, 7/6th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer  60 718,7

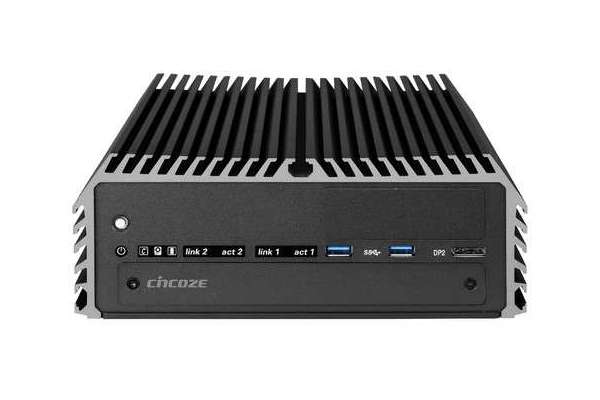

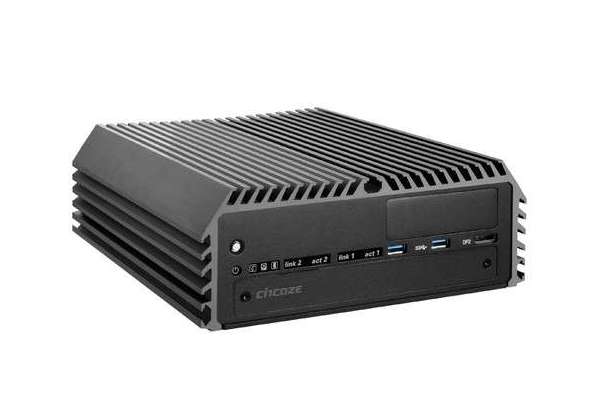

Cincoze DS-1100 Series is a high-performance fanless embedded computer powered by 7/6th generation Intel® Core™ platform supporting a wide range of desktop CPUs (socket-type, LGA1151), and accommodates two DDR4 sockets up to 64 GB which allows DS-1100 Series to fulfill all kinds of high-end computing requirements. DS-1100 Series provides powerful functionalities such as rich I/Os, Power over Serial, Electrical Isolated Serial Ports, Optical Isolated Digital I/O, multiple LAN, Power over Ethernet, M12 connectors, RAID 0/1, Power Ignition Sensing and Instant Reboot. Thanks to Cincoze’s CMI & CFM Technology, it allows you to configure DS-1100 Series according to your specific needs with ready-to-use modules. DS-1100 Series also supports maximum 2 PCI/PCIe expansion slots with different combination of interfaces for expanding all kinds of application add-on cards. DS-1100 Series is truly a rugged computing system with features of wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock and vibration, high-standard industrial protections and the integrated SuperCap for battery maintenance-free operation. DS-1100 Series is suitable to deploy in a harsh environment and for critical applications, and it is totally maintenance-free.

  • Supports 7/6th-Gen Intel® Core™ i3 / i5 / i7 Socket-type CPU (LGA1151)
  • 2x DDR4 SO-DIMM Socket, 2,133MHz, Supports Up to 64 GB
  • Triple Independent Display (1x DVI-I, 2x DP)
  • 2x 2.5" SATA HDD/SSD bay (Gen3), Supports RAID 0/1
  • 2x CMI Interfaces with 6 Types of Optional Modules for I/O Expansion
  • 1x CFM Interface for Adding Optional Power Ignition Sensing (IGN) Module
  • Supports 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
  • Wide Operating Temperature (-40°C to 70°C)
  • EN50121-3-2 Certified/ LVD EN62368-1
  • E-Mark (E13, No.10R-0514229) Certified

Additional information

Processor
7th Generation Intel® CPU (Kaby Lake-S)
  • Intel® Core™ i7-7700T Processor (8M Cache, up to 3.8 GHz, 35W TDP)
  • Intel® Core™ i5-7500T Processor (6M Cache, up to 3.30 GHz, 35W TDP)
  • Intel® Core™ i3-7101TE Processor (3M Cache, 3.40 GHz, 35W TDP)
  • Intel® Celeron® G3930TE Processor (2M Cache, 2.70 GHz, 35W TDP)
  • Intel® Core™ i7-7700 Processor (8M Cache, up to 4.20 GHz, 65W TDP)
  • Intel® Core™ i5-7500 Processor (6M Cache, up to 3.80 GHz, 65W TDP)
  • Intel® Celeron® G3930E Processor (2M Cache, 2.90 GHz, 54W TDP)
6th Generation Intel® CPU (Skylake-S)
  • Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W TDP)
  • Intel® Core™ i5-6500TE Processor (6M Cache, up to 3.30 GHz, 35W TDP)
  • Intel® Core™ i3-6100TE Processor (4M Cache, 2.70 GHz, 35W TDP)
  • Intel® Pentium® Processor G4400TE (3M Cache, 2.40 GHz, 35W TDP)
  • Intel® Celeron® Processor G3900TE (2M Cache, 2.30 GHz, 35W TDP)
  • Intel® Core™ i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W TDP)
  • Intel® Core™ i5-6500 Processor (6M Cache, up to 3.60 GHz, 65W TDP)
  • Intel® Core™ i3-6100 Processor (3M Cache, 3.70 GHz, 51W TDP)
  • Intel® Pentium® Processor G4400 (3M Cache, 3.30 GHz, 54W TDP)
  • Intel® Celeron® Processor G3900 (2M Cache, 2.80 GHz, 51W TDP)

Chipset

 Intel® Q170

BIOS

 AMI 16Mbit SPI BIOS

Memory

 2x DDR4 260-pin SO-DIMM socket, support up to 64 GB (2133/2400 MHz, un-buered and non-ECC type)

Graphics

 Intel® HD Graphics supports triple independent display (1x DVI-I, 2x DisplayPort)
Audio
  • Realtek® ALC888-GR
  • High Definition Audio
I/O Interface
  • 1x DVI-I Connector, Resolution 1920 x 1080
  • 2x DisplayPort Connector, Resolution 3840 x 2160
  • 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 - GbE1: Intel I219-LM - GbE2: Intel I210-IT
  • 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
  • 6x USB 3.0, Type-A
  • 2x USB 2.0, Type-A
  • 1x Line-out & 1x Mic-in, Phone Jack 3.5mm
  • 1x ATX Power On/Off Switch
  • 1x AT/ATX Mode Switch
  • 1x Clear CMOS Switch
  • 1x Remote Power On/Off Connector, 2-Pin Terminal Block
  • 1x Remote Reset Connector, 2-Pin Terminal Block
  • 1x External FAN Connector, 4-Pin Terminal Block

Storage
  • 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
  • 3x mSATA (shared by Mini-PCIe socket) (Gen3)

Power Requirement
  • Support AT/ATX Power Type
  • Power Input Voltage 9~48VDC
  • One 3-Pin Terminal Block Connector
  • Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional)

Expansion
  • Supports CFM (Control Function Module) Technology - CFM IGN Module

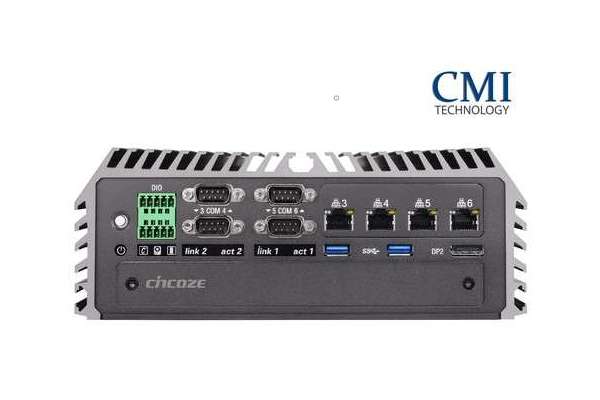

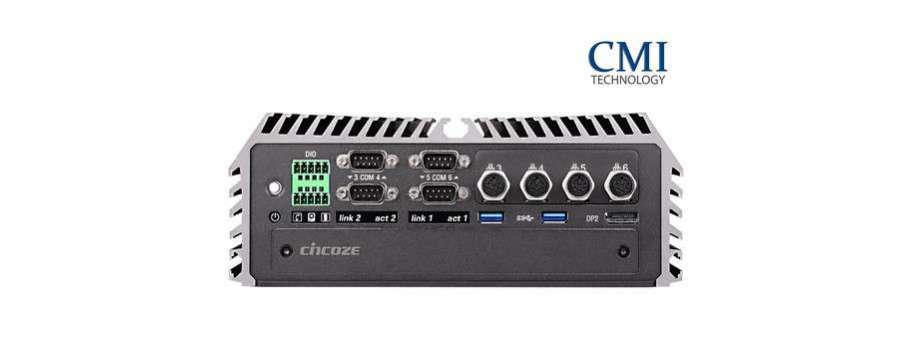

  • Supports CMI (Combined Multiple I/O) Technology: - 4x RJ45 GbE LAN Module - 4x M12 GbE LAN Module - 4x RJ45 GbE PoE+ Module - 4x M12 GbE PoE+ Module - 4x RS-232/422/485 + 8x Optical Isolated DIO Module - 4x Isolated RS-232/422/485 + 8x Optical Isolated DIO Module
  • 3x Full-size Mini-PCIe Sockets
  • 1x SIM Socket

Other Function
  • Support Instant Reboot Technology (0.2 sec)
  • SuperCap Integrated for CMOS Battery Maintenance-free Operation
  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset
  • Power Ignition Sensing (IGN) Function (with Optional CFM module) 12V/24V Selectable

Physical
  • Dimension (WxDxH): 227 x 261 x 88 mm
  • Weight: 4.7 kg
  • Extruded Aluminum with Heavy Duty Metal
  • Support Wall Mounting
  • Unibody Chassis
  • Fanless Design
  • Jumper-less Design

Protection
  • Reverse Power Input Protection
  • Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection: 15A
  • ESD Protection: +/-8kV (air), +/-4kV (contact)
  • Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50us waveform)

Operating System
  • 7th Generation Intel® CPU (Kaby Lake-S): Windows® 10
  • 6th Generation Intel® CPU (Skylake-S): Windows® 10/ 8.1/ 7
  • Linux : Supports by project

Environment
  • Operating Temperature:
  • 7th Generation Intel® CPU (Kaby Lake-S) - 35W TDP CPU: -40°C to 50°C - 51W~65W TDP CPU: -40°C to 45°C
  • 6th Generation Intel® CPU (Skylake-S) - 35W TDP CPU: -40°C to 70°C - 51~65W TDP CPU: -40°C to 50°C (With extended temperature peripherals; Ambient with air flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 70°C @ 95% RH (Non-condensing)
  • EMC: CE, FCC Class A, EN50121-3-2, E-Mark (E13, No.10R-0514229)
  • Safety: LVD EN62368-1
