Modular Box PC Advantech UNO-2484G V2

Intel® Core™ 11th i7/i5/i3/Celeron® Processor Modular Box PC with 4 x GbE, 4 x USB, 2 x M.2, 2 x mPCIe, HDMI 1.4, DP1.4a Advantech UNO-2484G V2

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
UNO-2484G-B731AE	Промиcловий компактний комп'ютер Advantech UNO-2484G i7-1185G7E 1.8GHz, 8G RAM, 4xGbE, 4xUSB, HDMI	102 016,0	Доступно
UNO-2484G-B531AE	Промиcловий компактний комп'ютер Advantech UNO-2484G i5-1145G7E 1.5GHz, 8G RAM, 4xGbE, 4xUSB, HDMI	84 974,4	Доступно
UNO-2484G-B331AE	Промиcловий компактний комп'ютер Advantech UNO-2484G i3-1115G4E 2.2GHz, 8G RAM, 4xGbE, 4xUSB, HDMI	66 429,4

Advantech’s UNO-2000 series of embedded automation computers are highly rugged, fanless systems. The modular design offers vigorous computing performance and flexible scalability with various I/O ports to support IoT Connectivity. The UNO-2484G V2 features powerful computing capacity, optimized I/O port and expansion options supporting high speed and low latency wire/ wireless connectivity and NVME storage for IoT edge data transmission. 4K Ultra HD display ports provide high resolution and with an optional second expansion stack, users can have even more I/O options with Advantech’s iDoor technology.

• Intel® Core™ 11th i7/i5/i3/Celeron® Processor with 8GB DDR4 3200Mb/s memory
• 4 x GbE, 3 x USB 3.2 Gen2, 1 x USB2.0, 1 x HDMI 1.4, 1 x DP 1.4a, 4 x RS232/422/485
• Optional 2nd layer for up to 2x iDoor extension or customize for domain applications
• Compact fanless design
• Ruggedized by zero cable and lockable I/O design
• Display port supports 4K Ultra HD
• Supports 30+ iDoor combination to expand wireless connectivity, industrial fieldbus or more I/O
• Supports NVME storage w/ high data-transmission efficiency

Additional information

General
Certification	CE, FCC, UL, CCC, BSMI
Dimensions (W x D x H)	200 x 140 x 40 (7.8" x 5.6" x 1.6" ) for single stack 200 x 140 x 70 (7.8" x 5.6" x 2.8") for single stack w/ expansion stack UNO-2484G V2 version
Form Factor	Regular size with stackable design
Enclosure	Aluminum housing
Mounting	Stand, wall, VESA (Optional), DIN-rail (Optional)
Weight (Net)	Single stack: 1.4kg (3.09lbs)
Power Requirement	10 - 36 VDC
Power Consumption	30.2W (Typical), 85W (Max)
OS Support	Microsoft® Windows 10, Windows 11, Advantech Linux (Ubuntu 20.04 Desktop/ Server)
Software Compatibility	WISE-Edge365, Azure IoT, AWS greengrass, VMware RedHat
System Hardware
BIOS	AMI EFI64 Mbit
Watchdog Timer	Programmable 255 levels timer interval, from 1 to 255 sec
Hardware Security	TPM2.0 2/ FW 7.85
Processor	11th Gen Intel Core Core™ i3-1115G4E dual-core 2.2GHz Core™ i5-1145G7E quad-core 1.5GHz Core™ i7-1185G7E quad-core 1.8GHz
Memory	Built-in 8GB DDR4 3200 MHz, supports up to 64GB (2 slots)
Graphics Engine	Intel® Iris® Xe Graphics
Ethernet	LAN A: Intel i219-LM GbE, IEEE 802.3, 802.1as/1588 LAN B-D: Intel® i226-LM GbE, IEEE 802.3, 802.1as/1588
LED Indicators	LEDs for Power, HDD, LAN (Active status), RTC Battery low
Expansion/Storage	1 x M.2 B key slot (USB Signal for 3042/3052 LTE/5G/4G/LTE/Wifi module, SATA signal for storage) 1 x 2.5" SSD SATA drive bay (support SSD/HDD height up to 9.5mm) 1 x M.2 M key (PCIex4) supports 2280 NVME SSD 2 x mPCIe slot (PCIe, USB2.0 signal)
I/O Interfaces

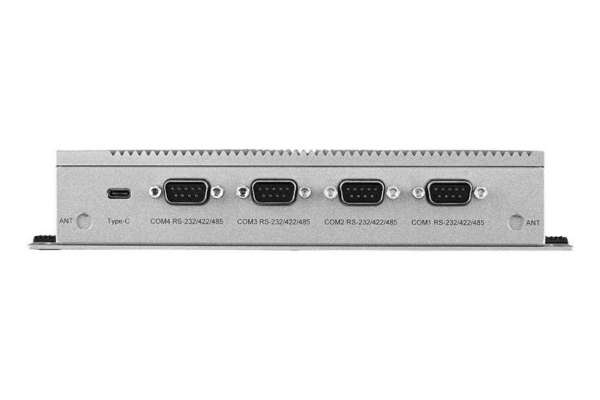

Serial Ports	4 x RS 232/422/485, 50-115.2 kpbs speed
LAN Ports	1 x RJ45 , 10/100/1000 Mbps, IEEE 802.3 3 x RJ45 , 10/100/1000/2500 Mbps, IEEE 802.3
USB Ports	3 x USB 3.2 Gen2, 1 x USB2.0
Displays	1 x HDMI 1.4 (3840x2160@30Hz) 1 x DP 1.4a (4096x2304@60Hz)
USB Type-C	1 x USB3.2 Gen. 2x2 20Gbps, support DP1.4a (4096x2304@60Hz) via Alt. mode
Power Connector	1 x 2 pins, terminal block
Environment
Operating Temperature	-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7 m/s airflow
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Relative Humidity	10 ~ 95% RH @ 40°C, non-condensing
Shock Protection	Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Vibration Protection	Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA)
Ingress Protection	IP40
