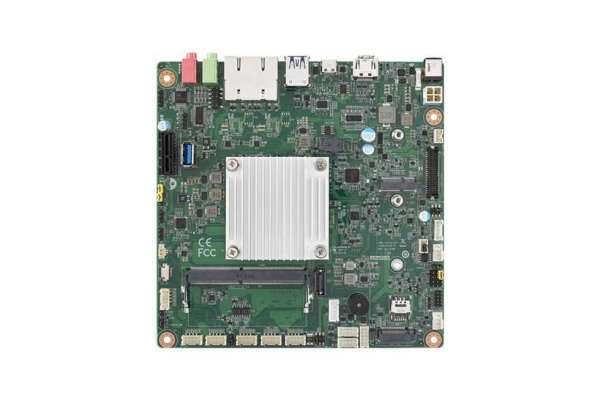

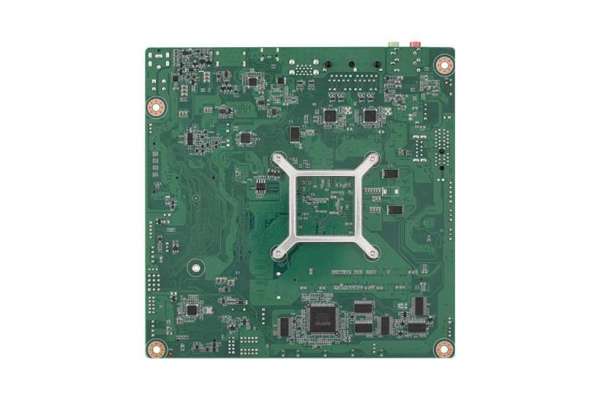

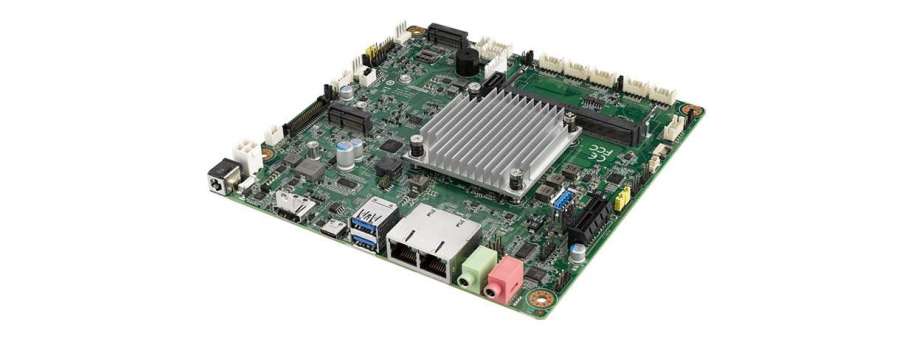

Mini-ITX Motherboard Advantech AIMB-219

Mini-ITX Motherboard Intel® Core™ i3 and Processor N-series (codename: Alder Lake-N) Advantech AIMB-219

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
AIMB-219NC3F-LDA1	MiniITX ADL-N i3-N305 BGA 15W 8C	33 688,8
AIMB-219NC3F-LDA1	MiniITX ADL-N i3-N305 BGA 15W 8C	33 688,8
AIMB-219N9F-LDA1	MiniITX ADL-N N97 BGA 12W 4C	19 189,2
AIMB-219N5L-LDA1	MiniITX ADL-N N50 BGA 6W 2C	15 764,8

• Supports Intel Alder Lake-N processor
• Up to 16GB DDR4 3200MT/s with one SO-DIMM
• Triple independent display with 1 DP, 1 HDMI, 1 LVDS(or eDP)
• Abundant I/O expansion: 1 M.2 B-key & 1 M.2 E-key, 3 USB 3.2 Gen2x1, 5 USB 2.0, 1 USB Type-C and 6 COM
• Mini-ITX low profile motherboard, fanless design
• Supports Device-On and Embedded Software APIs

Processor System
CPU (10nm)	i3-N305	N200	N97	N50
Core Number	8	4	4	2
Base frequency (GHz)	1.8	1.0	2.0	1.0
TDP (W)	15	6	12	6

Additional information

Processor System
BIOS	AMI EFI 256Mb SPI
Expansion Slot
M.2	1 x E-Key for wireless module (WiFi/BT), 1 x B-key for storage (SSD/LTE)
PCIe	1 PCIe x1 Gen3 (8GT/s)
Memory
Technology	Single channel DDR4 3200 MT/s (non-ECC)
Max. Capacity	16 GB
Socket	1 x 260pin SO-DIMM
Graphics
Controller	Intel® UHD Graphics
HDMI	1 x HDMI 2.1 TMDS, up to 4Kx2K @ 60 Hz (refer to Ordering Information)
DP	1 x DP 1.4a, up to 4096x2304 @ 60 Hz (via USB Type-C)
LVDS	1 (default, pin header, supports dual channel 18/24-bit, up to 1920 x 1200 @ 60 Hz)
eDP	1 (option, pin header, up to 4096 x 2304 @ 60 Hz)
Multi Displays	Triple displays
Network
Ethernet	10/100/1000/2500 Mbps
Controller	RTL8111K (1GbE) or RTL8125BG (2.5GbE), refer to Ordering Information
Connector	2 x RJ45
Audio
Codec	Realtek ALC888S, High Definition Audio (HD), Line out, Mic-in
Amplifier	Yes, 6W
SATA
Max data transfer rate	6.0 Gb/s
Channel	1 x SATAIII

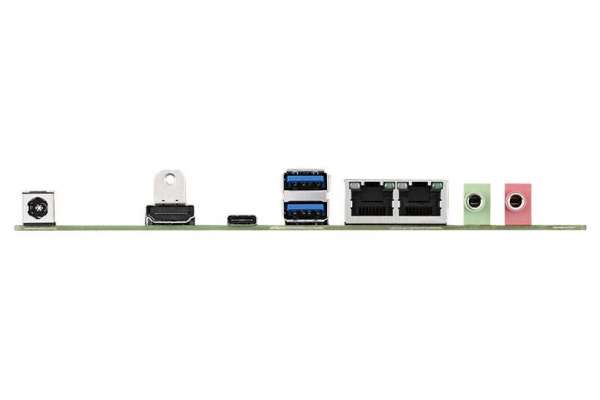

Rear I/O
DP (via USB Type-C)	1
HDMI	1
Ethernet	2
USB	2 x USB3.2 Gen2x1 + 1 x USB3.2 Gen2x1 Type-C
Audio	1 (Line-Out, Mic-In)
Internal Connector
USB	5 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A)
LVDS/eDP	1 (eDP colay with LVDS)
Serial	COM1~COM2: Support RS-232 by default COM3: Support RS-232/422/485(BOM option), auto flow control by BIOS COM4: Support RS-232 by default; CCtalk by BOM option COM5: Support RS-232 by default; TTL by BOM option COM6: Support RS-232 by default; Ring-in 5V/12V select by jumper
SATA	1 x SATAIII 6.0 Gb/s
M.2	1 x B-key (dimension: 2242/2280/3042) 1 x E-key (dimension: 2230)
GPIO	8-bit
Watchdog Timer
Output	System reset
Interval	Programmable 1 ~ 255 (second or minute)
Power Requirements
Input voltage	12V DC-in
Connector	DC Jack. Internal 4-pin ATX
Power consumption	Configuration Intel Core i3-N305, 1pcs 16 GB DDR4 3200MT/s SO-DIMM
	Max. - 39.7 W
	Typical - 26.4 W
Environment
Temperature	Operating: 0 ~ 60 °C (32 ~ 140 °F)
Storage	Non-Operating: -40 ~ 85 °C (-40 ~ 185 °F)
Physical Characteristics
Dimensions	170 mm x 170 mm (6.69" x 6.69")
