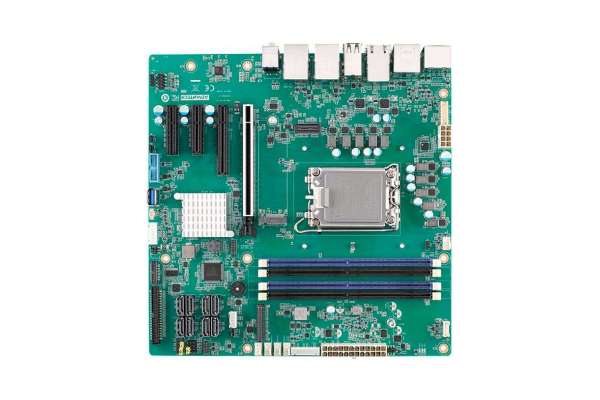

Intel® 12th Gen Core™ processors (Alder Lake-S) i9/i7/i5/i3 LGA1700, MicroATX with 2 DP++/HDMI/eDP, 1 GbE LAN, 3 2.5GbE LANs, 8 USB 3.2, 1 USB 3.2 Type-C, 6 COM Advantech AIMB-588
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIMB-588Q-00A1 | Промислова материнська плата Advantech AIMB-588Q LGA1700 mATX Q670E 2 DP/HDMI/8 SATA/6COM/TPM | 28 702,9 | |
| AIMB-588R-00A1 | LGA1700 mATX R680E 2 DP/HDMI/8 SATA/6COM/TPM | 30 757,3 | |
| AIMB-588H-00A1 | Промислова материнська плата Advantech AIMB-588H LGA1700 mATX H610E 2DP/HDMI/4 SATA/6COM/TPM | 24 713,4 |
- Supports Intel® 12th Gen Core™ processors (Alder Lake-S) with Q670E/ R680E/ H610E chipset
- Four displays. (x2 DP++, HDMI, eDP)
- Intel AMT and Intel vPro Technology

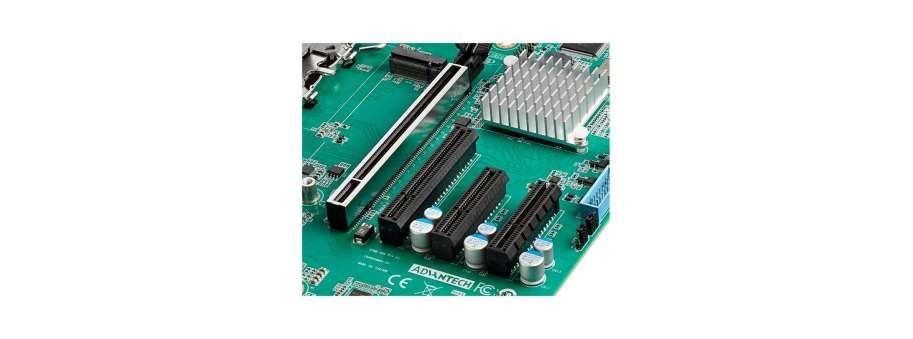

- PCIe x16 slot Gen5, PCIe x4 slot Gen4, PCIe x4 slot Gen3
- Max up to x8 USB 3.2, x1 USB 3.2 Gen2 Type C, x4 USB 2.0, x8 SATAIII, x1 GbE LAN, x3 2.5GbE LANs, x1 M.2 M-Key
- Software RAID 0, 1, 5, 10, TPM 2.0
- WISE-DeviceOn and Embedded Software APIs
See the Data sheet for more details
Additional information
Processor System |
|
| Supports Model | AIMB-588Q, AIMB-588R, AIMB-588H |
| Chipset | Q670E/R680E/H610E |
| BIOS | AMI BIOS UEFI 256 Mbits SPI |
Expansion Slot |
|
| PCIe x16 (Gen5) | 1 slot |
| PCIe x8 (Gen4) | (1 slot, optional) |
| PCIe x4 (Gen3) | 1 slot |
| PCIe x4 (Gen4) | 1 slot |
Memory |
|
| Technology | Dual Channel DDR5 up to 4400, ECC memory supported by CPU with Chipset R680E |
| Max. Capacity | 128GB (32 GB per DIMM) |
| Socket | Four 288-pin DDR5 UDIMM sockets, Dual Channel, Two DIMMs per channel |
Graphics |
|
| Controller |
|
| HDMI | 1, up to resolution 4096*2160@ 60Hz. Supports HDR |
| eDP | 1, up to resolution 3840 x 2160 @ 60 Hz (Internal pin header) |
| Display Port | 2, up to 4096 x 2304 @ 60Hz |
| Four Display | DP + DP + HDMI + eDP |
| Triple Display | DP + DP + HDMI, DP + DP + eDP, DP + HDMI + eDP |
| Dual Display | DP + HDMI, DP + DP, DP + eDP, HDMI + eDP |
Ethernet |
|
| Controller |
|
| Connector | RJ45 x2 (588Q) / RJ45 x4 (588R) / RJ45 x1(588H) |
SATA |
|
| Max Data Transfer Rate | 600 MB/s Max. (SATA 3.0) |
| Q'ty | 8 (AIMB-588Q); 8 (AIMB-588R), 4 (AIMB-588H) |

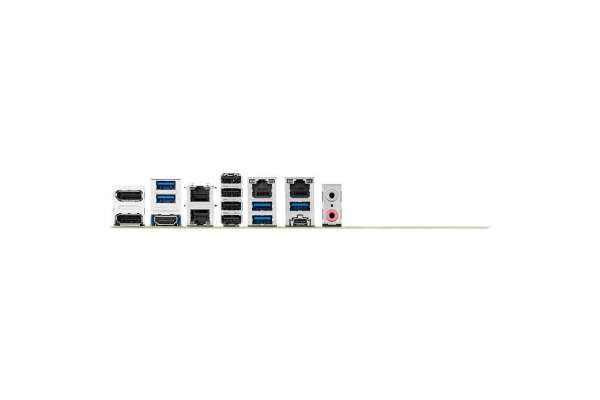

Rear I/O |
|
| Display Port | 2 |
| HDMI | 1 |
| Ethernet | 2 (AIMB-588Q); 4 (AIMB-588R);1(AIMB-588H) |
| USB |
|
| Audio | 2 (Mic-in/ Line-out) |
Internal Connector |
|
| USB 3.2 |
|
| USB 2.0 | 0 |
| Serial | 6 (5 x RS-232, 1 x RS-232/422/485 with auto flow control) |
| SATA 3.0 | 8 |
| Extended Display Port (eDP) | 1 |
| M.2 (M key) | 1 2280 NVMe PCIex4 (AIMB-588Q/AIMB-588R) |
| GPIO | 8-bit GPIO |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1 ~ 255 sec/min |
Environment |
|
| Temperature Operating | 0 ~ 60° C (14 ~ 158° F), depends on CPU speed and cooler solution |
| Temperature Non-Operating | -40 ~ 85° C (-40 ~ 185° F) |
Physical Characteristics |
|
| Dimensions | 244 mm x 244 mm (9.6" x 9.6") |
Power |
|
| Input Mode | ATX input |
