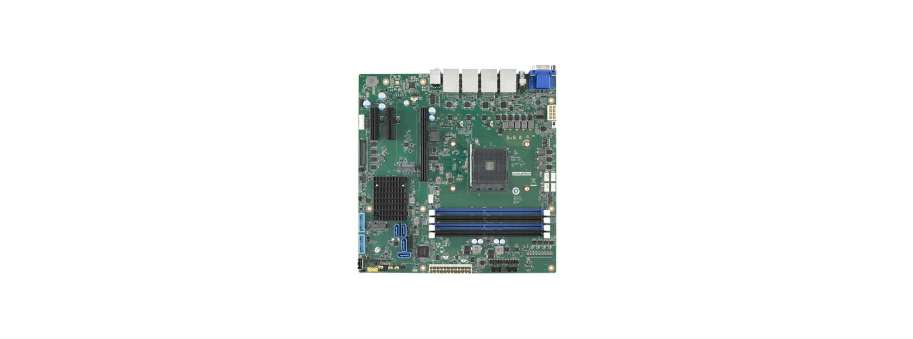

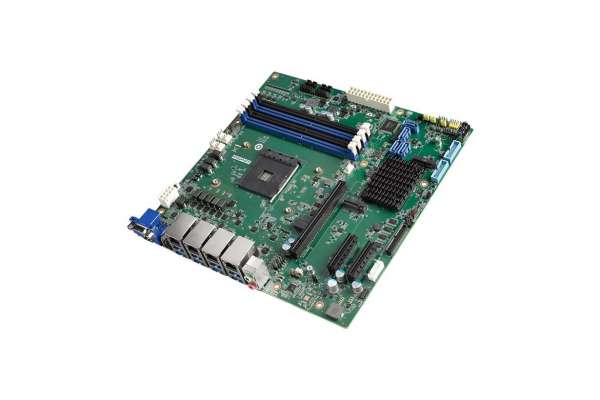

AMD AM4 Ryzen™ 5000 Series MicroATX with 1 DP/HDMI/VGA, 6 COM, 4 GbE LANs, 8 USB 3.2, 4 USB 3.0, 3 USB2.0 Advantech AIMB-522
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIMB-522G2-00A1 | Промислова материнська плата Advantech AMD AM4 Ryzen 5000 Series/MicroATX/1 DP/HDMI/VGA, 6 COM, 2 x 1GbE LAN, 8 USB 3.2, 3 USB 2.0. | 26 509,0 | |
| AIMB-522G4-00A1 | Промислова материнська плата Advantech AMD AM4 Ryzen 5000 Series/MicroATX/1 DP/HDMI/VGA, 6 COM, 2 x 2.5GbE, 2 x 1GbE LANs, 8 USB 3.2, 3 USB 2.0. | 28 503,7 |
- Supports AMD AM4 Ryzen™ 5000 series processor with X570 chipset
- Supports triple displays. (DP, VGA, HDMI display)
- Supports PCIe Gen4, max up to 8 x USB 3.2 Gen2, 4 x USB 3.0 Gen2, 3 x USB 2.0, 4 x SATAIII, 2 x 2.5GbE, 2 x 1GbE, M.2 (M Key)
- Supports DeviceOn and Embedded Software APIs
Additional information
Processor System |
|
| Chipset | X570 |
| BIOS | AMI EFI 256 Mbit SPI |
Expansion Slot |
|
| PCIe x16 | 1 (x16 Gen4 signal from CPU; Gen3 signal form APU) |
| PCIe x4 slot 1 | 1 (x4 signal from X570), only support helf-length card and up-to PCIE x8 card |
| PCIe x4 slot 2 | 1 (x4 signal from X570), only support helf-length card and up-to PCIE x8 card |
| M.2 | 1 (2280 M key, PCIe Gen4 x4 from CPU, Gen3 x4 from APU) 1 (2230 E key, USB 2.0 and PCIe Gen4 x1 from X570) |
Memory |
|
| Technology | Supports Dual Channel DDR4 3200MHz |
| Max. Capacity | 128GB (32GB per DIMM) |
| Socket | 4 x 288 pin U DIMM |
Graphics |
|
| Controller |
|
| VGA | 1, up to 1920x1200@60Hz, 2048x1152@60Hz |
| HDMI | 1, up to 4096x2304@30Hz |
| Display Port | 1, up to 4096x2304@30Hz |
| Triple Display | VGA+DP+HDMI (5600G/5700G only) |
Ethernet |
|
| Controller | 2 x INTEL LAN i225LM, 2 x Realtek 8119i |
| Connector | 4 x RJ 45 |
SATA |
|
| Max Data Transfer Rate | 600 MB/s Max. (SATA 3.0) |
| Q'ty | 4 |

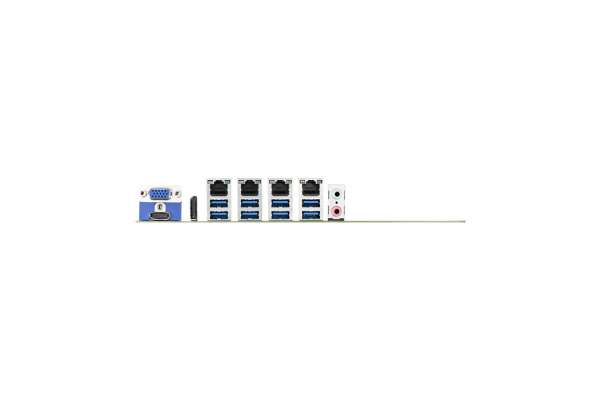

Rear I/O |
|
| Display Port | 1 |
| VGA | 1 |
| HDMI | 1 |
| Ethernet | 4 |
| USB | 8 USB 3.2 ports (4 ports from CPU/APU, 4 ports from X570) |
| Audio | 2 Jacks (colay 3 Jacks) |
Internal Connector |
|
| USB 3.0 | 4 |
| USB 2.0 | 2 for pin header and 1 for type A connector |
| Seria | COM1, COM2 with 10pin box header (RS-232/422/485) COM3456 with 40pin box header (RS-232 only) |
| SATA 3.0 | 4 |
| PS/2 (KBMS1) | 1 (6-pin header) |
| M.2 (M key) | 1 (2280 NVMe PCIex4) |
| GPIO | 1, 8bit pin header |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1 ~ 255 sec/min |
Power Requirements |
|
| Power On | +5 V 3.3 V 12 V 12 V(8-pin) -12V +5VSB GND |
| 23A 17.73A 25.3A 16.1A 0.12A 2.5A 0A | |
Environment |
|
| Temperature | Operating Non-Operating |
|
0 ~ 45 °C (TBD) -40 ~ 85 °C (-40 ~ 185 °F) 0 ~ 60 °C (TBD) |
|
| Physical Characteristics/ Dimensions | 244 x 244 mm |
| Power/ Input Mode | ATX input |
