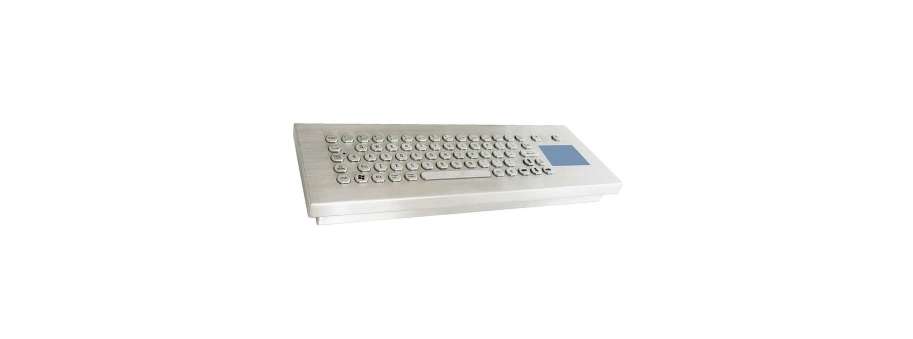

Industrial IP65 stainless steel desktop keyboard with touchpad X-key X-PP71D-S
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| X-PP712D-S | Промислова IP65 захищена настільна клавіатура X-Key, з нержавіючої сталі, 70 клавіш, кирилиця, сенсорний маніпулятор. Інтерфейс USB. DIMENSIONS: 418 x 150 x 21 mm(L x W x H) | 17 807,2 | Доступно |
- IP65 vandal proof stainless steel desk top
- Keyboard with ruggedized touchpad.
- Desk top keyboard with mounting hole.
- Keyboard with full-long travel switches.
- Electroplated titanium black panel is available.
Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or liquid and dirt
The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Can be hinged down/ for wall mounting.
Additional information
Mechanical data |
|
| Key | 70 keys, super quality brushed stainless steel |
| Key top style | Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available. |
| Key travel | 2.0mm |
| Enclosure Material | Super quality brushed stainless steel |
| Actuator/keys/Casing materials | Super quality stainless steel |
| G.W | 3.6KGs (X-PP711D-S), 3.2KGs (X-PP712D-S) |
Touchpad data |
|
| Touchpad cover |
Composite More than Lifetime 10 million strokes Mutual Capacitance sensing
|
| X/Y position sensing resolution | 40 counts/mm |
| X/Y position reporting | Relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5 VDC ±0.25V |
| Current rating (active mode) | 17 mA |
Electrical data |
|
| Supply Voltage | +5V DC +/-5% |
| Current Rating | appr. 20mA |
| Contact materials | carbon-on-gold key switch technology |
| Interface | PS2, USB available |
| OS | DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX |
Environmental adaptability |
|
| Operating temperature | -20 oC to +60 oC |
| Storage temperature | -30 oC to +70 oC |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa. |
Reliability |
|
| Certificate | RoHS Compliant, CE and FCC |
| Protection Level |
IP65(front panel) Vandal resistant IK09
|
