lte cat 6 industrial cellular router Teltonika RUT360
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| RUT36000E000 | Teltonika RUT360, компактний LTE Cat.6 роутер із Wi-Fi та 2 портами Ethernet, в комплекті антени та блок живлення. | 12 127,1 | |
| Teltonika RMS | Програма віддаленого керування обладнанням «Teltonika RMS» (ліцензія на один місяць для одного пристрою). | 189,6 | Доступно |
| 088-00270 | Комплект кріплення на DIN-рейку PR5MEC11 (для Teltonika RUT) | 213,9 | |
| 058R-00229 | Кабель живлення 4-pin із гвинтовою клемою | 568,7 | Доступно |

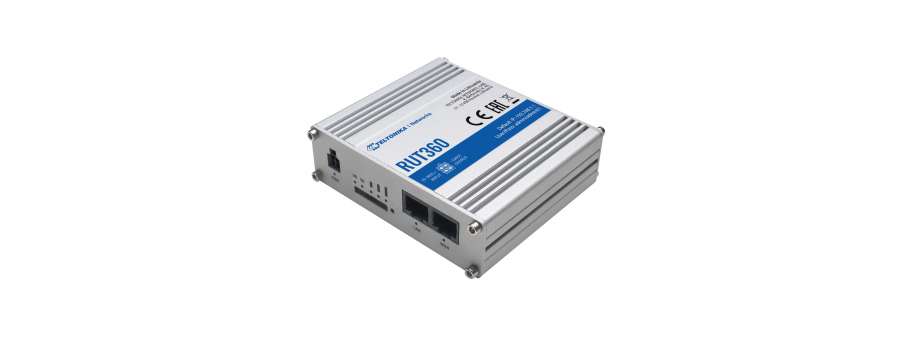

RUT360 is an updated version of our all-time best-seller RUT240. This compact industrial cellular router offers a possibility to connect to the internet using cellular, Wi-Fi, and wired networks.
RUT360 is equipped with two Ethernet interfaces, 802.11 b/g/n WiFi, and 4G LTE Cat 6 cellular module, offering data speeds up to 300 Mbps.
Unique programming, remote monitoring, and security features make RUT360 perfect for IoT and M2M applications, where secure and reliable connectivity is a must. Carrier aggregation functionality makes this compact device irreplaceable in areas or applications where cellular data speeds are limited.
- 4g lte cat 6: Cellular speeds up to 300Mbps with Carrier Aggregation
- Wifi: 802.11 b/g/n WiFi
- Compactness: Small size - easy integration anywhere
- Durability: Rugged aluminium housing
- Security: Firewall and numerous VPN services, including OpenVPN, IPsec, PPTP, L2TP & SSTP
- Rms: Compatible with Teltonika Remote Management System
Additional information
Mobile |
|
| Mobile module | 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps |
Wireless |
|
| Wireless mode | 802.11 b/g/n, 2x2 MIMO, Access Point (AP), Station (STA) |
| WiFi security | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| ESSID | ESSID stealth mode |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS OTP, MAC auth, built in customizable landing page, walled garden |
Ethernet |
|
| WAN | 1 x WAN port (can be configured as LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover |
| LAN | 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover |
System characteristics |
|
| CPU | QCA9531, MIPS 24kc, 650 MHz |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB, SPI Flash |
Input/output |
|
| Configurable I/O | 2 x Configurable digital Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA |
| Events | SMS, Email, RMS |
Power |
|
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
| Power consumption | 10.5 W max |
Physical interfaces |
|
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| I/Os | 2 x Configurable digital Inputs/Outputs on 4 pin power connector |
| Status LEDs | 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power |
| SIM | 1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Antenna | 2 x SMA for LTE, 2 x RP-SMA for WiFi |
| Power | 1 x 4 pin DC connector |
| Reset | Reboot/User default reset/Factory reset button |
Physical specification |
|
| Casing material | Aluminium housing with DIN rail mounting option |
| Dimensions (W x H x D) | 100 x 30 x 85 mm |
| Weight | 247 g |
| Mounting options | DIN rail, flat surface placement |
Operating environment |
|
| Operating temperature | -40 C to 75 C |
| Operating humidity | 10 % to 90 % non-condensing |
