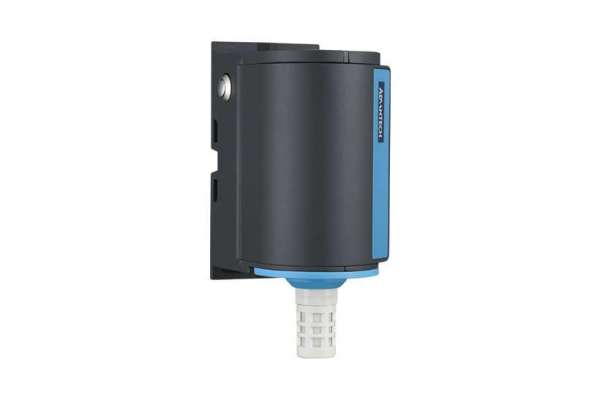

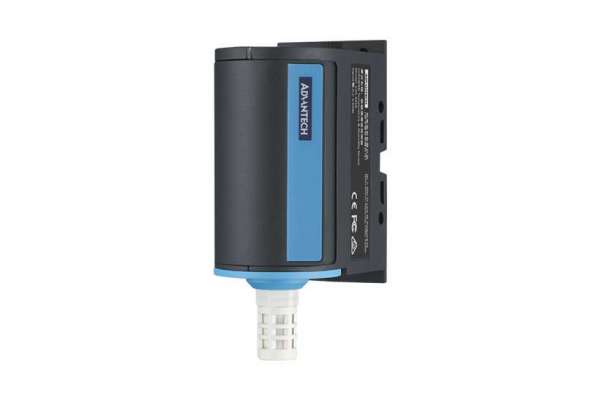

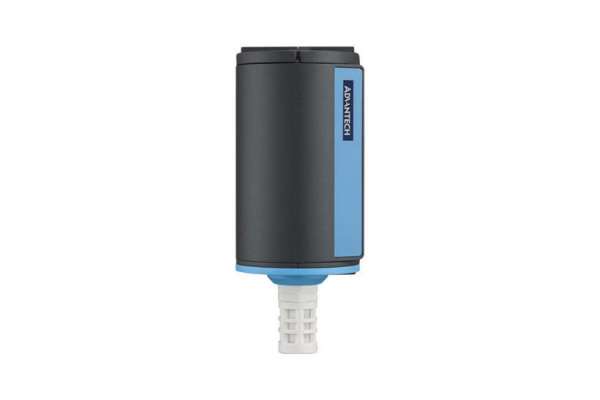

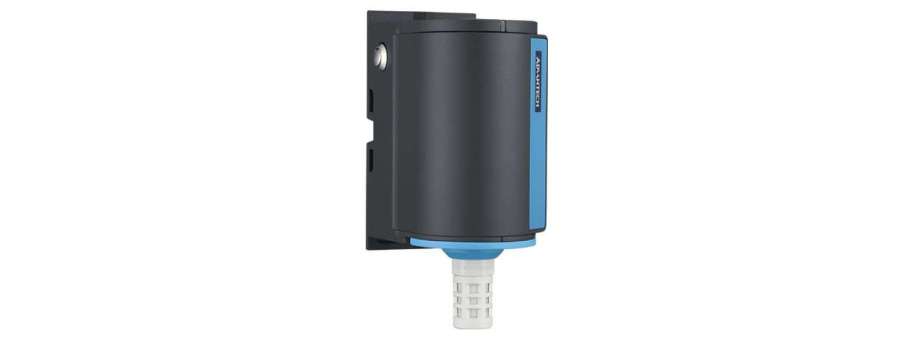

LoRaWAN Sensor Advantech EVA-2310

LoRaWAN Temperature and Humidity Sensor -20 °C to 55 °C temperature detection range Advantech EVA-2310

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
EVA-2310-NA	LoRaWAN T&H Sensor NA915	8 728,9
EVA-2310-EA	LoRaWAN T&H Sensor EU868	8 728,9
EVA-2310-TA	LoRaWAN T&H Sensor AS923	8 728,9
EVA-2310-ZA	LoRaWAN T&H Sensor AU915	8 728,9

EVA-2310 is capable to measure temperature and humidity at different kinds of application, such like office, hospital, classroom, warehouse, etc. With it’s wide range, high penastration rate LoRa connectivity, the data transmission range can up till hundred or thousand meters away. EVA-2310 can be installed directly on the walls, metal box or poles. EVA-2310 is powered by 2 AA 3.6v Li-ion batteries, battery life can up till 5 years basing on certain condition.

• LoRaWAN wireless connectivity
• -20 °C to 55 °C temperature detection range
• 0%RH to 90%RH humidity detection range
• Battery life up till 5 years@25 °C, 15mins interval setting
• Easy to deploy and maintain

Additional information

Wireless Communication
Frequency Band	EU 863-870 (MHz) / US 902-928 (MHz) / AU 915-928 (MHz) / AS 919-924 (MHz)
Spreading Factor	7~12
Transmit Power	Up to 20dBm
Topology	Star (LoRa/LoRaWAN)
Sensitivity	-148dB
General
Power Input	3.6V AA Battery *2pcs (Not included)
Battery Life	5 years@25 °C, 15mins interval setting
LED Indicator	Power on, TX, reset to default
Configuration Interface	Wireless downlink commands
IP Class	IP30
Mounting	Wall, Magnetic, Pole
Dimension (H x W x D)	112 x 51 x 71.5 mm
Certification	CE (RED), FCC, TELEC, RCM, NCC
Environment
Operating Temperature	-20°C to 55 °C
Operating Humidity	0% ~ 90% RH
Storage Temperature	-40°C ~ 85°C
Storage Humidity	0% ~ 90% RH
Temperature Sensor
Measurement Range	-20°C ~ 55°C
Accuracy	±1°C @25°C
Humidity Sensor
Measurement Range	0%RH to 90%RH
Accuracy	±4%RH @25°C
