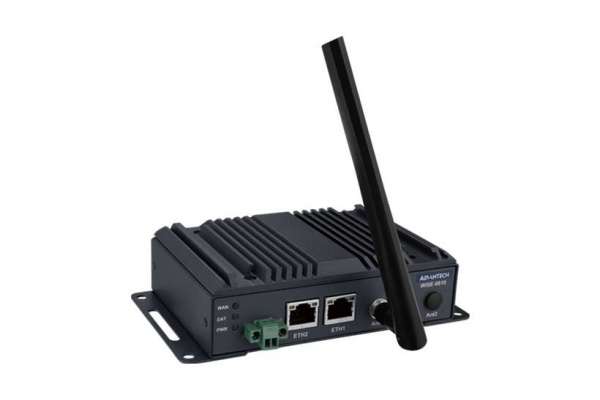

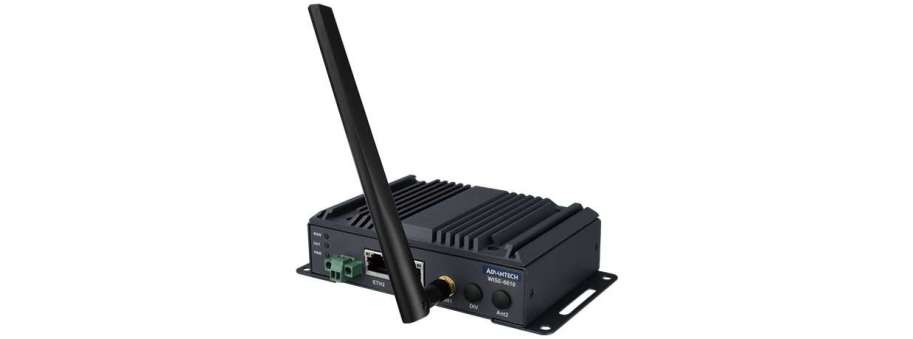

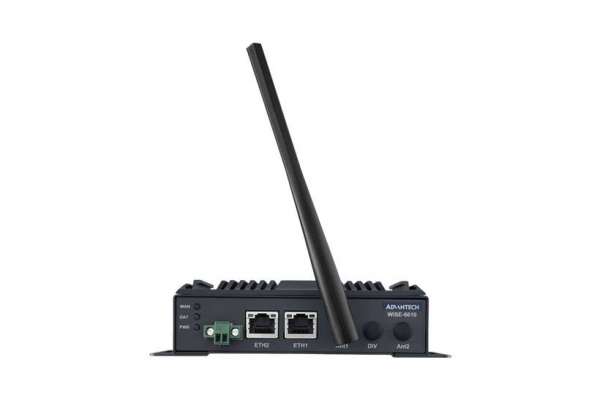

Industrial LoRa/LoRaWAN Wireless I/O Module on ARM Cortex-A8 with -40 ~ 75° t range C Advantech WISE-6610 V2
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| WISE-6610-NB | Industrial LoRaWAN Gateway w/915Hz | 29 850,8 | |
| WISE-6610-EB | Industrial LoRaWAN Gateway w/868Hz | 29 850,8 |
The WISE-6610v2 is the next generation of Industrial LoRaWAN Gateway. It has high-performance that offers reliable connectivity for industrial environments. It supports the LoRaWAN protocol for building LoRaWAN private and public networks, as well as various industrial protocols including Modbus, OPCUA, BACnet/IP, MQTT, etc. The hardware and software flexibility of the WISE-6610 provides rich features for edge intelligence systems, and also supports VPN tunneling with various protocols ensures safe communications. The WISE6610 also runs a embedded LoRaWAN network server (LNS) that can decode the LoRaWAN data directly in our device.
- Latest Semtech SX1302 gateway chipset solution, it doubles the packet processing speed
- Embedded LoRaWAN Network Server for both private and public system application
- Compatible with Multiple Network Servers like Actility, The Things Network, Chirpstack, AWS, etc
- Supports Modbus/TCP, MQTT, BACnet, OPCUA protocols
- Build-in Node-Red, LoRaWAN network server and Edgelink software (with -EL P/N) packages
- Global LoRaWAN Frequency Plans
- DIN rail and wall mounting design
- Backhaul 4G (by additional adapter)
- Embedded LoRaWAN Network Server supports max 500 nodes connections
Additional information
System |
|
| CPU | ARM Cortex-A8, 1000 MHz |
| RF Chip | Semtech SX1302 |
| Memory | 4GB DDR3 |
| Internal Storage | 16GB EMMC |
WSN Support |
|
| Standard | LoRaWAN |
| Transmit Power(dBm) | 13.94(CE)/25.17(FCC) |
| Frequency | IN865/EU868/AU915/US915/KR920/AS923/CN470 |
| ANT Connector | RP-SMA Male connector x 1 |
| Antenna Gain (dBi) | 2.23 (EU868MHz)/0.67 (915MHz)/2.9 (928MHz) |
LAN Interface |
|
| Ethernet | 10/100 Mbps, auto MDI/MDIX |
| Connector | 2 x RJ45 |
| Protection | 1.5-kV built-in magnetic isolation protection |
General |
|
| LED Indicators | PWR, DAT, WAN, ETH |
| Reboot Trigger | Reset button |
Software |
|
| Network and Routing | DHCP server, NAT/PAT, VRRP, dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP client/server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/v2c/ v3, backup routers, PPP, PPPoE, SSL, port forwarding, host port routing, Ethernet bridging, network server |
| Configuration | SSH, Web Browser |
| Network Security | HTTPS, SSH, VPN tunnels, SFTP, DMZ, firewall (IP filtering, MAC address filtering, inbound/outbound port filtering) |
| VPN tunnelling | Open VPN client and server and P2P, L2TP, PPTP, GRE, EasyVPN, IPSec with IKEv1 and IKEv2 |
| Software package | Node-Red, LoRaWAN Network Server, Edgelink (only in -EL P/N) |
Mechanics |
|
| Dimensions (W x H x D) | 150 x 37.5 x 83 mm (5.9" x 1.48" x 3.27") |
| Mounting | DIN rail, wall |
| Weight | 500g |
| Enclosure Rating | IP30 |
| SD Card | 1 x Micro SD Card Slot |
| SIM Card | 2 x Nano SIM Card Slot |
Power Requirements |
|
| Power Input | 9 ~ 36 VDC |
| Power Consumption | Typ. 3W@24V (Max.3.2W) Typ. 3W@12V (Max.4W) |
Environment |
|
| Operating Temperature | -40 ~ 75°C |
| Storage Temperature | -40 ~ 85°C |
| Operating Humidity | 10 ~ 95% RH |
