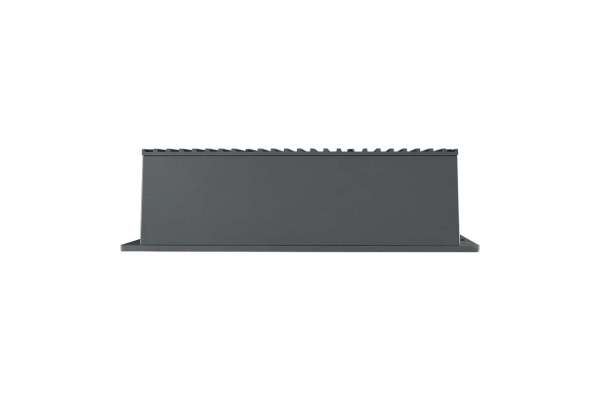

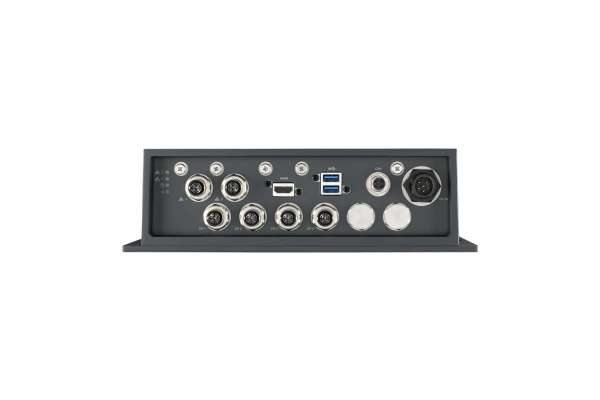

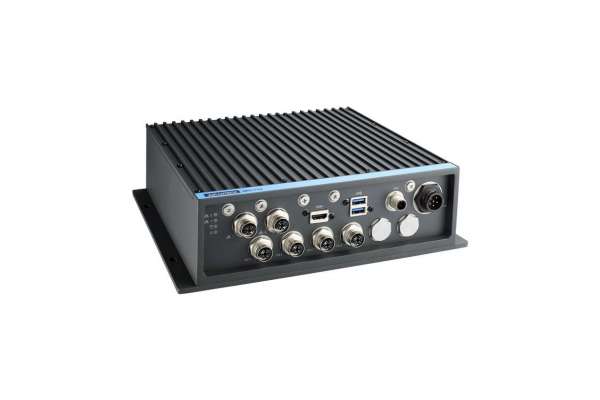

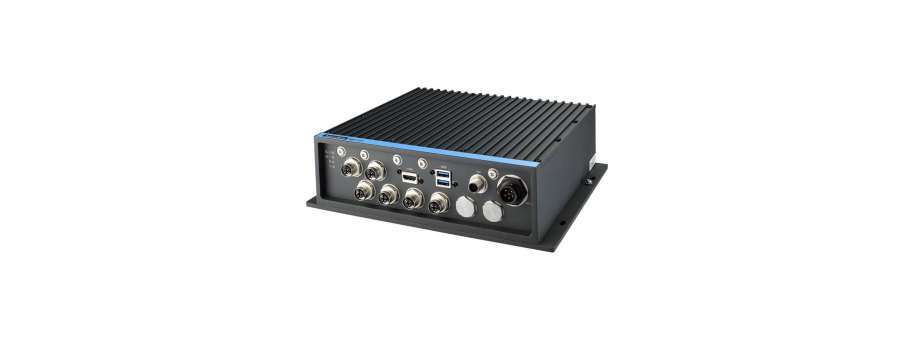

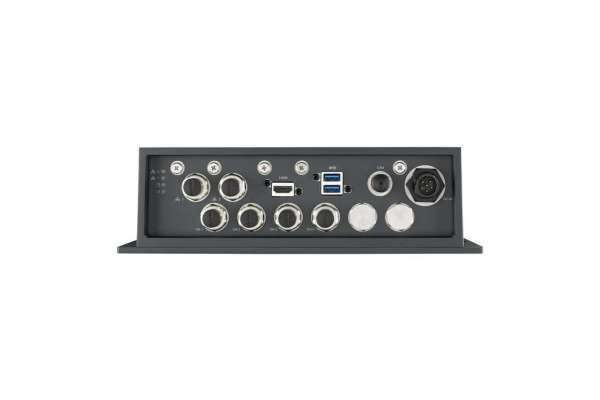

Ruggedized In-Vehicle AI Fanless System Based on NVIDIA® Jetson Orin™ NX Advantech MIC-715-OX
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| MIC-715-OX4A1 | Промисловий безвентиляторний ПК для транспорту Advantech MIC-715-OX4A1 NVIDIA Jetson Orin NX 16GB Ruggedized AI System | 186 858,0 |
- Ruggedized IP67 waterproof fanless design
- Embedded with NVIDIA® Jetson Orin™ NX up to 100 TOPS
- 2 x GbE and 4 x PoE with IEEE 802.3af compliance
- 2 x USB 3.0, 2 x CAN bus, 1 x HDMI
- Supports 2 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
- Supports Allxon 24/7 remote monitoring and OTA deployment
- e-mark compliance
Additional information
Processor System |
|
| CPU | 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| Memory | 16GB LPDDR5 |
| Flash | - |
I/O |
|
| Ethernet | 6 x 10/100/1000 Mbps (4 x PoE support, IEEE 802.3af) in M12 X-coded, 8-pin female connector |
| Display | HDMI (Max. resolution 3840 x 2160 @ 60Hz) |
| USB | External: 2 x USB 3.0 |
| CAN Bus | 2 x CAN bus |
| OTG USB | 1 x Micro USB |
Expansion |
|
| Mini PCIe | 2 x mPCIe (signal: PCIe + USB) |
| SIM | 2 x Nano SIM slot (M.2 3052 & Mini PCIe2 slot) |
| M.2 | 1 x M.2 3052 (B-Key, signal: PCIe + USB) |
Storage |
|
| M.2 | 1 x M.2 2280 M-Key (NVMe, PCIe x1) |
Power |
|
| Mode | M16, 6-pin male |
| Input power | 12/24VDC (12-6A) with ignition *Note1 |
Environment |
|
| Operating Temperature | -20 ~ 60 °C with 0.7 m/s airflow (Max-N ARM mode) |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Shock | 10G/11ms |
Mechanical |
|
| Dimensions (W x D x H) | 275 x 220 x 80 mm (10.8" x 8.7" x 3.2") |
| Weight | 4.5 kg |
| Installation | Desktop |
BSP |
|
| Jetpack | Above 5.1 |
| Certifications | CB/UL/CE/FCC/CCC (No RED certification) |
