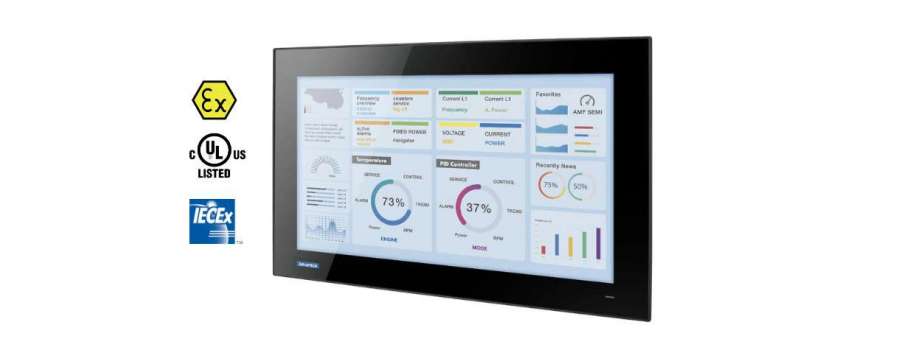

IP66 front panel system Advantech SPC-618WE

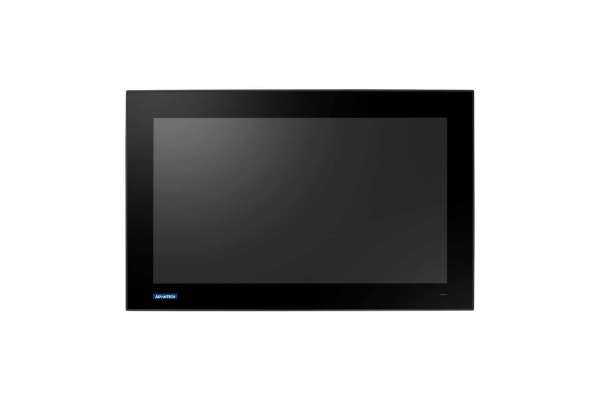

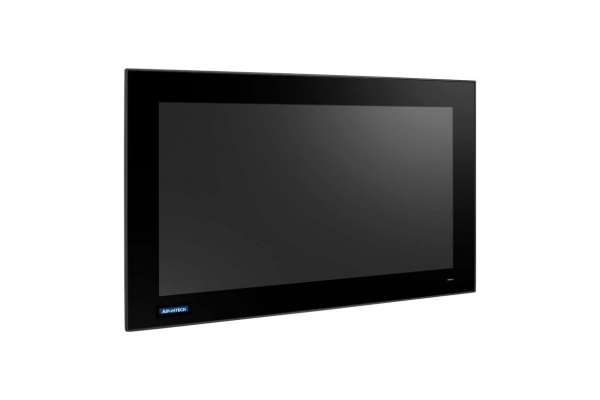

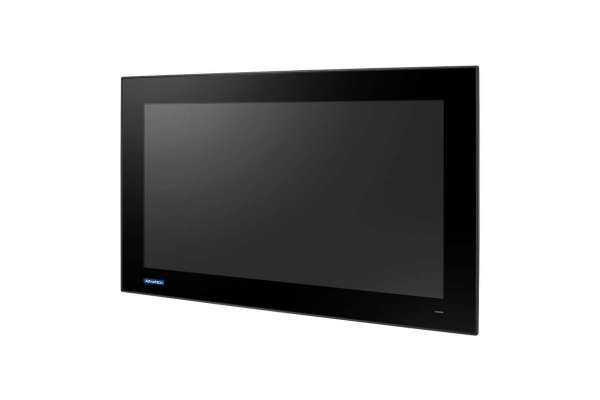

18.5” FHD TFT LED LCD Touch Panel PC on Intel® Raptor Lake-U Platform with IECEx/ATEX, Explosion-Proof certification Advantech SPC-618WE

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
SPC-618WE-PUD75A	SPC-618WE-PUD; Raptor Lake-U i7, 32GB, 256G	351 943,0

Advantech’s SPC-618WE Explosion-Protected Touch panel computer, is powered by Intel Raptor Lake-U Intel Core processors. With its fanless design. SPC-618WE delivers high performance that not simply meets customer demands for a daily-operation control panel, but a genuine Industry 4.0-era-tailored Industrial PC that features bountiful I/Os including two USB 3.2 ports, one USB Type-C port, expansions with sTLC Solid State Drive and WiFi module that support for ultra speed data transmission. The system was both IP66 and IECEx/ATEX and Class I Division Explosion-Protected certified, therefore is suitable for hazardous environment.

• Industrial-grade 18.5" FHD TFT LCD with 50K lifetime and LED backlight
• 13th Gen. Intel® Core™ i7-1365URE deca-core processor
• Built in single DDR5 4800 RAM with 32GB capacity
• Built in sTLC SSD of 256GB with extreme longevity and reliability
• Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
• Specialized enhanced impact proof touchscreen with PCAP touch control and IP66-rated front panel
• Support TPM2.0 hardware security
• IECEx/ATEX explosion proof certification for Zone 2/22
• Class I Division II explosion proof certification

Additional information

General
BIOS	AMI UEFI
Certification	BSMI, CCC, CE, FCC Class A IECEx/ATEX Zone 2/22 explosion proof certification Class I Division II explosion proof certification
Cooling System	Fanless design
Dimensions (W x H x D)	479.3 x 300.3 x 80 mm
Enclosure	Front bezel: Die cast aluminum alloy Back housing: Die cast aluminum alloy
Mounting	Panel Mount
OS Support	Windows 11 LTSC
Security	TPM 2.0 (built-in)
Power Consumption	Typ. 46W; Max. 82W
Power Input	19 - 24 VDC ± 15%
Watchdog Timer	15-255 sec (system)
Weight (Net)	6KG
System Hardware
CPU	13th Gen. Intel® Core™ i7-1365URE 1.7 GHz Deca-core processor
Memory	Single DDR5 4800 SO-DIMM RAM 32GB
LAN	2 x 2.5 GbE with Intel® i226
Storage	1x M.2 2280 sTLC Solid State Drive 256 GB (Baseline) sTLC Solid State Drive 512 GB (Option for custom model*) 1 x 2.5 SATA sTLC Solid State Drive 256 GB (Option for custom model*) sTLC Solid State Drive 512 GB (Option for custom model*

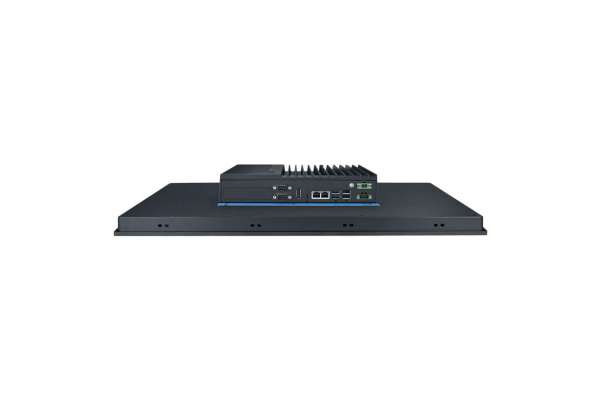

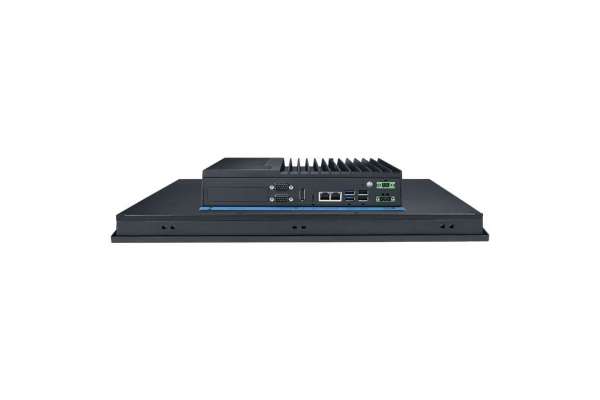

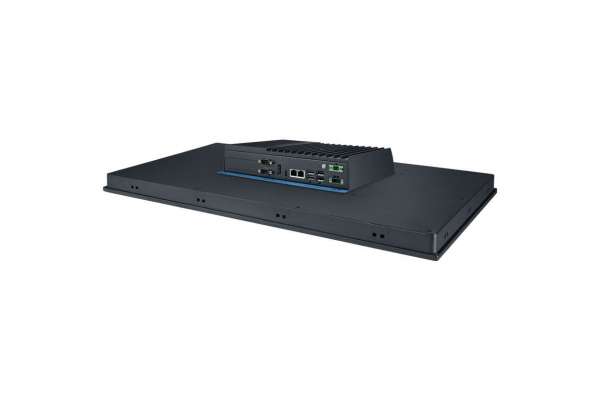

I/O	1 x Displayport 1.4a (Video output) 1 x USB Type-C (USB 3.2 Gen.2, DP 1.4a, 5V w/ 3A max) 2 x USB 3.2 (Gen.1) 2 x USB 2.0 2 x RS-232/422/485
LCD Display
Display Type	FHD TFT LED LCD
Display Size	18.5"
Max. Resoltuion	1920 x 1080
Max Colour	16.7M
Luminance cd/m2	350 cd/m2
Viewing Angle (H/V°)	178°/178°
Backlight Life	50,000 hrs
Contrast Ratio	1000:1
Touchscreen
Light Transmission	Above 85%
Resolution	Linearity
Type	PCAP touch screen
Environment
Humidity	95% RH @ 40°C, non-condensing
Ingress Protection	IP65-rated front panel
Operating Temperature	-20~60 °C (-4~140 °F) (w/o air flow)
Storage Temperature	-30~70 °C (-22~158 °F)
Vibration Protection	With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
